Installing the SK 100 G4
34

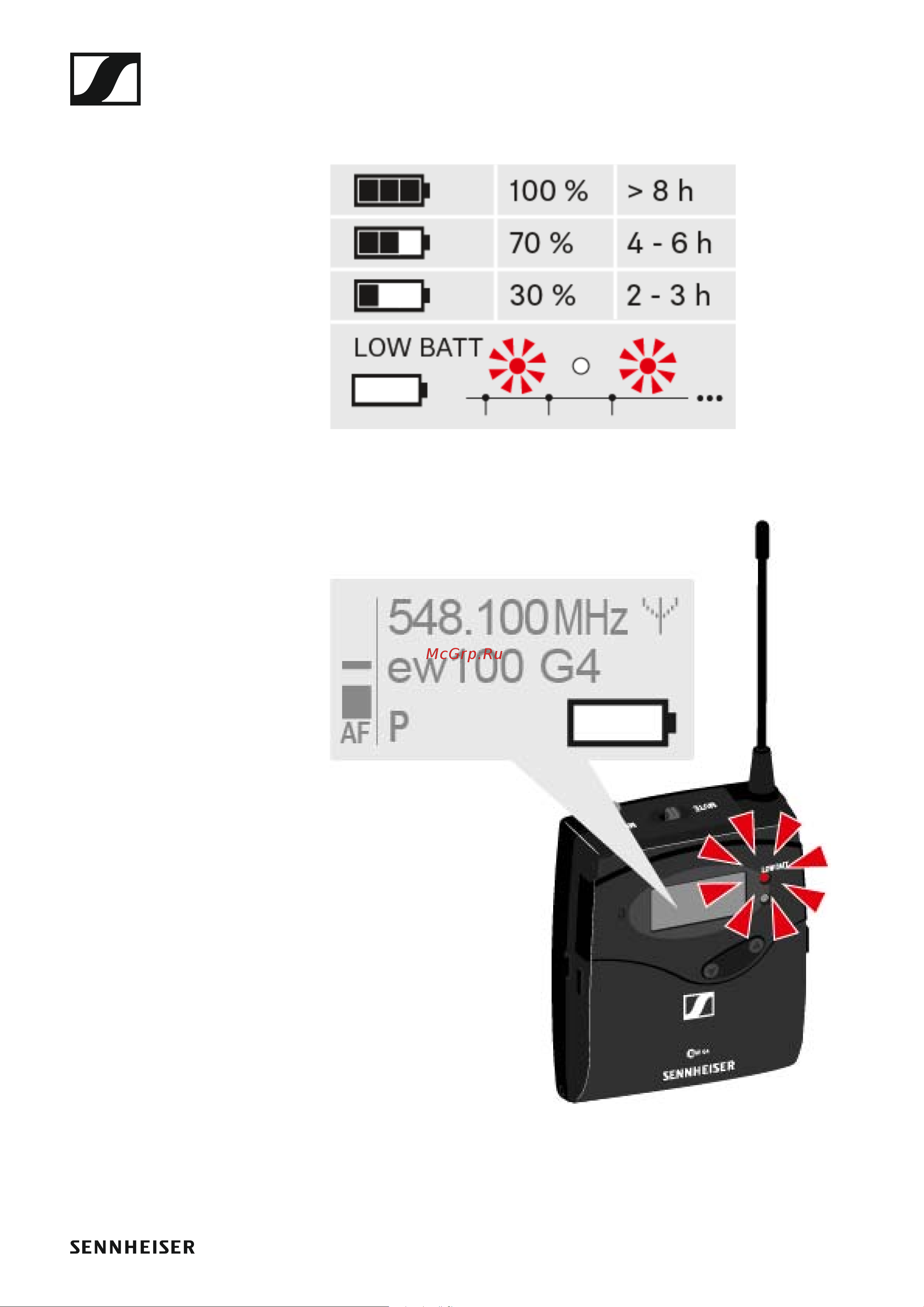

Battery status
Charge status of the batteries:
►
Charge status is critical (LOW BATT):
►
