Sennheiser EW 100 G4-ME3-A [23/129] Creating a data network

Installing the EM 100 G4

Creating a data network

You can cascade multiple EM 100 G4s to a multi-channel system using the

two DATA RJ-10 interfaces (up to 12 receivers). You can perform a frequen-

cy setup for the entire multi-channel system via this data network using the

Easy Setup function.

The setup only works when all of the receivers have the same frequency

range.

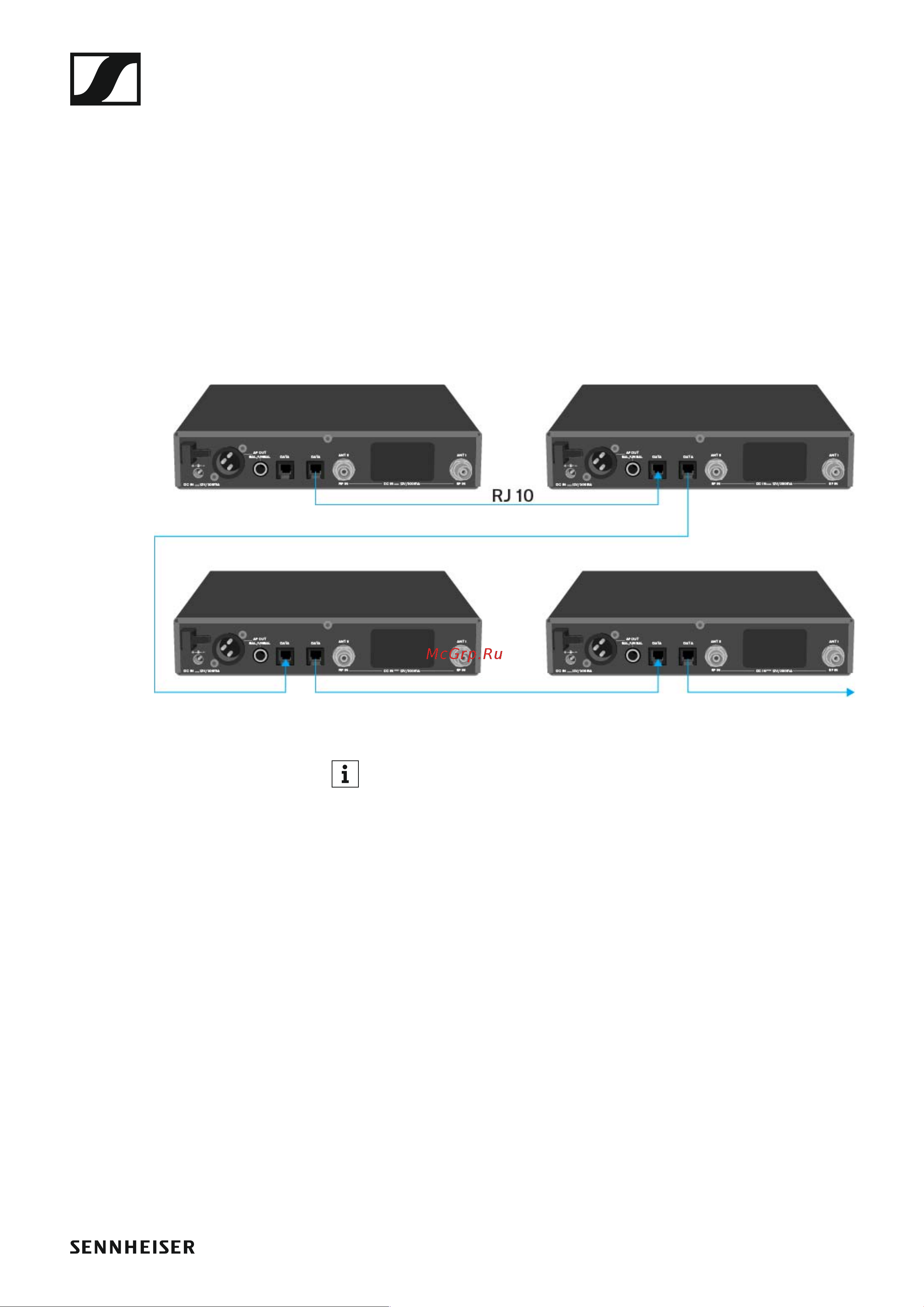

▷ Connect the receivers to create a multi-channel system using the sup-

plied RJ-10 cables as shown in the diagram.

Both RJ-10 sockets are interchangeable. There is no set order for ca-

bling.

►

You can find more information about the Easy Setup function under

“Easy Setup menu item”.
