Installing the ASA 214
42
Information on antenna amplifiers and cable lengths

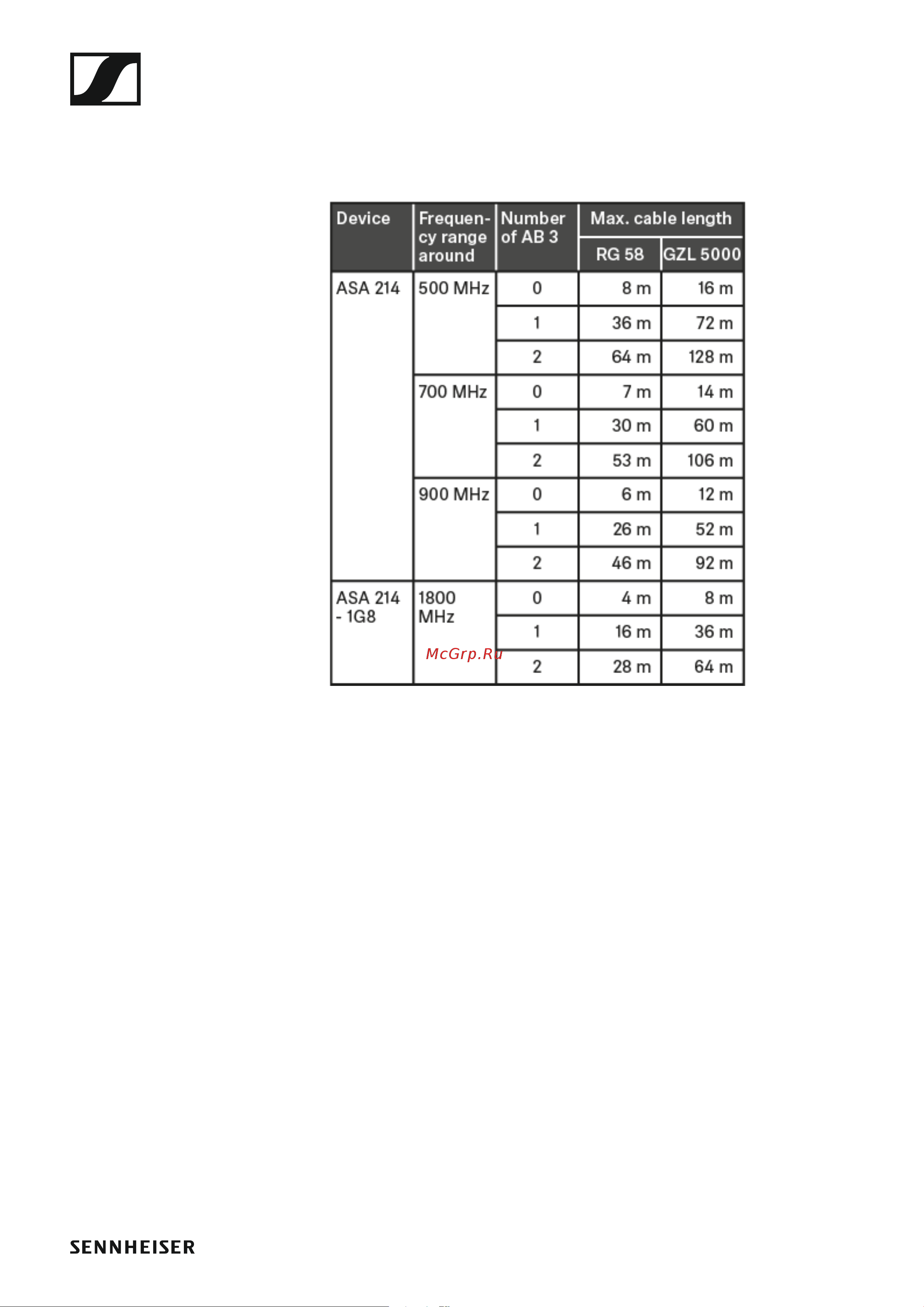

The following table shows which cable lengths require the use of the AB 3
antenna amplifier as well as the maximum recommended cable lengths.
