Boss EQ-200 [4/16] Rear panel

Panel Descriptions

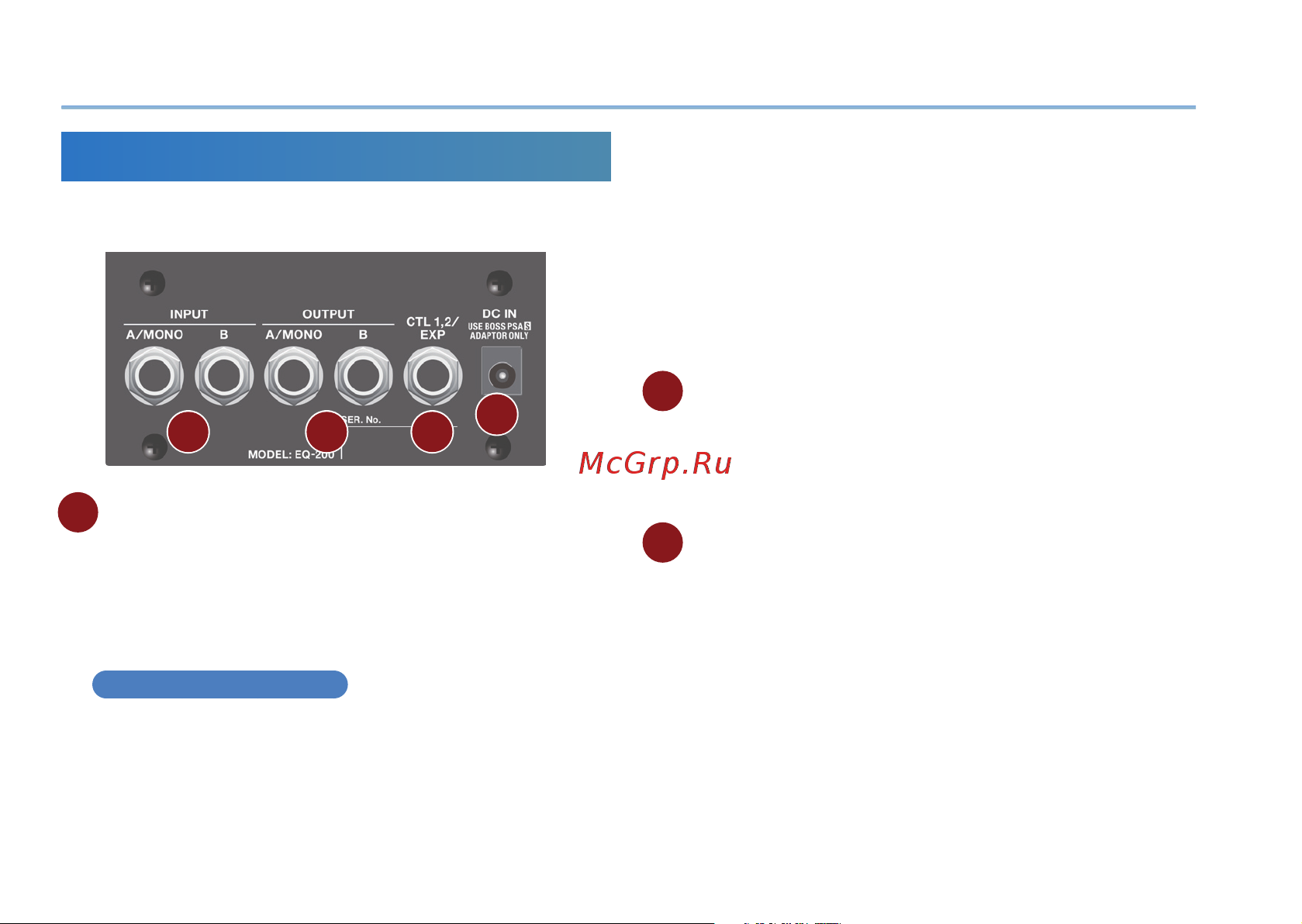

Rear Panel (Connecting Your Equipment)

* To prevent malfunction and equipment failure, always turn down the

volume, and turn o all the units before making any connections.

A B C

INPUT (A/MONO, B) jacks

Connect your guitar, bass, or eect unit here.

Use the A and B jacks if connecting an eect unit that

has stereo output. Use only the A jack if using this unit

in mono.

Turning On/O the Power

The INPUT A jack also operates as the power switch.

The power turns on when you insert a plug into the

INPUT A jack.

When powering up

Power-up equipment such as your guitar amp last.

When powering down

Power-down equipment such as your guitar amp rst.

* Before turning the unit on/o, always be sure to turn the volume

down. Even with the volume turned down, you might hear some

sound when switching the unit on/o. However, this is normal and

does not indicate a malfunction.

B OUTPUT (A/MONO, B) jacks

Connect this jack to your amp or monitor speakers.

Use only the OUTPUT A jack if using this unit in mono.

Even sound that is input in stereo is output in mono.

C CTL 1, 2/EXP jack

Using the jack as CTL 1/2

You can connect a footswitch (sold separately: FS-5U,

FS-6, FS-7) and use it to switch memories or channels

(p. 7).
