Panel Descriptions

Using the jack as EXP

You can connect an expression pedal (sold separately:

EV-30, Roland EV-5, etc.) and use it to control the

volume of the eect sound.

* Use only the specied expression pedal. By connecting any other

expression pedals, you risk causing malfunction and/or damage

to the unit.

D DC IN jack

An AC adaptor (sold separately: PSA-S series) can be

connected to this jack.

* Use only the specied AC adaptor (sold separately: PSA-S series)

and plug it into an AC outlet of the correct voltage.

* If the AC adaptor is connected while power is on, the power supply

is drawn from the AC adaptor.

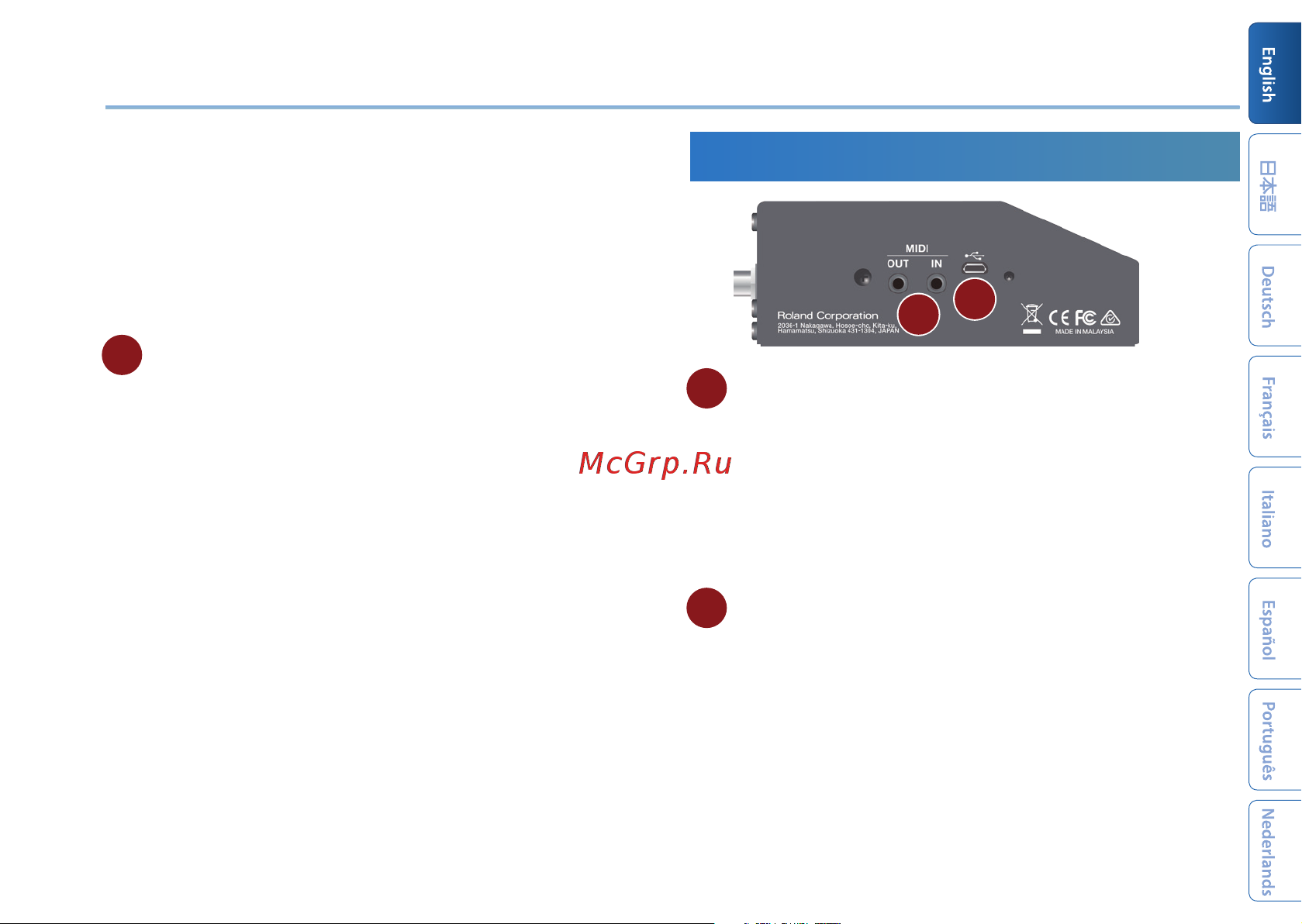

Side Panel (Connecting Your Equipment)

MIDI jacks

Use a TRS/MIDI connecting cable (sold separately:

BMIDI-5-35) to connect an external MIDI device. You can

use an external MIDI device to switch the memories of

this unit.

* Do not connect an audio device here. Doing so will cause

malfunctions.

F USB port

Connect your computer using a commercially available

USB cable that supports USB 2.0.

* Do not use a micro USB cable that is designed only for charging a

device. Charge-only cables cannot transmit data.

* This is used only for program updates.
