MQX equalizers use “Q” enhanced Wein bridge filters and interleaved summing for constant

“Q”, low ripple, and minimum filter interaction. A servo-balanced output stage simulates a

true transformer output to allow interfacing with virtually any type of load.

Connectors & Cables

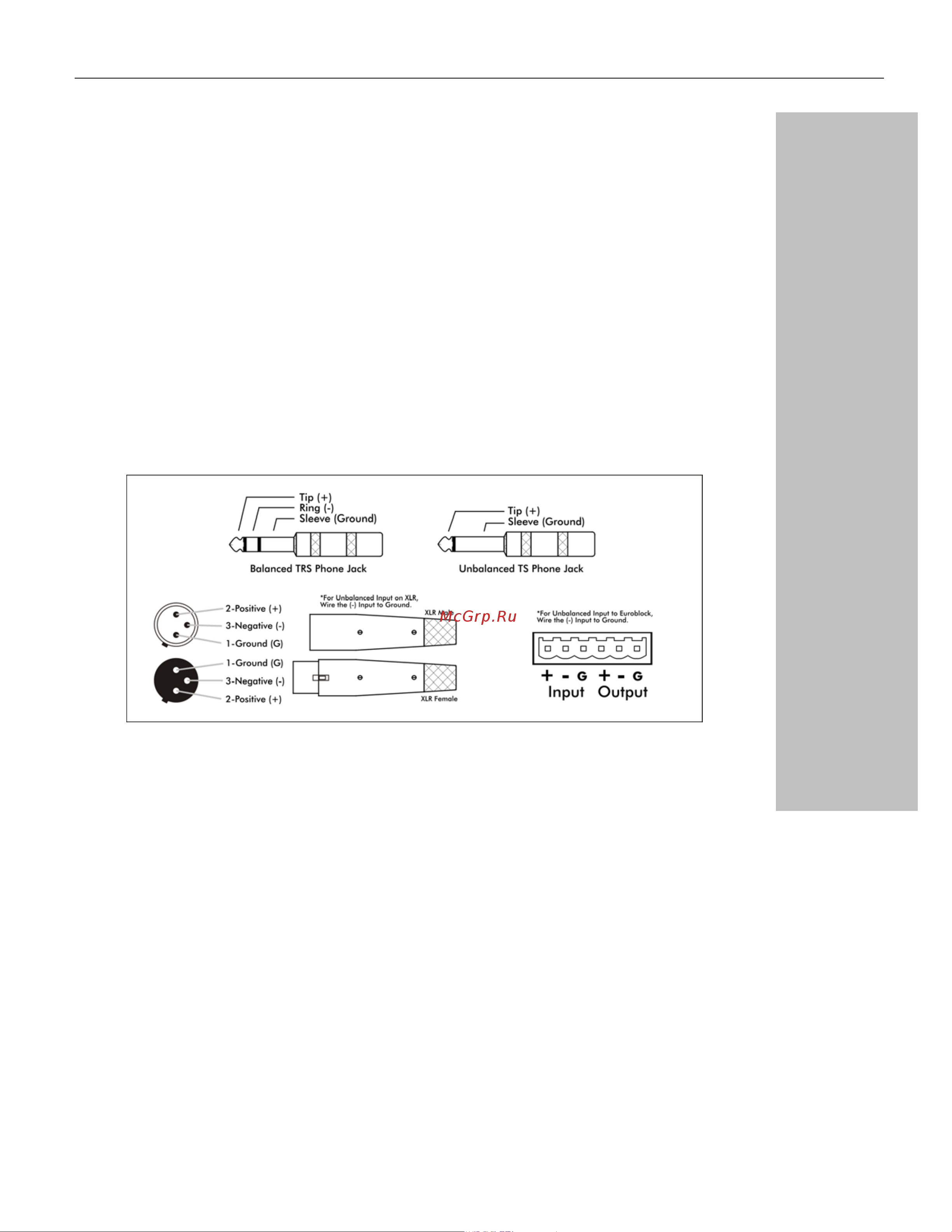

Your MQX series equalizer is provided with three different connector types:

1. 1/4 inch stereo phone jacks (TRS)

2. Three pin XLR type connectors

3. Euroblock screw terminal connectors

These connectors will allow interfacing to most professional audio products. Inputs as well

as servo-balanced outputs can be used balanced or unbalanced. When possible, balanced

connections are recommend between all components in your system, as this eliminates

ground-loop induced hum and noise.

Unbalanced Connections and Grounding

If you must use unbalanced connectors, the negative lead of the connector should be tied to

the ground lead. Using unbalanced connections could result in chassis ground-loop noise.

Altering the signal/chassis ground relationship in equipment connected to your MQX unit

may eliminate the noise.
