CONTROLS AND CONNECTIONS

9 | PreSonus 2007



Mid Band Q. Sets the frequency range for the Mid Band EQ. The Frequency knob sets the center of

this range.



High Band Frequency. Sets the Center Frequency of the “Q” or frequency range width of the High

Band EQ. You can adjust the center frequency from 2 to 20 kHz.



High Band Peak Button. By default, the High EQ is set as a shelving EQ. When the peak button is

enabled, the High Band EQ becomes a standard peak equalizer with a fixed Q of 0.7.



High Band Gain. Sets the Gain attenuation or boost of the Q. The level of the center frequency can be

set between -10 and +10 dB.

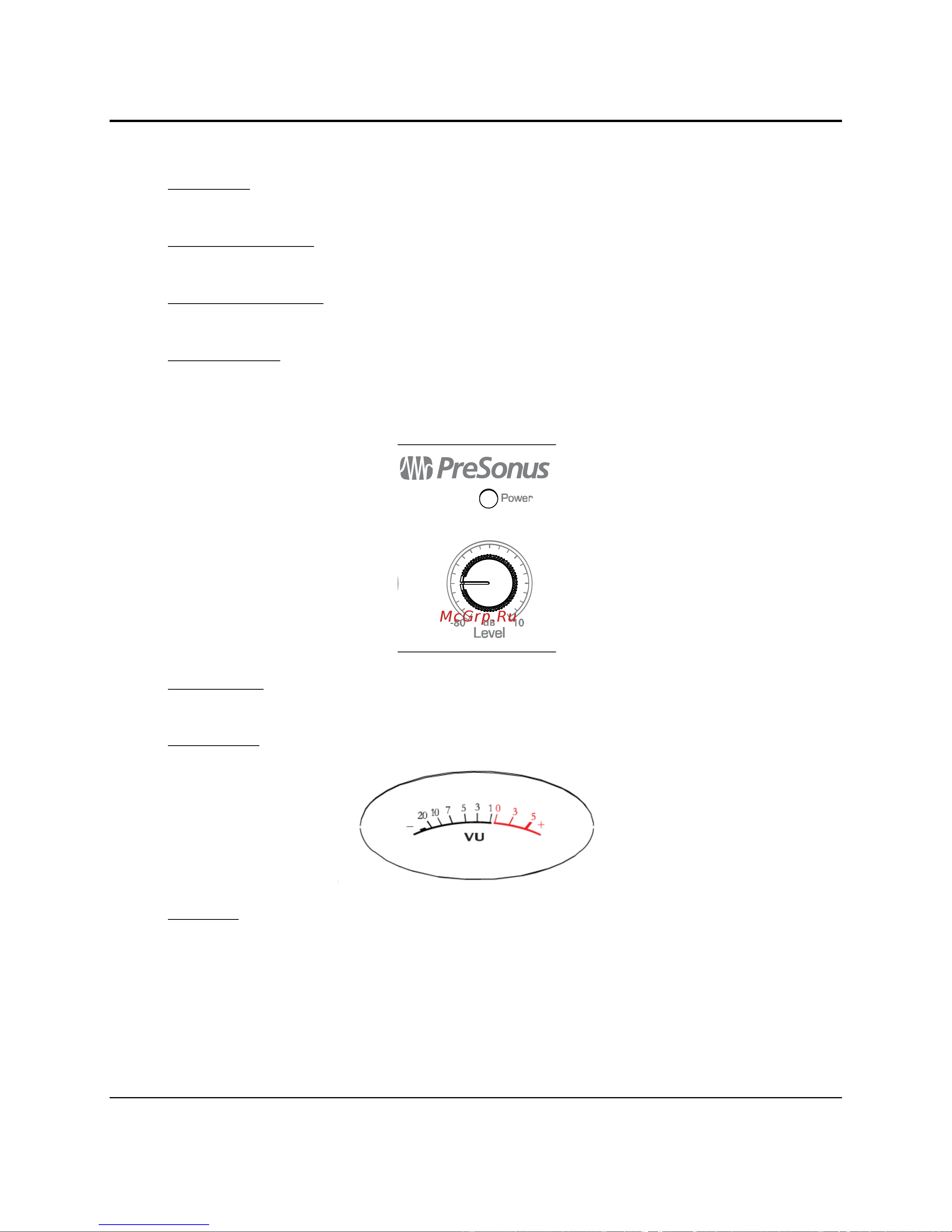

2.1.4 Master and VU Meter



Power Button. This button turns your Studio Channel On and Off. When your Studio Channel is

powered on, this button will illuminate.



Master Level. Adjust the overall output volume of the Studio Channel



VU Meter. The analog VU meters the output level of your Studio Channel. When the GR>Meter

button in the compressor section is enabled, the VU meter will show the amount of Gain Reduction.
