CONTROLS AND CONNECTIONS

10 | PreSonus 2007

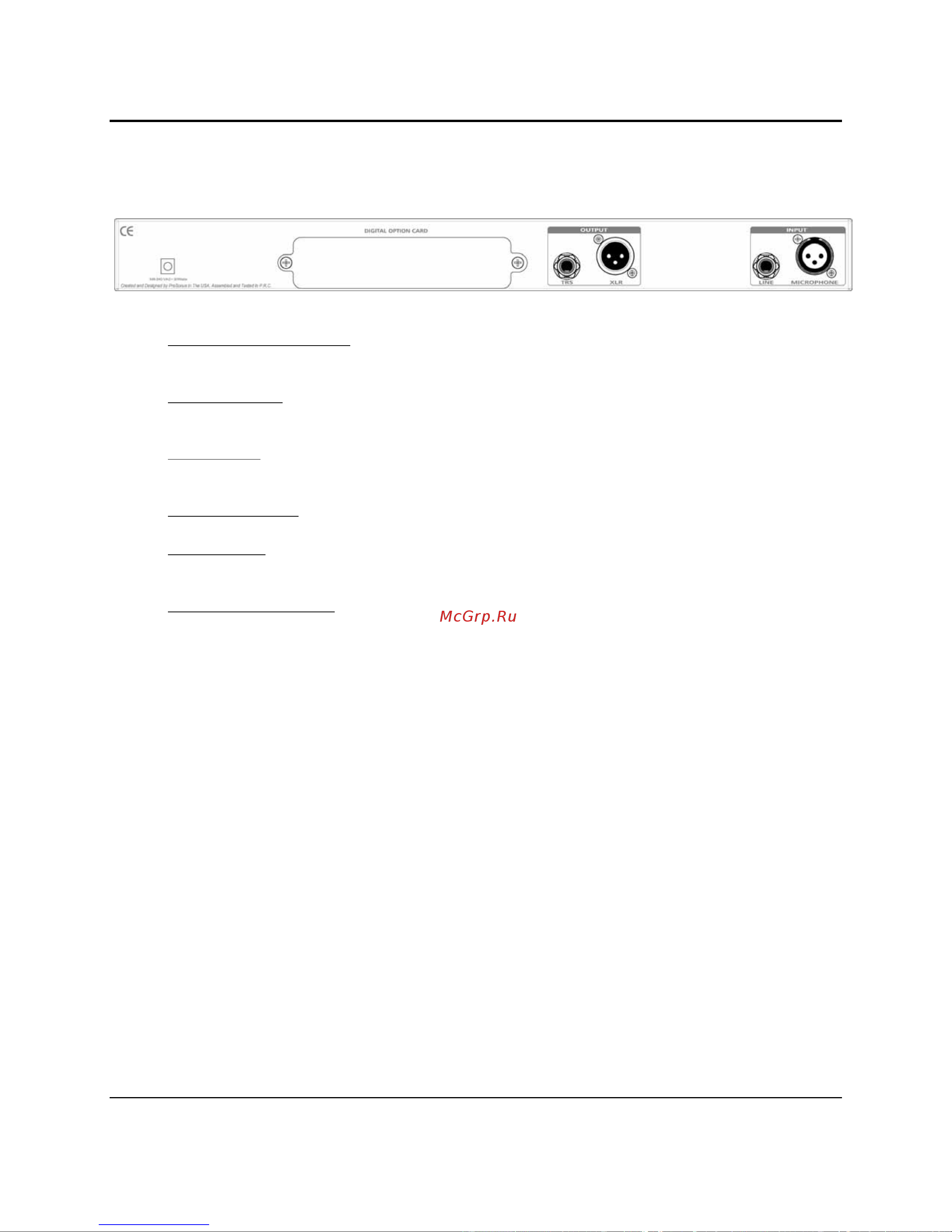

2.2 BACK PANEL LAYOUT

 Microphone Pre-Amplifier.

Your Studio Channel is equipped with a custom designed PreSonus

microphone preamplifier for use with all types of microphones including dynamic, condenser and ribbon.

 Line Level Input.

The Studio Channel also features a balance line level input to connect synthesizers,

amp modelers, etc.

 Main Outputs.

The Studio Channel features both a balanced TRS and an XLR output for greater ease

of connectivity.

 Digital Option Card.

This is the expansion slot for your optional Studio Channel digital expansion card.

 Power Switch.

Push the top part of the switch to turn your Studio Channel on ( | ). Push the bottom

part of the switch to turn your Studio Channel off ( O ).

 Power Supply Connector.

This is the connection for your external power supply.
