able

ength:

onnector:

-P

XLR

unctions:

ff and

olum

Volulme

Knob

Indicator/

Green

Indicator/

Red

4-PIN

XLR

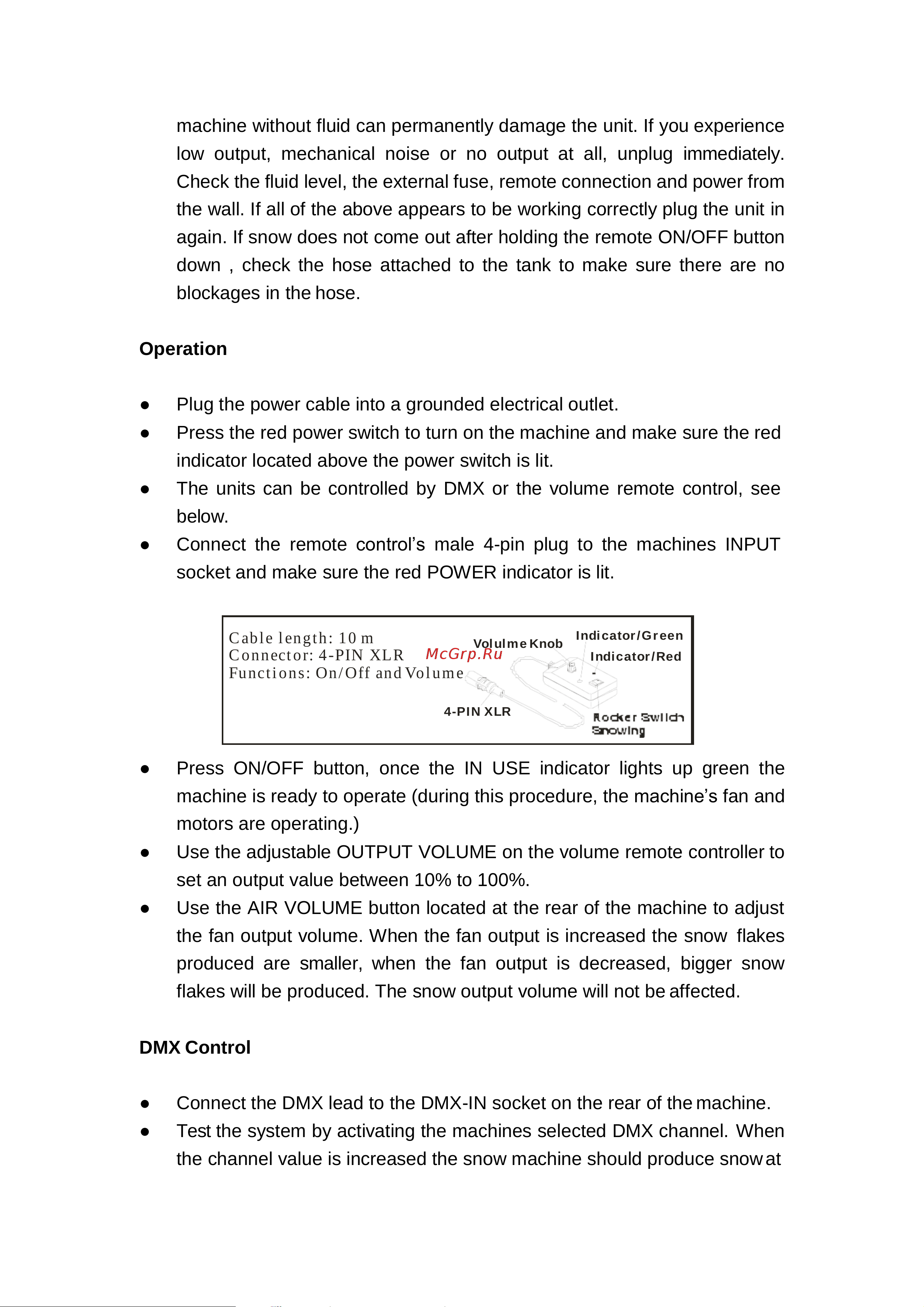

machine without fluid can permanently damage the unit. If you experience

low output, mechanical noise or no output at all, unplug immediately.

Check the fluid level, the external fuse, remote connection and power from

the wall. If all of the above appears to be working correctly plug the unit in

again. If snow does not come out after holding the remote ON/OFF button

down , check the hose attached to the tank to make sure there are no

blockages in the hose.

Operation

● Plug the power cable into a grounded electrical outlet.

● Press the red power switch to turn on the machine and make sure the red

indicator located above the power switch is lit.

● The units can be controlled by DMX or the volume remote control, see

below.

● Connect the remote control’s male 4-pin plug to the machines INPUT

socket and make sure the red POWER indicator is lit.

● Press ON/OFF button, once the IN USE indicator lights up green the

machine is ready to operate (during this procedure, the machine’s fan and

motors are operating.)

● Use the adjustable OUTPUT VOLUME on the volume remote controller to

set an output value between 10% to 100%.

● Use the AIR VOLUME button located at the rear of the machine to adjust

the fan output volume. When the fan output is increased the snow flakes

produced are smaller, when the fan output is decreased, bigger snow

flakes will be produced. The snow output volume will not be affected.

DMX Control

● Connect the DMX lead to the DMX-IN socket on the rear of the machine.

● Test the system by activating the machines selected DMX channel. When

the channel value is increased the snow machine should produce snow at
