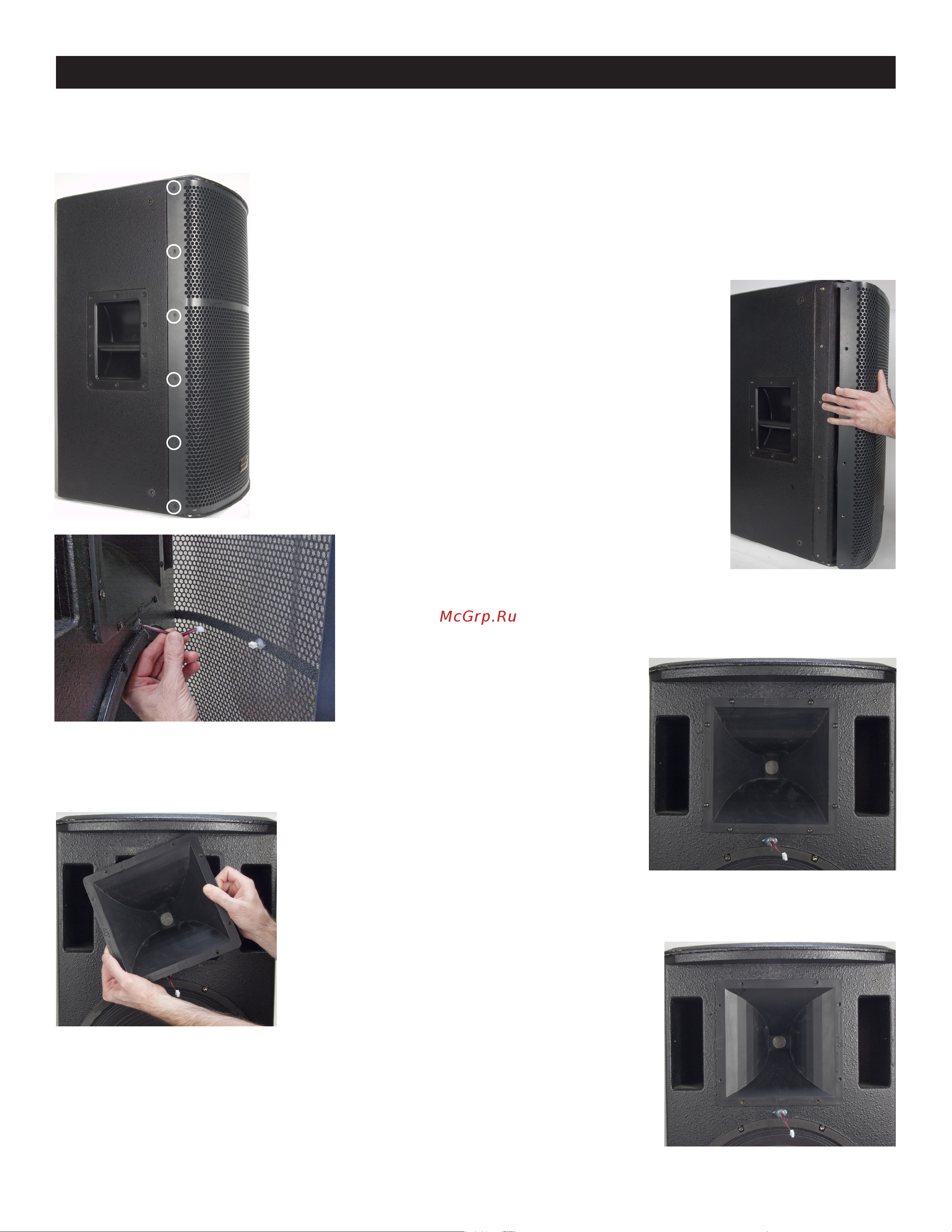

LT-15A Horn Rotation

The DLT-15A is equipped with a rotatable high frequency horn. The horn can be turned 90 degrees

when a diernet dispersion is desired; i.e. when rigging the speaker horizontally. Carefully follow the

directions below to rotate the horn.

1. Start by removing the 6 phillips screws located on each side, that hold

the grille in place.

2. Carefully remove the grille from the speaker.

DO NOT remove it completely! Seperate it

enought to disconnect the Clip LED wire. See

Step 3.

3. Slip your hand in between the grille and speaker and discon-

nect the Clip LED wire.

4. Once you have disconnected the wire, remove the grille com-

pletely to access the horn. Unscrew and remove the 8 phillips

screws that hold the horn in place.

5. After unscrewing and removing the screws, carefully and gently pull

the horn out of the housing (not all the way) and rotate the horn 90 de-

grees.

6. Once you have rotated the horn, replace the scews that secure the

horn, connect the clip LED wire, and secure the grille into place.
