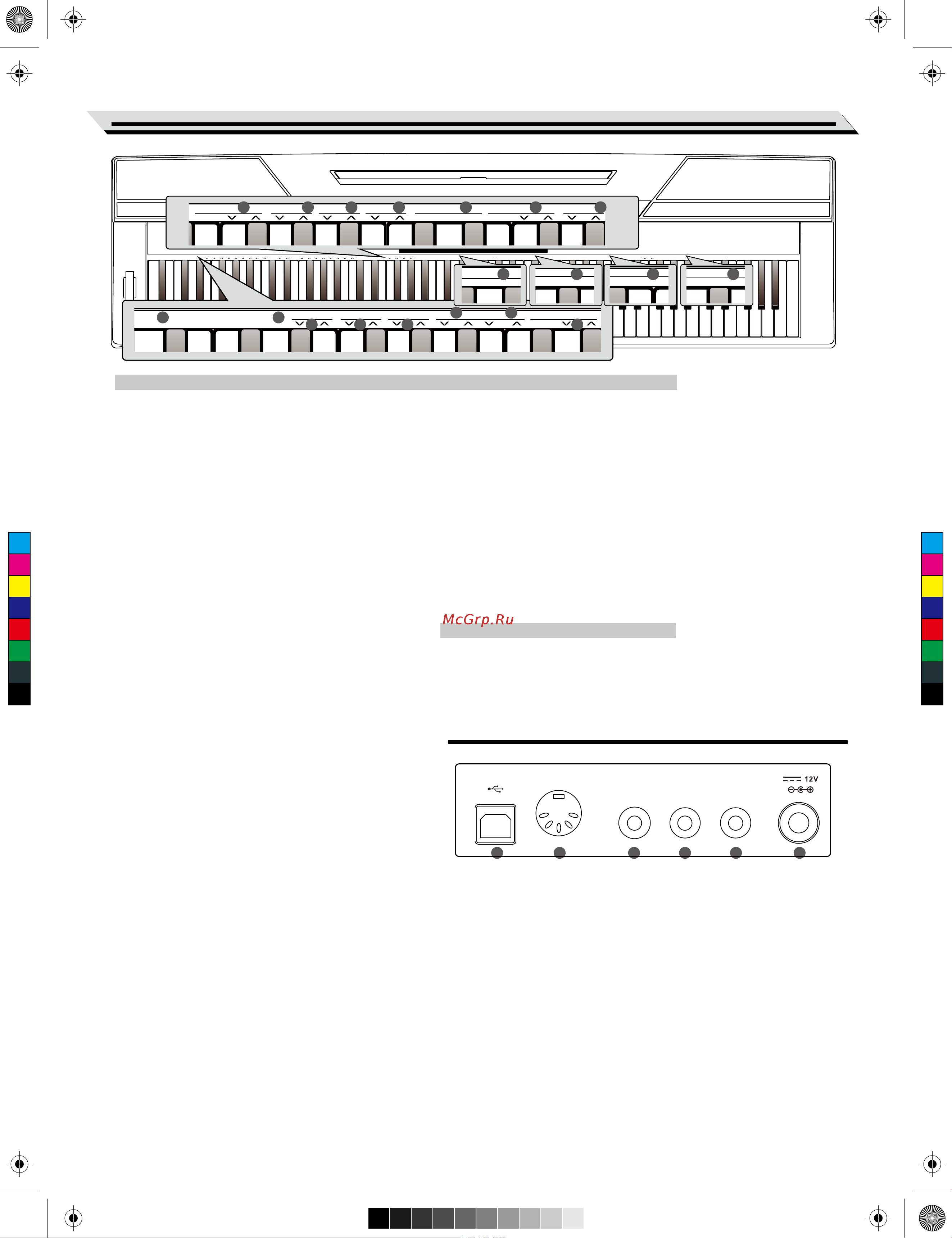

Panel Description
Rear Panel
When the [SHIFT] button is pressed：
22. [BEEP] Key
Turn the prompt tone on or off.
23. [PEDAL RESONANCE] Key
Turn the pedal resonance on or off.
24. [TOUCH] Keys
Set an appropriate touch sensitivity level.
25. [TUNE] Keys
Adjust the tune value.
26. [OCTAVE] Keys
In TWINOVA mode, adjust the octave value.
27. [SCALE TYPE] Keys
In SCALE mode, select different scale types.
28. [SCALE ROOT] Keys
In SCALE mode, set the root note of scale.
29. [REVERB] Keys
Turn the reverb effect on/off, or select the
desired reverb effect type.
30. [CHORUS] Keys
Turn the chorus effect on/off, or select the
desired chorus effect type.
31. [EQ] Keys
Select the desired EQ effect type.
32. [DUET] Keys
Select the desired duet effect type.
33. [HARMONY] Keys
Select the desired harmony effect type.
34. [MELODY OFF] Keys
In the SONG mode, press “L”/”R” to mute/
activate left or right-hand part, allowing each
part to be practiced separately.
When the [SHIFT] button is pressed：
35. [METRONOME] Keys
Set the metronome type.
36. [ACCOMP VOLUME] Keys
Set the accompaniment volume value.
37. [TEMPO] Keys
Set the tempo value.
38. [STYLE] Keys
Select the desired style.
39. [SONG] Keys
Select the desired song.
In the MIDI controller edit mode:
40. [MIDI] Keys
In the MIDI edit mode, set parameter value which
related to MIDI controllers.
41. USB Terminal
Connect to a computer.
42. MIDI OUT Jack
Connect an external MIDI IN
device.
43. SUSTAIN Jack
Connect a sustain pedal.
44. AUX IN Jack
Connect any external audio
source, such as an MP3 or CD
player.
45. AUX OUT Jack
Connect an audio equipment.
46. DC 12V
Connect DC 12V power adaptor.
05
41 42 43 44 45
46
ON/OFFTYPE ROOT
REVERB
BEEP TOUCH TUNE OCTAVE SCALEPEDAL
RESONANCE
3
4
5
TEMPO
4
56
STYLE
METRONOME
ACCOMP
LOFF R
MELODY OFFEQ DUET HARMONYCHORUS
VOCALON/OFF
4
56
SONG
3
4
5
MIDI
24
27
26
28
29
30 31 32 33 34 35 36
37 38
23
22
25
39 40
USB MIDI OUT SUSTAIN AUX IN AUX OUT
