Medeli SP4000 [8/32] Connections

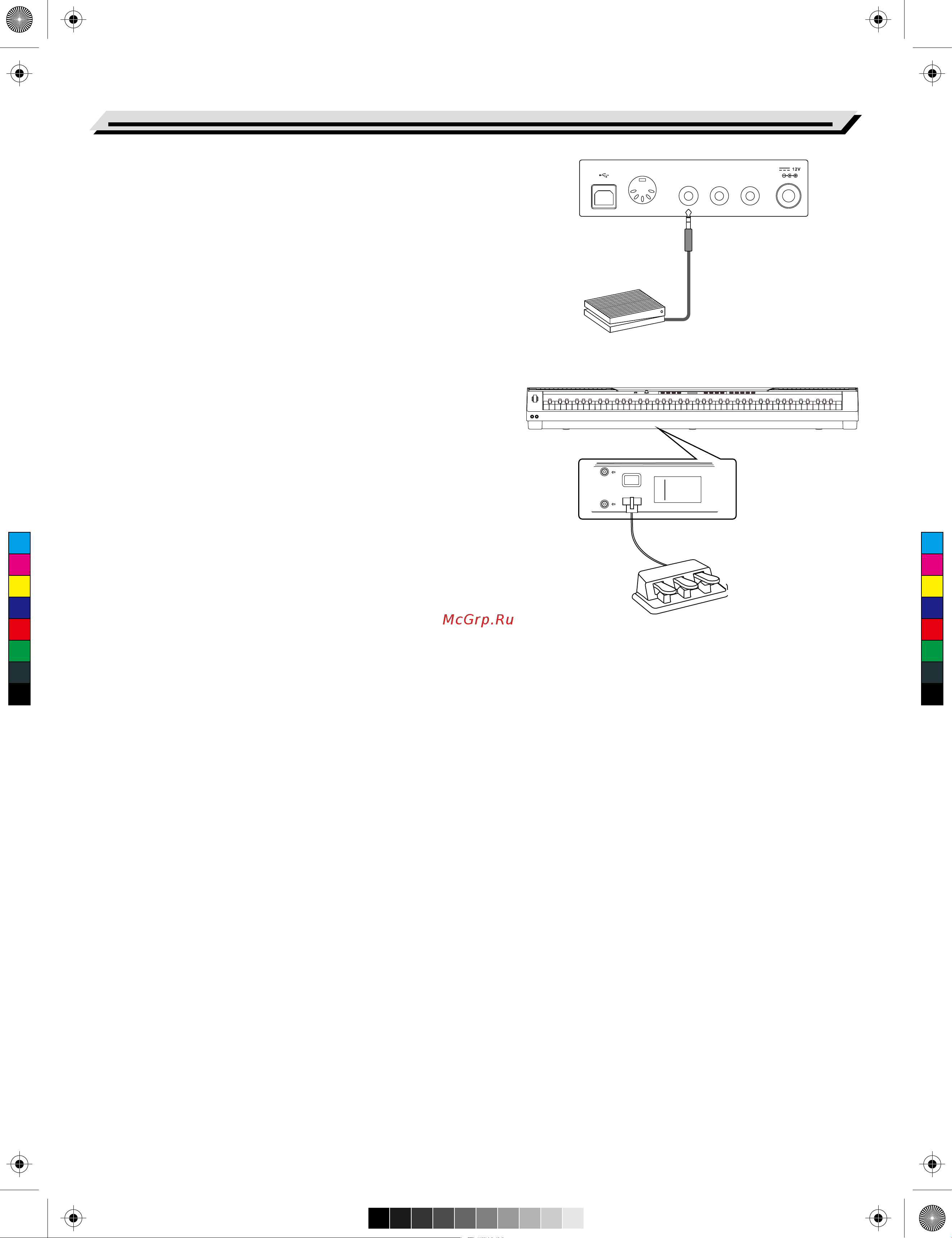

Connecting a Footswitch

An optional footswitch can be plugged into the sustain jack and be

used to switch sustain on or off. Simply by pressing a sustain

footswitch, you will have a natural sustain as you play.

Note:

1. This instrument supports not only the foot switch we supply, but

also those with other brands.

2. Make sure the power is off when connecting the pedal with other

brand, otherwise the sequence of switch on/off will be reversed

when turning the piano on.

Connecting a Unit Pedal

To simulate the real piano, you can also connect a unit pedal to the

unit pedal jack on the bottom cover, then it contains three functional

pedals: Sustain, Sostenuto, Soft.

Sustain Pedal

When the sustain pedal is pressed, notes sustain longer. Releasing

the pedal immediately stops any sustained notes.

It also supports the half-pedal operation, which makes your sustain

effect more smooth and real when you are performing.

Sostenuto Pedal

When the sostenuto pedal is pressed, the notes played before you

step on the pedal would have a sustain effect.

Soft Pedal

When the soft pedal is pressed, all notes played on the keyboard

will have a softer effect.

Note:

The unit pedal needs to be purchased separately.

Connections

USB MIDI OUT SUSTAIN AUX IN AUX OUT
