Operation

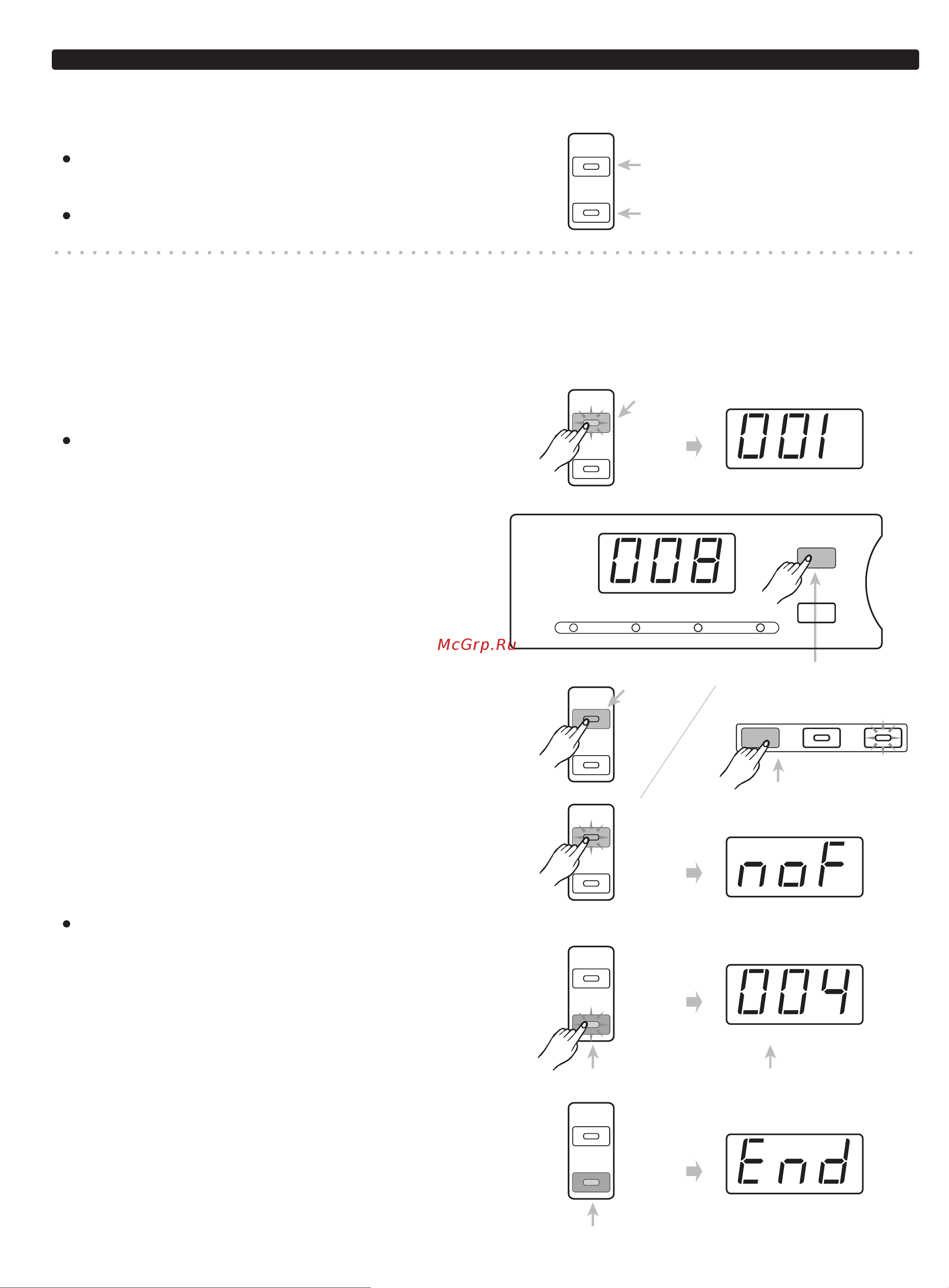

SD card function
PLAY/STOP can play/stop midi file at the root directory
in SD, support format 0 and format 1.
STORE can save the recorded data to SD root directory
as midi file which can be played on MIDI player.
SD button
In the SD mode, it won't respond to the other button
except [VOICE], [STYLE], [SONG].
It can play MIDI file and save recorded data at the root
directory.
Play
When power is on, press the [PLAY/STOP] button to play
all files at the root directory in SD card and the PLAY/STOP
indicator is on.
In the SD mode, you can select the midi file with [+/YES]
or [-/NO] button. The default file number is 001.
When playing the midi file, you can press the [PLAY/STOP]
or the [START/STOP] button to stop playing.
Press the [START/STOP] button again to start to play it
repeatedly.
Press the [PLAY/STOP] button when there is no midi file
in the SD card, LED display 'noF', then the display will get
back to previous mode in 2 seconds.
Store
When power is on, press the [STORE] button to enter
store mode and the STORE indicator is on.
It can save the recorded data to SD root directory as
midi file, midi file name is generated by system automa-
tically to avoid same name.
If the SD card capacity is full, it will stop saving automatically,
and display 'FUL' Then exit the store mode and return to
the previous mode.
After saving, the indicator of the [STORE ] button goes off,
LED will display 'End' temporarily which means saving be
over and succeed.
PLAY/
STOP
PLAY/
STOP
PLAY/
STOP
PLAY/
STOP
PLAY/
STOP
PLAY/
STOP
STORE
STORE
STORE
STORE
STORE
STORE
SD CONTROL
SD CONTROL
SD CONTROL
SD CONTROL
SD CONTROL
SD CONTROL
VOICE
STYLE
SONG
Play/stop midi file at the root directory in SD.
Play all files and indicator is on.
Enter store mode and indicator is on.
After saving, indicator goes off.
The midi file name is generated
by system automatically.
Stop playing.
No midi file in the SD
Select the midi file to play.
Start or stop playing the midi file.
Save the recorded data to SD root
directory as midi file.
VOICE
VOICE
VOICE
VOICE
STYLE
STYLE
STYLE
STYLE
SONG
+ / YES
- / NO
BEAT
START/STOP
NOR/VAR ACC VOL
2、
1、
22
