MIDI Function

What is MIDI

MIDI IN/OUT

Terminals

What is MIDI

MIDI Connection

’ ’

Connection rule

In midi connection, the equipment which controls another equipment is called Host Equipment.

Another equipment is called Affiliated Equipment.

The host equipment s MIDI OUT connect with affiliated equipment s MIDI IN.

Do not connect MIDI OUT with MIDI IN on the same equipment.

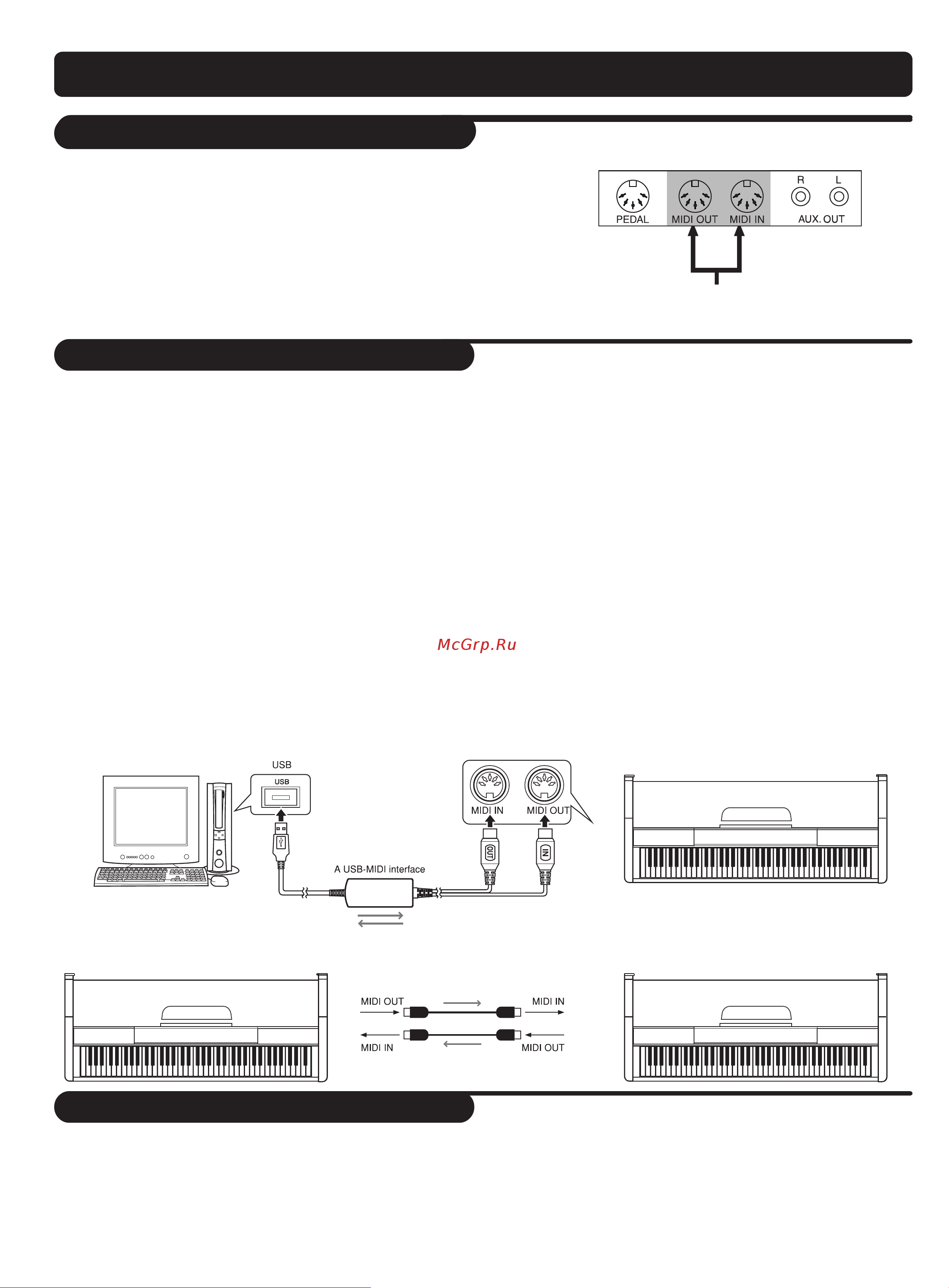

Sample Connection Method

Connect the MIDI interface with your PC.

The piano can control other equipments or electronic instruments.

Some equipments can be used to control the piano.

PC recorded data (MIDI) can be played on the piano.

Connect the MIDI interface with other digital music instruments.

Major Application

Musical Instrument Digital Interface. The standard interface

between PC and Electronic instrument.

It is equipped with standard MIDI interface, including 1

MIDI IN and 1 MIDI OUT.

Connection

It can connect with PC or other MIDI equipment.

MIDI IN

You can use a MIDI cable to connect the MIDI IN terminal of system to another MIDI OUT terminal of compatible MIDI

electronic instrument. Use MIDI IN, system can receive midi data such as note, program and touch etc.，in order to be

handled by another MIDI instrument.

MIDI OUT

You can use a MIDI cable to connect the MIDI OUT terminal of system to another MIDI IN terminal of compatible MIDI

electronic instrument. Midi data of system can be sent by MIDI OUT, when a note is generated, the relative message will

be transmitted. System can control other midi instrument by sending program change messages

1、

3、

2、
