Kurzweil SPS4-8 [111/120] Pedal problems
![Kurzweil SPS4-8 [111/120] Pedal problems](/views2/2008901/page111/bg6f.png)
Troubleshooting
Pedal Problems
12-5
If there are problems with the internal sound module receiving MIDI from an external
device like a computer sequencer, check if one of the following might be the issue:
The MIDI transmit channel of
transmitting device does not
match that of the receiving
Program or Zone on the SPS4.
Change the channel on either the
SPS4 or on the computer such that
the channels match.
The MIDI cable is not securely
plugged in at both ends.
Securely plug in the MIDI cable at
both ends.
The MIDI connections are
wrong.
To receive MIDI, plug the MIDI
cable into the SPS4’s MIDI In port
and into the module’s MIDI Out
port.
Pedal Problems
Before you consult this section, be sure to read Connecting Pedals on page 2-5.
Switch Pedal Problems
If you are having problems with connecting or using a switch pedal, check if one of the
following might be the issue:
• Sustain or Sostenato is stuck “on”. Be sure the pedal is plugged in before switching
on the power. Turn power off then on if necessary.
• The pedal is acting backward (“on” when up instead of down). Power cycle the unit
making sure to NOT press on the pedal during startup.

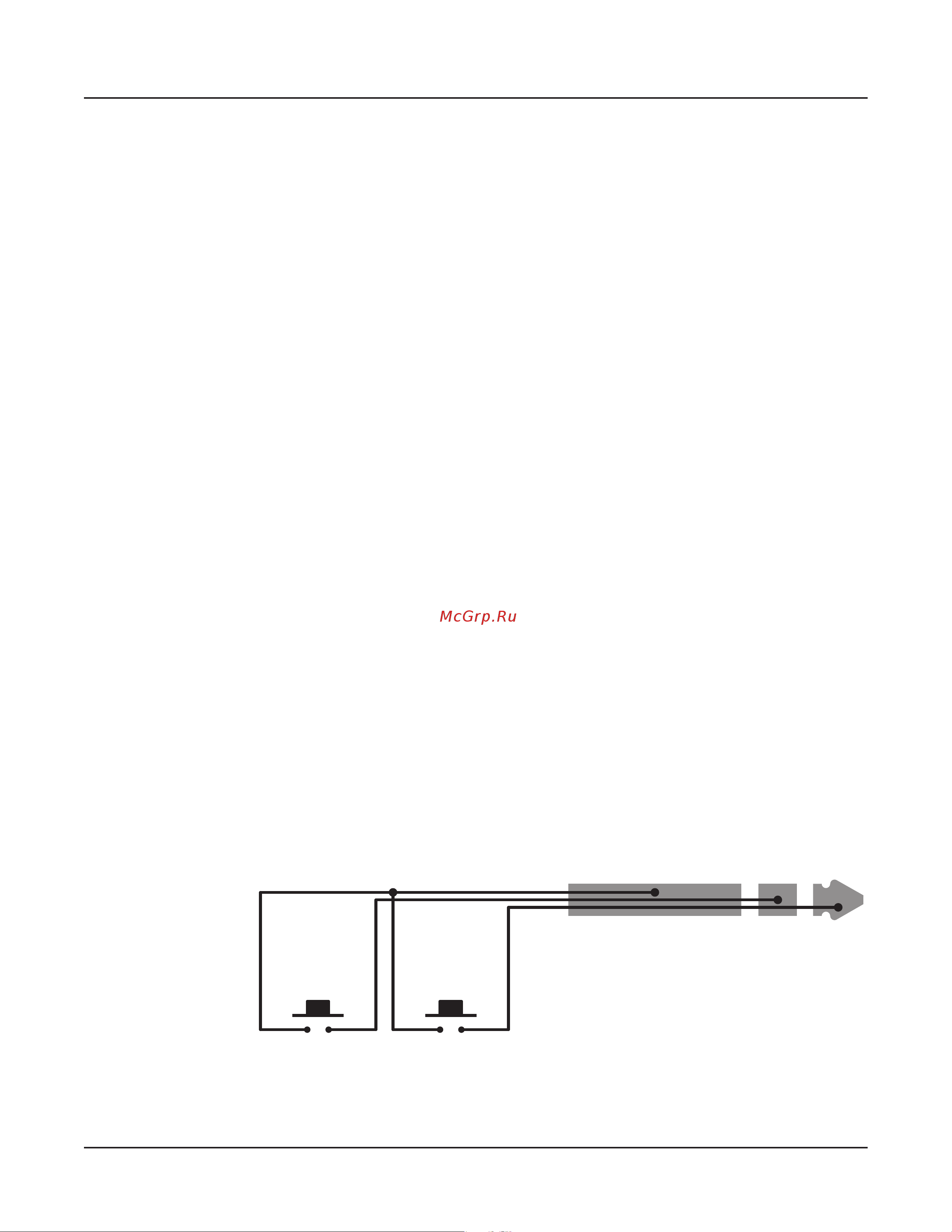

• A dual pedal is not working correctly. A dual switch pedal must be wired as shown
below. Any other wiring pattern will not work correctly.
Sleeve Ring Tip
Left Pedal Right Pedal
