Setup Mode
Changing the Transmit MIDI Channel
7-10
Layer Program
This parameter determines the program for the Secondary Voice. Any of the Programs can
be chosen for this parameter.
Layer Volume
This parameter determines the relative volumes of the Secondary and Primary Voices—it
can be set to any number between -127 and 127. By default, the Layer Volume is set to 0,
which results in both Voices having the same volume. When set to a positive number, the
volume for the Secondary Voice is increased while the volume for the Primary Voice is
decreased—doing the opposite has the opposite effect on the relative volumes of the Voices.
Layer Transposition
This parameter determines the transposition of the Secondary Voice relative to that of
the Primary Voice—it can be set to -24, -12, 0, 12, and 24. By default, Layer Transposition
is set to 0. Note that if the Primary Voice is transposed, then the Secondary Voice will be
transposed by the same amount in addition to being transposed by the amount set for the
Layer Transposition.

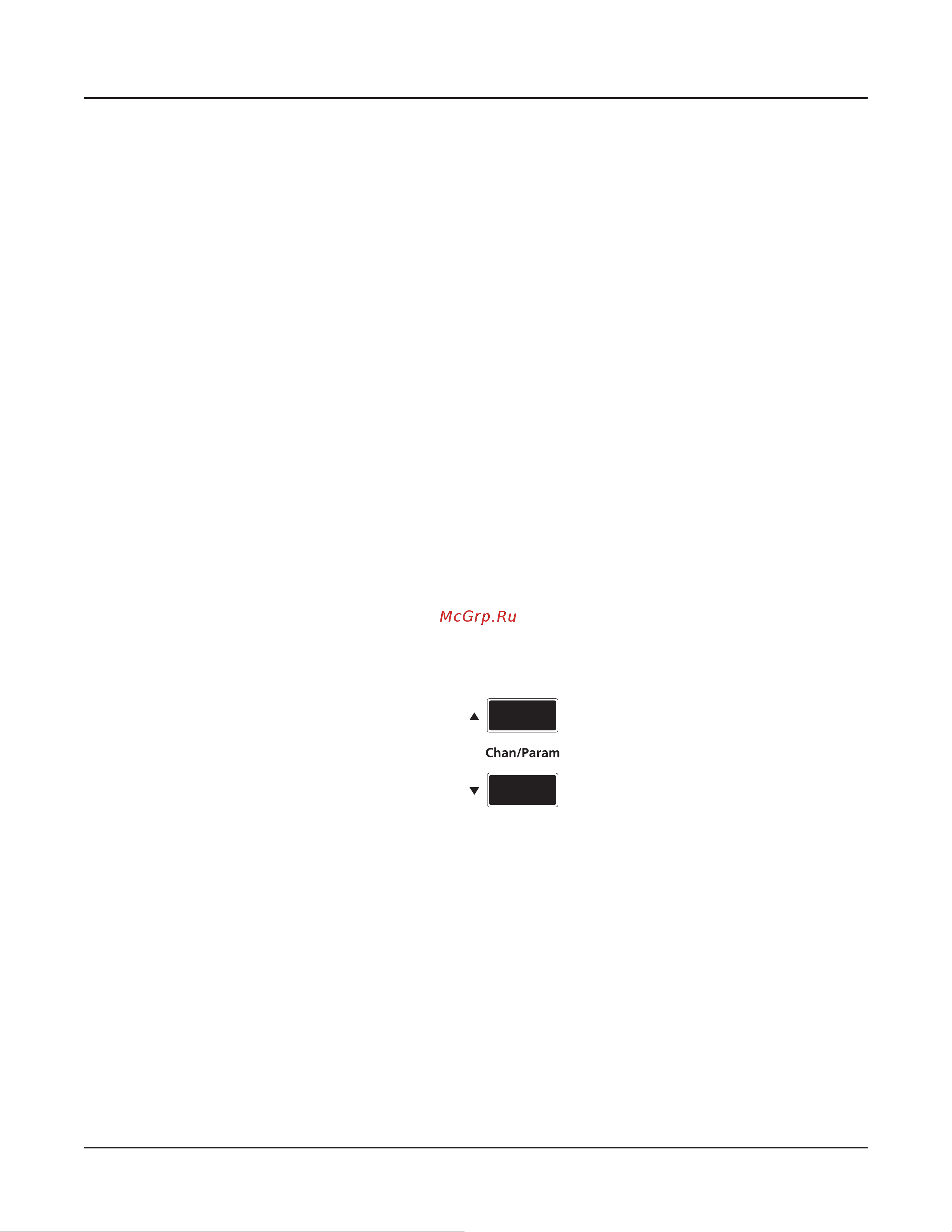

Changing the Transmit MIDI Channel
Pressing the Chan / Param Up (
) or Down (
) button will change the MIDI transmit
channel, incrementing or decrementing it respectively. Pressing both Chan / Param Up (
)
and Down (
) at the same time will reset the current MIDI channel to 1.
The MIDI channel will be shown briey in the display before the display changes back to
showing the current Program on the selected MIDI transmit channel.
