16 | NorD ElEctro 4D UsEr MaNUal os v1.1x

Comp is a compressor that will even out the dynamics of what you

play, making low level sounds louder and high level sounds lower in

volume. This produces a tight, punchy sound and makes the overall

level easier to control in a live mix situation. When this effect is active,

the Drive/Comp knob controls the amount of compression applied.

Reverb

The Reverb section simulates the natural sound reﬂections in various

acoustic environments. You can choose between ﬁve reverb types with

various lengths and densities, indicated by the three LEDs that light up

one or two at a time. The Dry/Wet knob sets the balance between the

unprocessed and the processed signal.

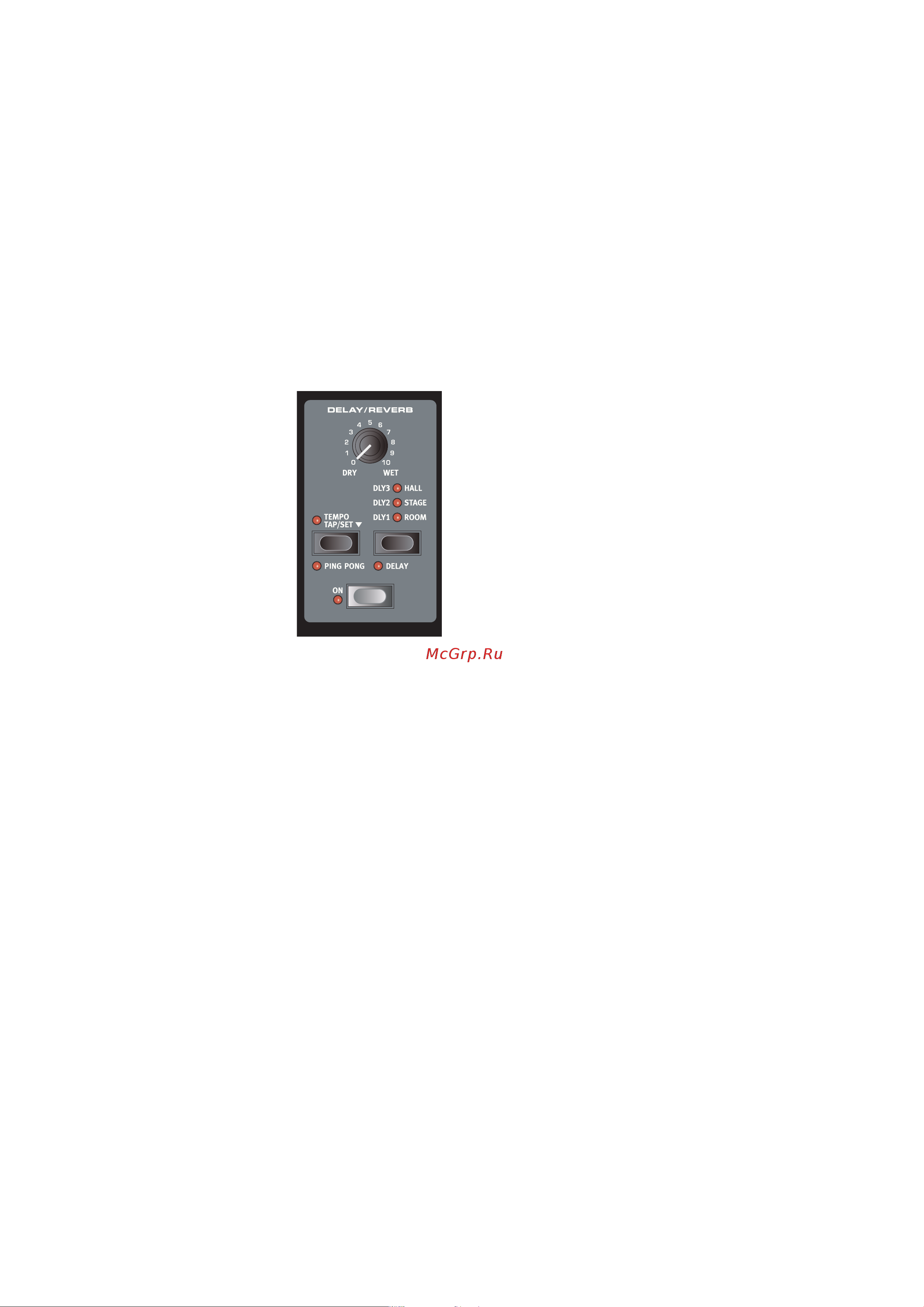

Delay / Reverb

The Delay effect produces echo effects. The Delay time is set with the

Up/Down buttons (20 – 750 ms) while

you hold the Tempo Tap/Set button.

The Dry/Wet knob adjusts the balance

between the dry signal and the delay

repeats.

Feedback

Press the Delay/Reverb button repeat-

edly to set the feedback, the number

of delay repeats. There are 5 feedback

settings, indicated by the Dly 1-3 array

of LEDs

Ping Pong

Holding Shift and press the Tempo Tap button to light up the Ping

Pong indicator, will make the delay repeats alternate between the left

and right channels. If short delay times are used, these repeats will be

“asymmetrical” and produce delays that are more like early reﬂections

in reverb units.

Tempo Tap

You can use Tap Tempo to set a delay time matching the tempo of

a song. Simply tap the Tap Tempo button in the tempo you wish the

delay to sync to a number of times, and the delay time will be adjusted

automatically. As long as the Tap Tempo LED is lit, the tempo is cal-

culated - wait until it goes dark to tap in another tempo. A numerical

indication of the delay time will be brieﬂy shown in the LED.

Gain

This is the programmable Gain control which allows you to adjust the

output level of each of the individual programs.
