Pedal Connections

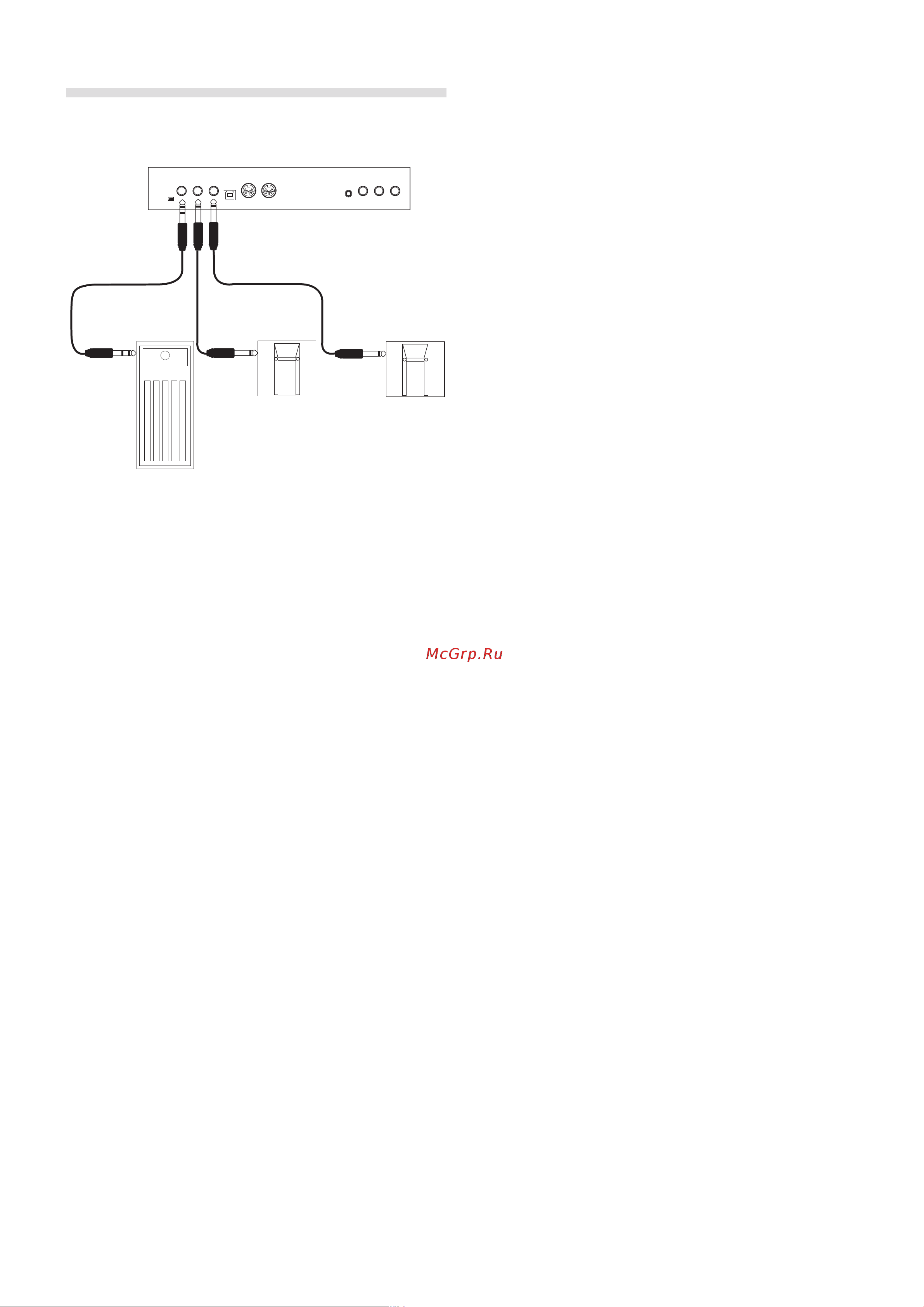

The Nord Electro 4D has three pedal inputs; a sustain pedal, a pedal to

control the rotor speed and a control pedal (an expression type pedal),

which can be used to control various parameters.

Sustain Pedal

¼" connector for a switch type pedal. When a connected pedal is

operated, the notes you play will be sustained.

Rotor Pedal

¼" connector for a switch type pedal. When a connected pedal is

operated, the rotary speed will change.

M Two types of pedal polarities can be used with these inputs; you

select the one that applies to each pedal, in the System menu

which is described on page 17.

 It is possible to use only one pedal connected to the sustain pedal

input to control sustain for piano sounds and rotary speed selection

for organ sounds (see page 17 for details on how to conﬁgure this).

Control Pedal

¼" stereo connector for a contimous pedal (also known as expres-

sion pedals). A connected pedal can be used as a swell pedal for the

organs, a volume pedal for pianos and samples and also as a controller

for two of the effects: the P-wah and the ring modulator (RM).

When connecting an expression pedal to the Control Pedal input, you

should use a stereo cable with a Tip-Ring-Sleeve connector. Please

note that the pedal must have a stereo output jack. The resistance

range of a control pedal should be 10 or 50 kOhm. To simplify setup,

the most common pedal models (Roland, Yamaha, Korg and Fatar) are

pre-conﬁgured in the Nord Electro 4D, and you simply select the type

of pedal which you want to use in the System menu, see page 17.
