CLAVIA DMI AB CLAVIA NORD Electro 4D SW61 [18/26] Midi menu

10 - Ctrl Pedal Mode

A connected control pedal can be used to control several things. It can

be used as a solitary organ swell pedal (swell is a combination of vol-

ume and frequency control), as a combined organ swell/volume pedal

for the samples, and ﬁnally as a swell/volume pedal for all the instru-

ment sections (incl. the pianos) in the Nord Electro 4D.

Range: O – Organ swell (default), S – Organ swell/sample volume,

P - Organ swell/sample volume, piano volume

M A connected control pedal will always be active if the P-Wa or the

RM effect is activated, regardless of the Ctrl Pedal Mode setting.

11 - Organ Trig Mode

This allows you to change how the Nord Electro 4D keyboard triggers

the organ sounds. When “Fast/High” is selected, you will trigger the

organ sounds before the key reaches the end of its travel. This mode

closely mimics the way a vintage tonewheel organ trigger its notes.

Range: HH - High (default), LO - Low

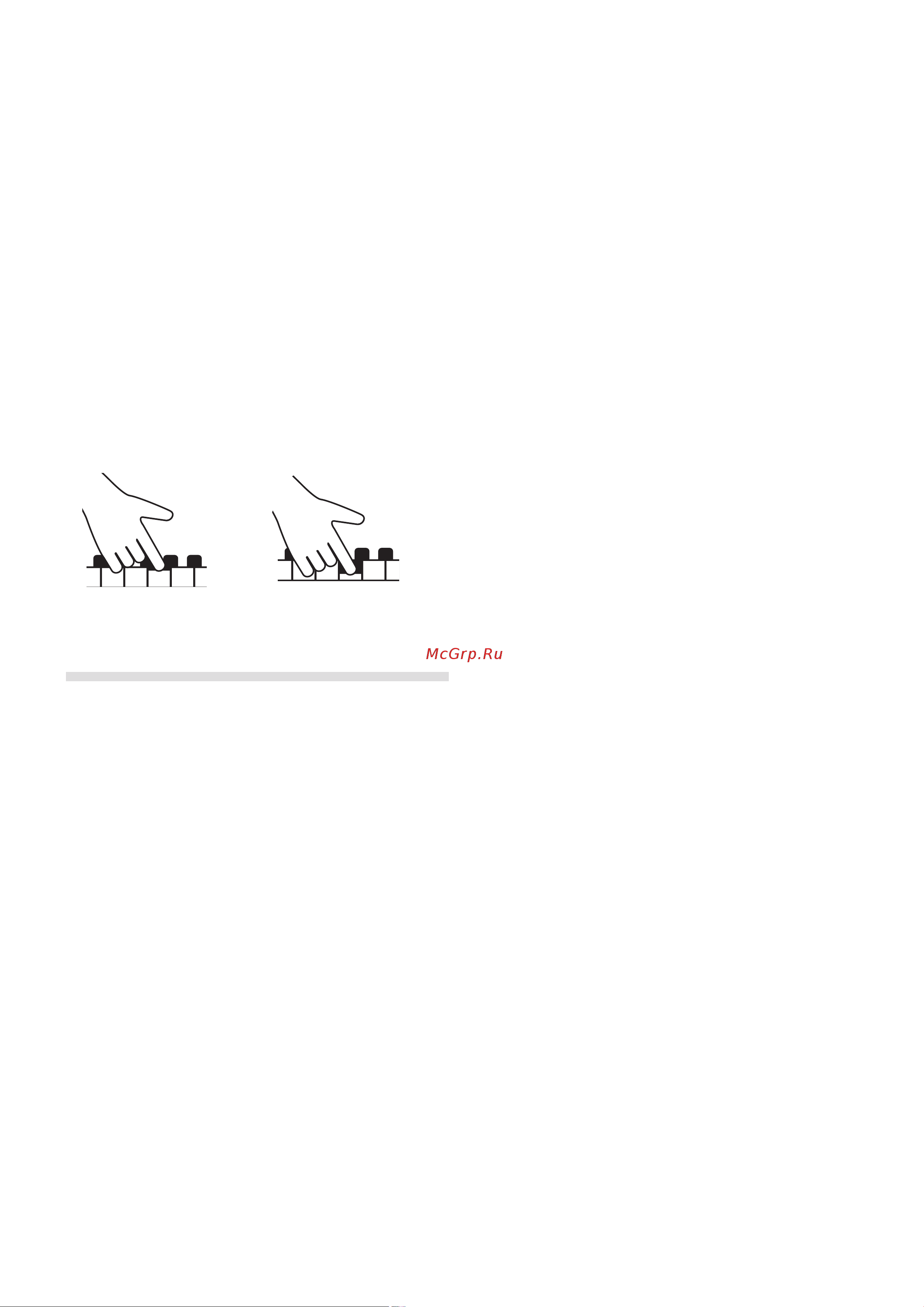

High trigger point Low trigger point

MIDI Menu

1 - Local Control

This allows you to set if the Nord Electro 4D keyboard and front panel

controls should control internal Programs or only send note and con-

troller messages via MIDI. Local On is the normal “mode”. In Local Off

mode, the front panel and keyboard action are transmitted via MIDI only

and does not control the internal sound(s) directly.

Range: On (default), Off

M Local defaults back to mode On every time the Nord Electro 4D is

powered on.

2 - MIDI Interface

Use this setting to chose if you want to use the MIDI interface on the

DIN connectors or the USB-MIDI functionality.

Range: P - DIN MIDI ports, U USB-MIDI (default)

3 - MIDI Channel

This sets the MIDI Channel that the Nord Electro 4D transmits and

responds to.

Range: 1-16, OF - off (default = 1)

4 - Lower Channel

This sets the MIDI channel that the Lower Manual of the Nord Elec-

tro4D organ section responds to when the organ split and the MIDI

split modes are active.

Range: 1-16, OF - off (default = 2)

5 - Control Change (CC) Mode

This setting speciﬁes how the front panel’s knobs and buttons are han-

dled in the MIDI communication with MIDI Control Change messages.

You can select if the panel controls and functions should either send or

receive, or both or if Control Change messages should be ignored.

Range: Sr (send & receive - default), r (receive only), S (send only),

Off

6 - Program Change Mode

Speciﬁes how the Nord Electro 4D should handle MIDI Program

Change messages.

Range: Sr (send & receive - default), r (receive only), S (send only),

Off

7 - MIDI Split Mode

If MIDI Split mode is On and the Organ is set to a split operation, the

lower manual will be exclusively controlled via incoming MIDI informa-

tion to the Electro 4D’s MIDI input. If you connect an external MIDI

keyboard, the Electro 4D can then be used in a dual manual fashion.

Range: On, Off (default)

8 - Dump One

This allows you to perform a MIDI SysEx dump of the currently selected

Program. Press the Store button to perform the dump.

9 - Dump All

This allows you to perform a MIDI SysEx dump of all the Programs in

the Electro 4D. Press the Store button to perform the dump.

In the MIDI chapter, on page 22 is a description on how the Electro4D

receives a Sys Ex dump.

10 - Send CC

You can perform a dump of all the active Program’s parameters as

MIDI Control Change messages. Press the Store button to perform the

dump

18 | NorD ElEctro 4D UsEr MaNUal os v1.1x
