If the Live memory is selected and you decide you wish to store the

settings permanently as a program you can do so using the stan-

dard methods (see above). You can also store programs into the Live

memory location, in which case the program settings will replace the

current Live memory settings.

Panic

If notes would ever sustain indeﬁnitely during a performance, press

Panic. This will execute an internal All Notes Off command, and reset

incoming MIDI CC messages to zero .

Instrument selectors

Press one of the Instrument Selectors to use either the organ or the

piano/sample sounds.

 Only the active section will have its corresponding functions lit

and active. It is however possible to e.g. perform with the pianos,

and adjust the organ settings, and then quickly activate these by

pressing the organ instrument selector.

Shift

Many buttons have a second function, when there is text printed below

the button. You access these additional functions and parameters by

holding Shift while pressing a button.

Octave Shift

The two Octave Shift buttons can be used to transpose the keyboard

two octaves up or down (if the selected instrument supports this). Two

Octave Shift LEDs that are lit at the right or left position indicates +/- 2

octaves shift.

Each instrument in Nord Electro 4 HP/SW has a ﬁnite note range:

• The Organ extends one octave below and one octave above an 88

note keyboard range.

• The Piano and Samples extends one octave below an 88 key range,

but not above.

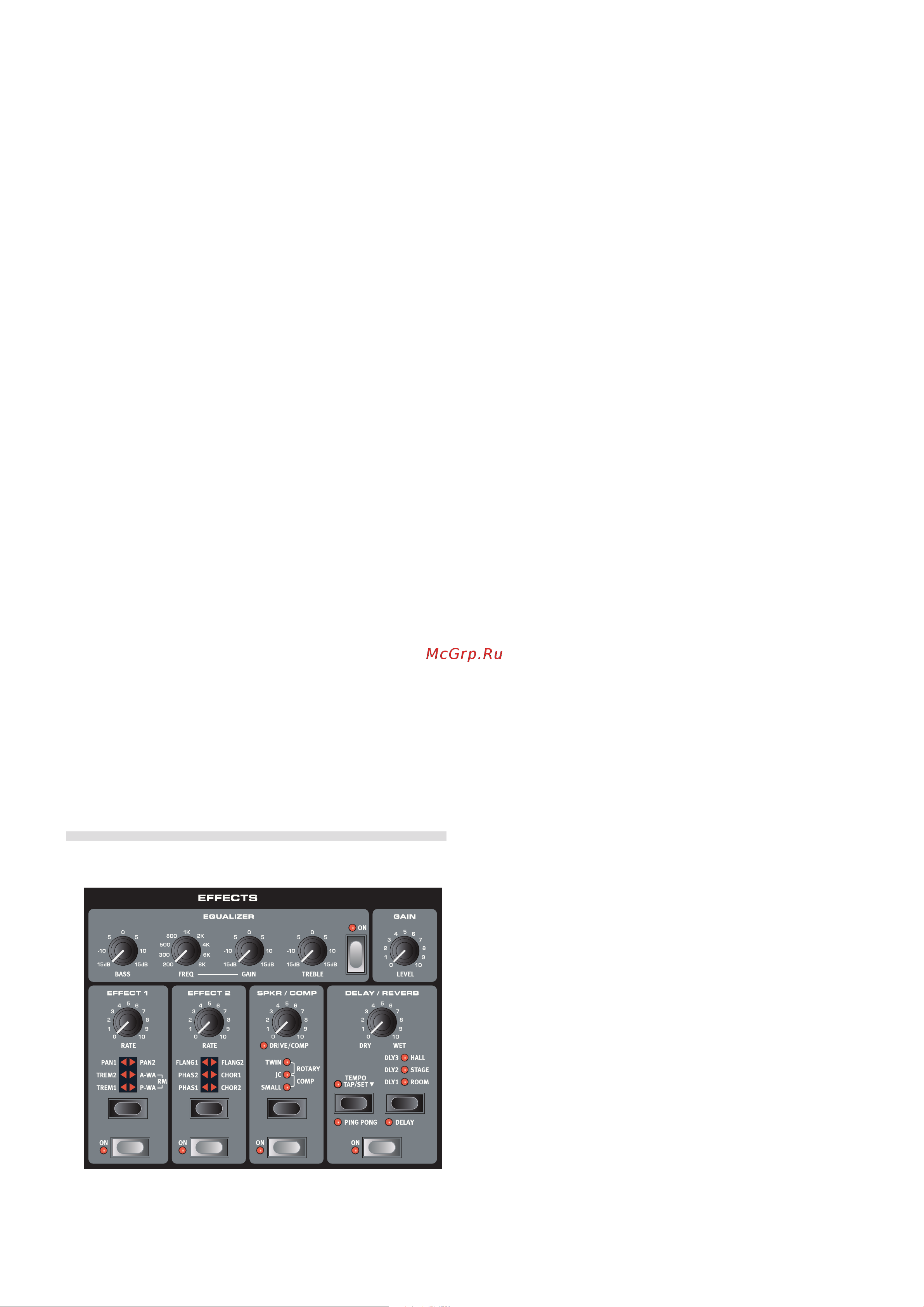

Effects

The Effects section of Nord Electro 4 HP/SW can be used for process-

ing the organ and piano/sample sounds. It is programmable and you

can conﬁgure your effects separately for each program.

 You have the possibility in every program, to store the on or off

setting of the effects, also for the instrument not being used as the

active in the program. This allows you to quickly change from for

example a piano performance with some effects turned on, to an

organ performance with another set of effects turned on, by just

pressing the appropriate instrument selector.

 Press and hold Shift and press the Effect selector to cycle through

the effects in a counter clockwise fashion.

This is a 3-band EQ with treble, bass and a sweepable midrange. The

Bass frequency is 100 Hz and the High frequency is 4 kHz. The sweep-

able mid range is from 200 Hz to 8 kHz. The frequency ranges can be

boosted/attenuated with +/- 15 dB.

Effect 1

Effect 1 offers four different types of effects: Tremolo, Auto-Panning,

2 types of Wah-Wah and a ring modulator (RM).

The tremolo and the auto-panning have 3 selectable depths. Pan1 is

less dramatic than Pan2, and Pan 3 (both Pan LEDs lit) is the most

dramatic.

The Rate knob control the rate of the effect.

The A-Wa is a wah-effect where a lowpass ﬁlter sweep across the

frequency range is controlled by the volume of the signal. This means

that you can use the velocity on the keyboard to control the amount of

“Quack!” in the sound. The Rate knob sets the frequency range of the

sweep.

The P-Wa uses the Rate knob to control a lowpass ﬁlter sweep across

the frequency range. If a control pedal is connected, this sweep is

instead controlled by the pedal action, and the Rate knob will then

have no effect.

Ring Modulation (RM) is a an effect that multiplies two signals with

each other. In the Electro 4 HP/SW, these are the instrument audio

signal and a modulation sine wave. The results can be range from a

subtle coloring to screaming, inharmonic, bell type sounds. The Rate

knob controls the frequency of the sine wave, also perceived as a

“modulation rate”.

A connected control pedal will control the amount of the ring modula-

tion. If no control pedal is connected, the amount defaults to a moder-

ate setting and the Rate knob can be used to produce a manually

controlled ring modulation effect.
