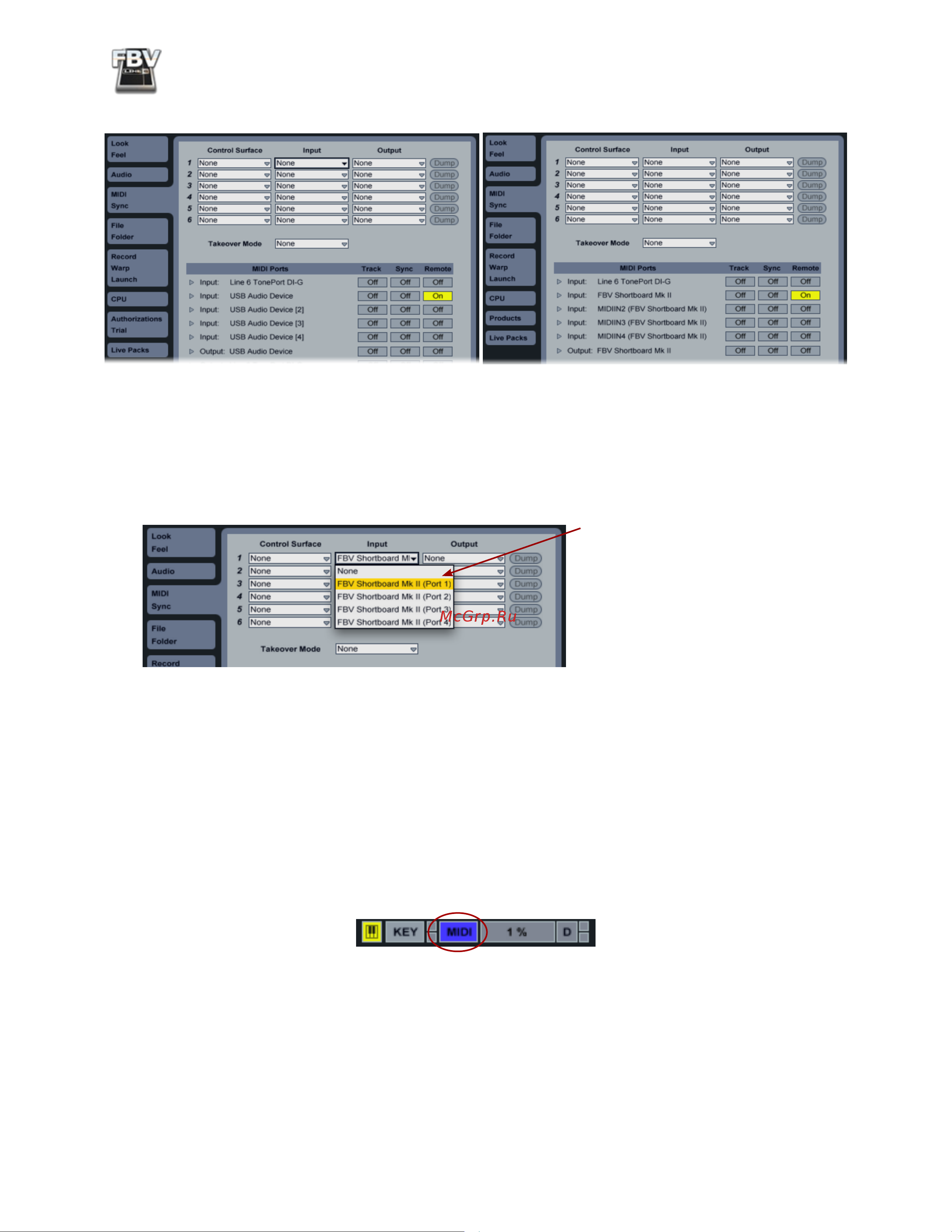

FBV MkII Advanced User Guide: Controlling 3rd Party Software
6•6
Windows® XP Windows Vista® & Windows® 7
The same applies in Windows® XP, Vista® & 7, but you’ll see the FBV Port names are listed differently
• Now go to the Input menu in the top row of the dialog and select the same FBV Port 1 device.
This allows Live to utilize your FBV as a MIDI Controller Input device. Once again, you’ll see
these FBV port names listed differently, as shown above for Mac
®
versus Windows
®
, so just
choose the first FBV USB MIDI port in the menu list:
Select the first FBV Port in this
top Input menu. Leave all other
control Surface, Input and
Output menus set to “None”
so that Live is only receiving
MIDI Control data from your
FBV
• Close the Preferences dialog - this completes MIDI input device configuration steps.
Map FBV Controls
Next we need to “map” the FBV Controls to a few of the Live functions. Live refers to this process as
“manual mapping”, and we need to enter the Live “MIDI Map Mode” (some other applications refer
to this type of process as “MIDI Learn”).
• To enter MIDI Map Mode, click on the MIDI button at the top right of the Live screen:
• You will then see many of the Live controls become highlighted - as our screen shot shows
highlighted in blue here (your Live settings or version might use a different highlight color).
These highlighted controls indicate that they are “map-able” (able to be controlled remotely).
