Руководство по эксплуатации Страница: 1

LINE 6 POD HD Pro Руководство по эксплуатации онлайн

POD

HD Pro

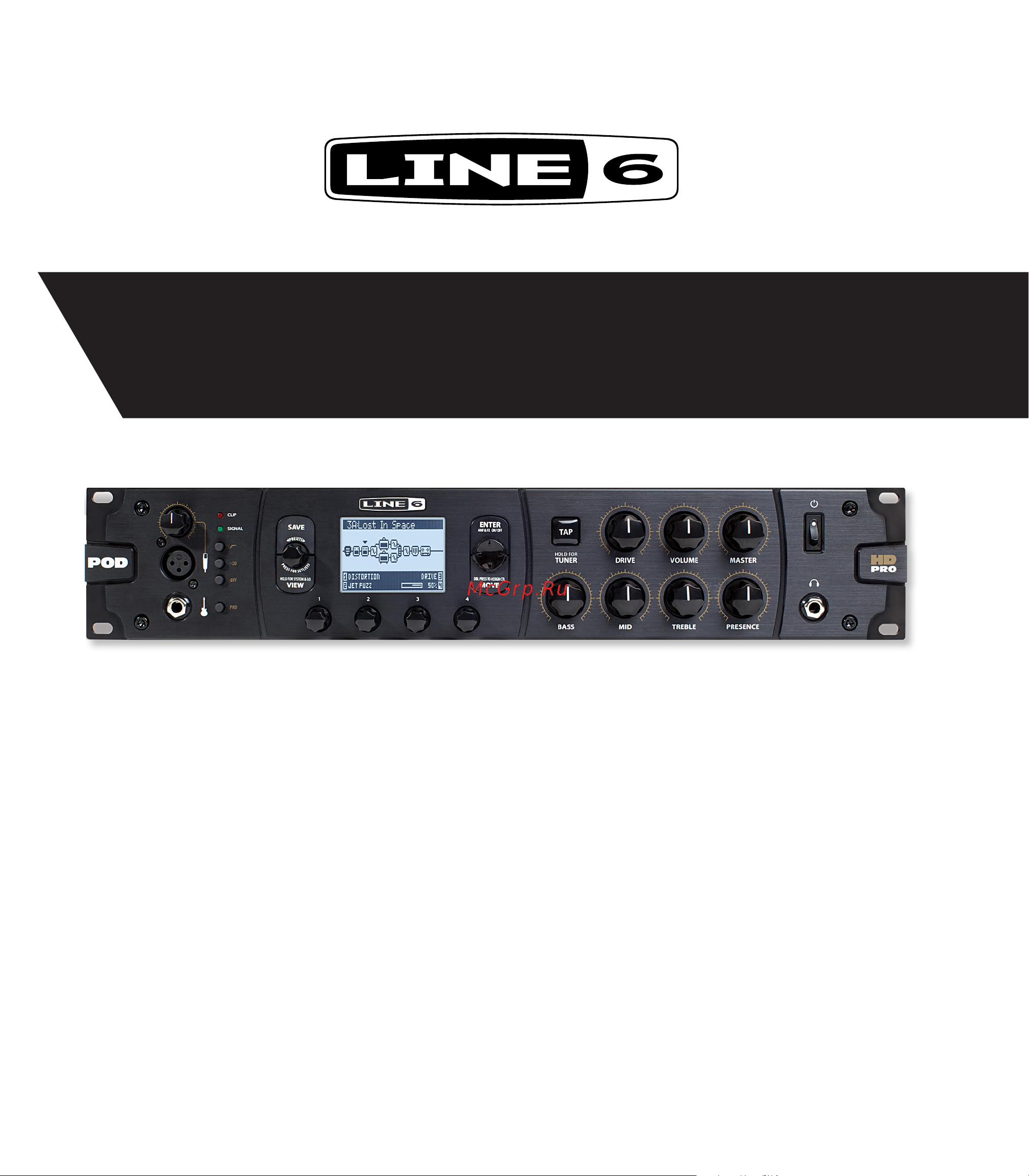

An in-depth exploration of the features &

functionality of POD HD Pro

Electrophonic Limited Edition

Advanced Guide

Содержание

Pod hd pro advanced guide 1
Features functionality 3 1 2
Overview 1 1 2
Set lists presets 4 1 2
System setup 2 1 2
Table of contents 2
Amp cab mic models 6 1 3
Fx edit mode 5 1 3
Fx models 7 1 3
Looper mode 8 1 3
Usb audio 9 1 3
Appendix a line 6 monkey a 1 4
Appendix b fbv foot controllers b 1 4
Appendix c midi c 1 4
Home views 5
Overview 5
Signal flow view 5
Verview 5
Big user view 6
Performance view 7
Tuner mode 8
Connections 9
Tap tempo 9
Pod hd edit pro software 10
Accessing system setup 11
System setup 11
Page 1 setup utilities options 12
Page 2 setup utilities options 13
Page 3 setup input options 14
Amp fx model guitar input impedance ratings 16
Model guitar input impedance 16
About source input signal routing 17
Page 4 setup output options 18
Page 5 setup digital output options 19
Page 6 midi tempo options 20
Page 7 setup variax options 21
James tyler variax 22
Variax electric 23
Variax acoustic 700 24
Variax bass 700 705 25
Page 8 james tyler variax tuning options 26
Page 10 setup l6 link control 27
Page 9 setup l6 link audio 27
Eature 29
Features functionality 29
Fx blocks 29
Unctionality 29
Fx loop 30
Amp blocks 31
Mixer block 32
Moving fx blocks 33
Model types and mono stereo signal routing 34
Fx amp block fbv footswitch assignment 35
Dynamic dsp 36
Accessing set lists 37
Resets 37
Set lists presets 37
Working with set lists 37
Arranging presets within set lists 39
Accessing presets 41
Working with presets 41
Fbv controller a b c d channel footswitches 42
Saving presets 42
Accessing fx edit mode 45
Fx edit mode 45
Knob 1 type 46
Knob 2 model 46
Knob 3 parameter 47
Knob 4 value 47
Fx loop 48
Amp cab mic models 49
Amp model positioning 49
Amps within paths a b 49
Amp block in pre or post positions 50
Selecting amp cab mic models 51
Amp and preamp models 52
About default amp settings 53
Amp block states 53
Guitar cab mic models 53
Mic model descriptions 53
Mic models 53
Mic name based on 53
The amp blocks have 3 available states on off bypassed or disabled sometimes referred to as a null state for the block 53
Tofollowisalistofallmicmodels notethatallguitaramp scabsofferaselectionof8 mics andthe1x15fliptopbasscaboffersitsownselectionof8micmodels 53
Whenever you change to a different amp or preamp model predetermined cab mic models are automatically loaded as well as amp tone knob settings designed to complement the amp type as noted throughout this chapter you can certainly switch to a different cab and or mic model just be sure to save your preset to retain these changes 53
Bass cab mic models 54
Button once toggling the amp off results in bypassing the amp cab and mic processing 54
Editing amp parameters 54
Lcd screen temporarily displayed showing the actual values of the tone knobs for both current amp a amp b models depending on your amp knobs display setting see page 1 setup utilities options on page 2 2 also see the next section for more about the 54
Mic model descriptions 54
Mic name based on 54
Options 54
Press the 54
To adjust the amp tone 54
To toggle the selected amp model on or off 54
Turn any of the amp tone knobs to adjust the desired settings for the selected amp 54
Whenever you adjust any of the amp tone knobs you ll see the momentary 54
Amp cab edit display 55
Amp edit page 1 55
Amp edit page 2 57
Amp edit page 3 57
Amp edit page 4 58
Amp edit page 5 59
Amp preamp model based on 60
Amp preamp models 60
Pod hd amp preamp models 60
To follow is a table showing the classic amplifiers upon which all our hd amp preamp models are based for more details please also check out the pod hd model gallery available from http line6 com support manuals 60
Amp control labels 61
Cab model based on 62
Cab models 62
Pod hd cab models 62
To follow is a table showing the classic speaker cabinets upon which our cab models are based 62
Common parameters 63
Dynamics models 63
Fx models 63
Common parameters 64
Distortion models 64
Modulation models 65
Common parameters 66
Common parameters 67
Filter models 67
Bass octaver 68
Pitch fx model parameters 68
Pitch models 68
Pitch glide 69
Smart harmony 69
Choose your key on the left then your mode on the top 70
For example for c lydian the scale you want is g major 70
Key ionian dorian phrygian lydian mixolydian aeolian locrian 70
Key select the key you ll be playing in 70
Mix sets the balance or your dry signal harmony notes 70
Scale select the scale you d like to use see the following instructions and table 70
Shift determines the interval value for the desired harmony note 70
The cell where the two connect is the key to choose to get to the mode you d like 70
The smart harmony effect automatically detects your guitar s single note pitch and shifts it to match a user selected key and scale a choice of keys is provided consult the table below to achieve other scalic modes 70
Common parameters 71
Preamp eq models 71
Vintage pre 71
Delay models 72
Common parameters 73
Common parameters 74
Reverb models 74
Particle verb 75
Volume 76
Volume pan wah models 76
Before path a b split 77
After path a b mixer 78
Placing a mono output fx model after the pan 78
Common parameters 79
Wah models 79
Looper controls performance view 81
Looper mode 81
Looper settings 84
2 speed operation 85
The line 6 usb audio driver 87
Usb audio 87
Audio routing 88
When using the pod hd pro usb connection the audio driver manages several tasks the driver feeds the processed guitar signal out the usb record send to your computer and receives playback audio from the computer it also grabs the processed guitar signal before routing it to the record send to provide a low latency monitor signal and then mixes the monitor signal with the playback audio and feeds this combined signal to your pod hd pro analog outputs 88
The line 6 audio midi devices panel 89
The pod hd pro record send 89
Line 6 audio midi settings driver options mac 90
Mac line 6 audio midi devices 90
Inputs recording page 91
Mac os x audio midi setup utility 92
Windows line 6 audio midi devices 94
Asio driver settings 97
Sample rate converter active 97
Usb audio streaming buffer 97
Inputs recording page 98
Appendix a line 6 monkey 99
Launch line 6 monkey 99
Login account 99
Ppendi 99
Grab those updates 100
Register your hardware 100
Flash memory updates and presets 101
Line 6 variax updates 102
Appendix b fbv foot controllers 103
Fbv mkii fbv series controllers 103
Ontrollers 103
Ppendi 103
Getting connected 104
Setup options for fbv 104
Setup page 1 104
Setup page 2 105
Pod hd pro performance view screens 106
Fbv controller devices footswitch pedal mapping 107
Fbv shortboard mkii 107
Fbv shortboard mkii footswitch pedal mappings 107
Your fbv device s footswitches and pedal s are already mapped to specific pod hd pro functions these mappings are slightly different for each fbv controller type please reference the following table that matches your specific fbv model see the following sections for more details on the pod hd pro functions listed in these tables 107
Fbv shortboard mkii footswitch pedal mappings 108
And green 109
Assignable controllers please see expression pedal variax knob controller assignment on page b 16 for how to assign these controllers to amp fx parameters to customize your presets 109
Fbv shortboard mkii devices include an on board expression pedal as well as an optional jack to include a 2nd expression pedal these pedals access the pod hd pro 109
Fbv shortboard mkii looper mode footswitch mappings 109
Input the on board pedal s toe switch will toggle between the control of 109
Leds on fbv illuminate to indicate the current pedal mode respectively it is also possible to manually assign other functions to the toe switch see using the exp pedal toe switch on page b 20 109
Looper mode footswitch mappings 109
Pedal controllers 109
The red 109
When no additional pedal is connected to the fbv 109
When pod hd pro is placed in looper mode several fbv footswitches change their mappings to perform the following looper functions please also see looper mode on page 8 1 109
And pedal 2 to only 110
Exp 1 and exp 2 with pedal 2 connected 110
Fbv express mkii 110
Fbv express mkii footswitch pedal mappings 110
Leds both lit 110
Whena2ndexpressionpedal suchasaline6ex 1expressionpedal isconnected the on board pedal remains mapped to only 110
Whenever a pedal 2 is connected you ll see the 110
And green 111
Assignable controllers please see expression pedal variax knob controller assignment on page b 16 for how to assign these controllers to amp fx parameters to customize your presets 111
Fbv express mkii devices include an on board pedal which provides access to both the pod hd pro 111
Fbv express mkii footswitch pedal mappings 111
Leds on fbv illuminate to indicate the current pedal mode respectively it is also possible to manually assign other functions to the toe switch see using the exp pedal toe switch on page b 20 111
Pedal controllers 111
The pedal s toe switch will toggle between the control of 111
The red 111
Fbv longboard 112
Fbv longboard footswitch pedal mappings 112
Fbv longboard footswitch pedal mappings 113
Assignable controllers respectively please see expression pedal variax knob controller assignment on page b 16 for how to assign these controllers to amp fx parameters to customize your presets 114
Fbv longboard devices include two on board pedals 114
Fbv longboard looper mode footswitch mappings 114
Itispossibletomanuallyassignthepedal1toeswitchtotoggleamporfxblockson off see using the exp pedal toe switch on page b 20 114
Looper mode footswitch mappings 114
Pedal controllers 114
These pedals are permanently mapped to the pod hd pro 114
When pod hd pro is placed in looper mode several fbv footswitches change their mappings to perform the following looper functions please also see looper mode on page 8 1 114
Fbv shortboard 115
Fbv shortboard footswitch pedal mappings 115
Fbv shortboard footswitch pedal mappings 116
And green 117
Assignable controllers please see expression pedal variax knob controller assignment on page b 16 for how to assign these controllers to amp fx parameters to customize your presets 117
Fbv shortboard devices include an on board pedal as well as an optional jack on the back to include a 2nd expression pedal these pedals access the pod hd pro 117
Fbv shortboard looper mode footswitch mappings 117
Input the on board pedal s toe switch will toggle between the control of 117
Leds on fbv illuminate to indicate the current pedal mode respectively it is also possible to manually assign other functions to the toe switch see using the exp pedal toe switch on page b 20 117
Looper mode footswitch mappings 117
Pedal controllers 117
The red 117
When no additional pedal is connected to the fbv 117
When pod hd pro is placed in looper mode several fbv footswitches change their mappings to perform the following looper functions please also see looper mode on page 8 1 117
Controlling amp fx parameters 118
Exp 1 and exp 2 with pedal 2 connected 118
Expression pedal variax knob controller assignment 118
Variax knobs as controllers 118
The controller assign screen is then displayed specifically for the selected model in our example itisthedigitaldelayw modulation usethemulti functionknobs1 4to configure the controller assignment options 119
Amp fx block footswitch assignment 120
Assigning an fx or amp block to a footswitch 121
Using the exp pedal toe switch 122
Set list select 124
Tap tempo 124
Tuner mode 125
Appendix c midi 127
C midi 127
Midi input out thru 127
Pod hd pro midi setup options 127
Ppendi 127
Controlling pod hd pro functions via midi 128
Midi cc value function 128
Pod hd pro footswitch pedal assignments looper functions and more can be can controlled remotely via a midi controller device connected to the pod hd pro 128
Pod hd pro midi control reference 128
Port the following reference table shows the necessary midi cc settings to configure your midi controller device to access these pod functions 128
Bank program change messages 129
The midi assign screen 131
Using pod hd pro fbv as a midi controller 131
Footswitch midi cc value 134
Looper mode footswitch behaviors 134
Looper mode footswitches midi cc transmit reference 134
When the pod hd pro looper mode is active pressing the connected fbv looper footswitch functions automatically transmits the following midi cc messages these are global midi cc assignments and cannot be edited 134
