Features & Functionality
3•3
Access options for the FX Loop at the bottom of the Signal Flow View, or in the Edit Mode
screen. You can also toggle the FX Loop “On” or “Off” by pressing the ENTER button
once. The FX Loop’s position and all its parameter values are saved per Preset. Please also
see “FX Loop” on page 5•4.
Amp Blocks
A single Amp Block can be placed in the “Pre” or “Post” signal flow positions, or within
parallel “Path A.” Or, two Amps can be used if positioned within Paths A & B, as shown
below. Much like FX Blocks, Amp Blocks can be toggled On/Off and include several
editable parameters. But there’s quite a bit more available for Amps as well, so please refer
to the dedicated chapter “Amp, Cab & Mic Models” on page 6•1 for details!

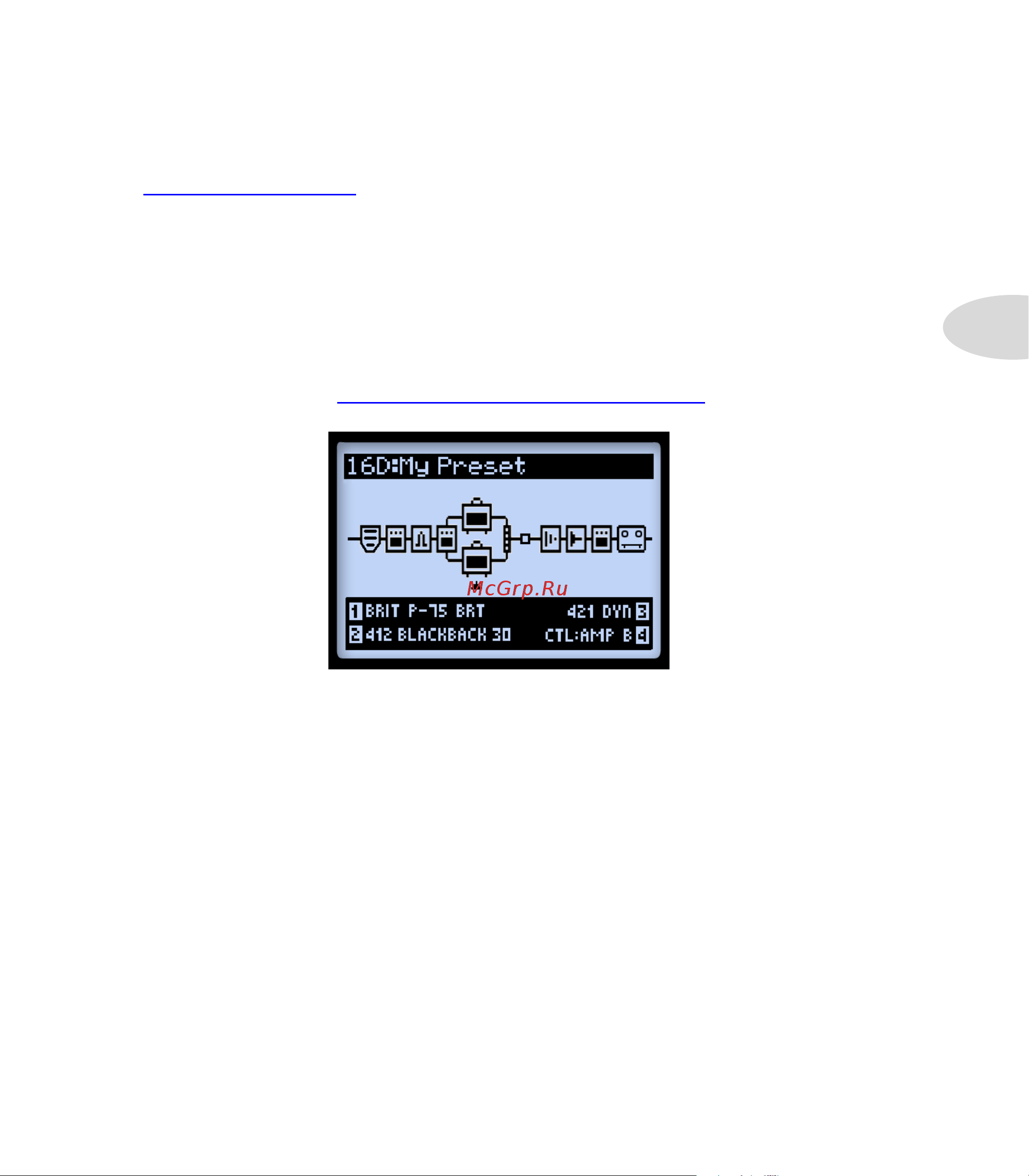

A Preset with two Amp Blocks
