FX Models

7•13

brighter, more reﬂective reverb quality.

• Mix: Sets the balance of the dry & wet signals, from 0% (dry signal only) to 100%

(wet reverb signal only).

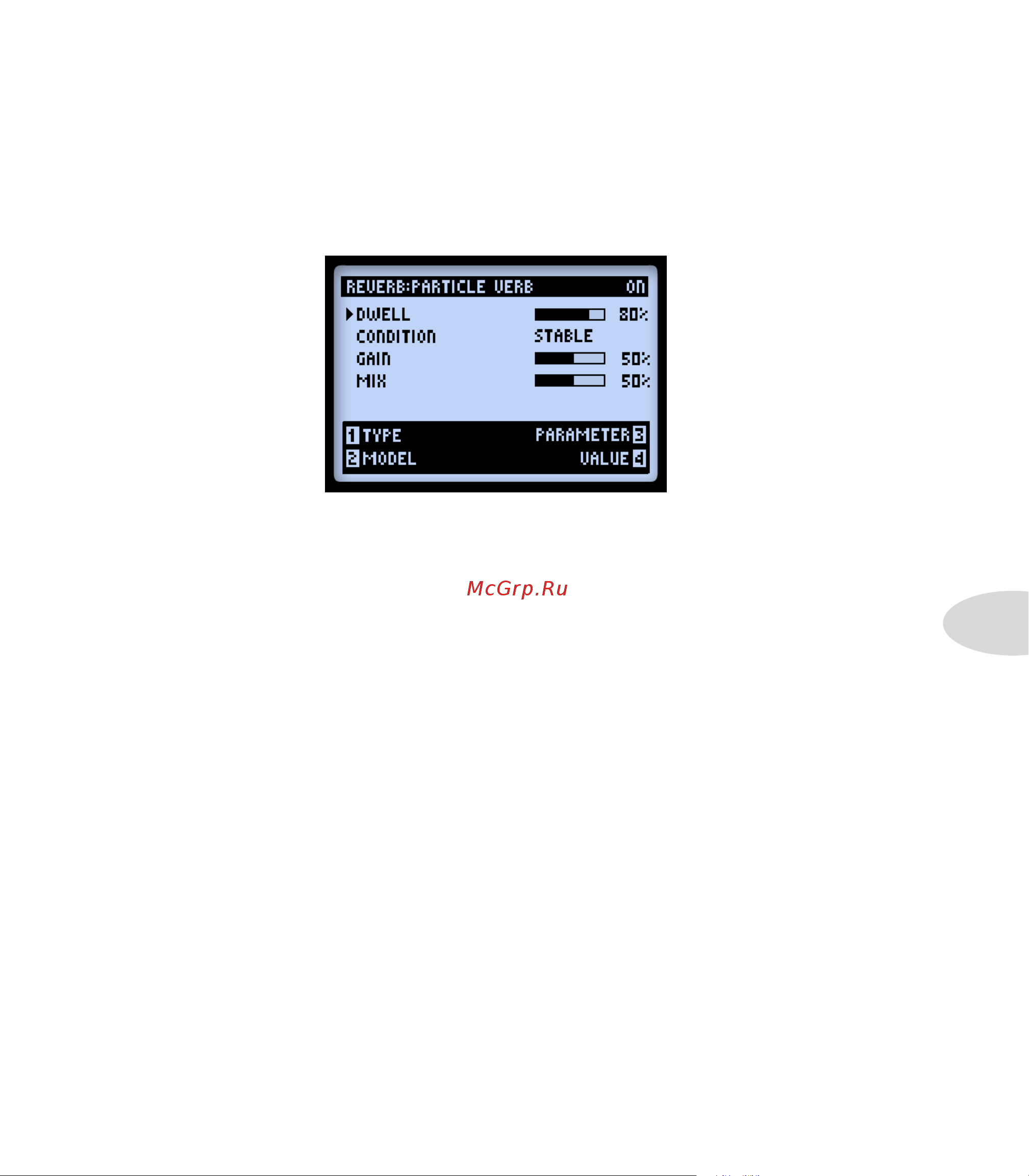

Particle Verb

A new kind of reverb effect which turns your chords into a lush modulated pad in STABLE

mode. CRITICAL mode is similar, but with a slight rise in pitch. In HAZARD mode, all

stops are removed. The parameters for this model differ from the other Reverbs:

• Dwell: Essentially a decay parameter, which adjusts the length of time the reverb

tail lasts.

• Condition: Choose between STABLE, CRITICAL and HAZARD here for some

different reverb experiences!

• Gain: Sets overall output level of the effect.
