Appendix B: FBV Foot Controllers
B•10
FBV Longboard

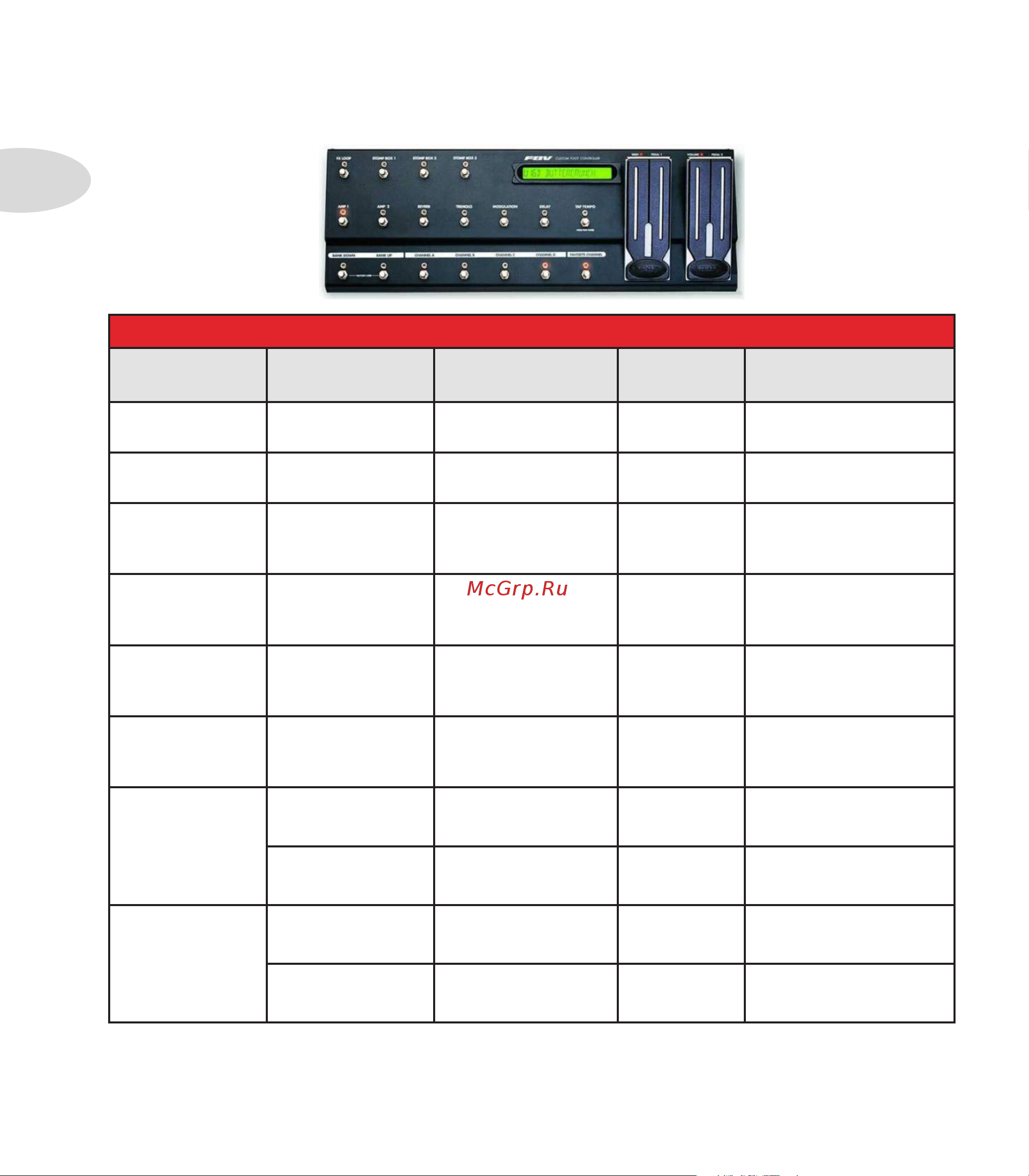

FBV Longboard - Footswitch & Pedal Mappings
Footswitch
Label
POD HD Pro
Function
FBV LCD Screen Footswitch
LED
Description
FX LOOP
Looper Mode
On/Off
No change Lit when
mode active
Toggles Looper Mode
On/Off
AMP 1
Set List Select
Mode On/Off
Displays Set List
selection screen
Lit when
mode active
Toggles Set List Select
Mode On/Off
REVERB
FS4 On/Off No change Lit when
Block active
Toggles the “FS4”
assigned Amp/FX
Block
TREMOLO
FS1 On/Off No change Lit when
Block active
Toggles the “FS1”
assigned Amp/FX
Block
MODULATION
FS2 On/Off No change Lit when
Block active
Toggles the “FS2”
assigned Amp/FX
Block
DELAY
FS3 On/Off No change Lit when
Block active
Toggles the “FS3”
assigned Amp/FX
Block
BANK DOWN
Bank Down
(Bank Mode)
Displays queued
Bank, flashing
No change Queues previous Bank
Set List Select
(Set List Mode)
Displays Set List
selection
No change Selects Set List
BANK UP
Bank Up
(Bank Mode)
Displays queued
Bank, flashing
No change Queues next Bank
Set List Select
(Set List Mode)
Displays Set List
selection
No change Selects Set List
