USB Audio
9•8
Windows® - Line 6 Audio-MIDI Devices
The following settings are the same for Windows® XP, Windows Vista® or Windows® 7,
unless otherwise noted.
Launch the Line 6 Audio-MIDI Devices from within the Windows® Control Panel.
On Windows® systems, POD HD Pro offers both a DirectSound and ASIO® recording
driver for maximum compatibility with audio & multimedia software applications. It is
always recommended that you select the ASIO® audio driver within your audio software,
if supported, since this offers higher performance. When prompted for ASIO® driver
settings, this dialog is where you will make them.
3
2
1
4
7
8
65

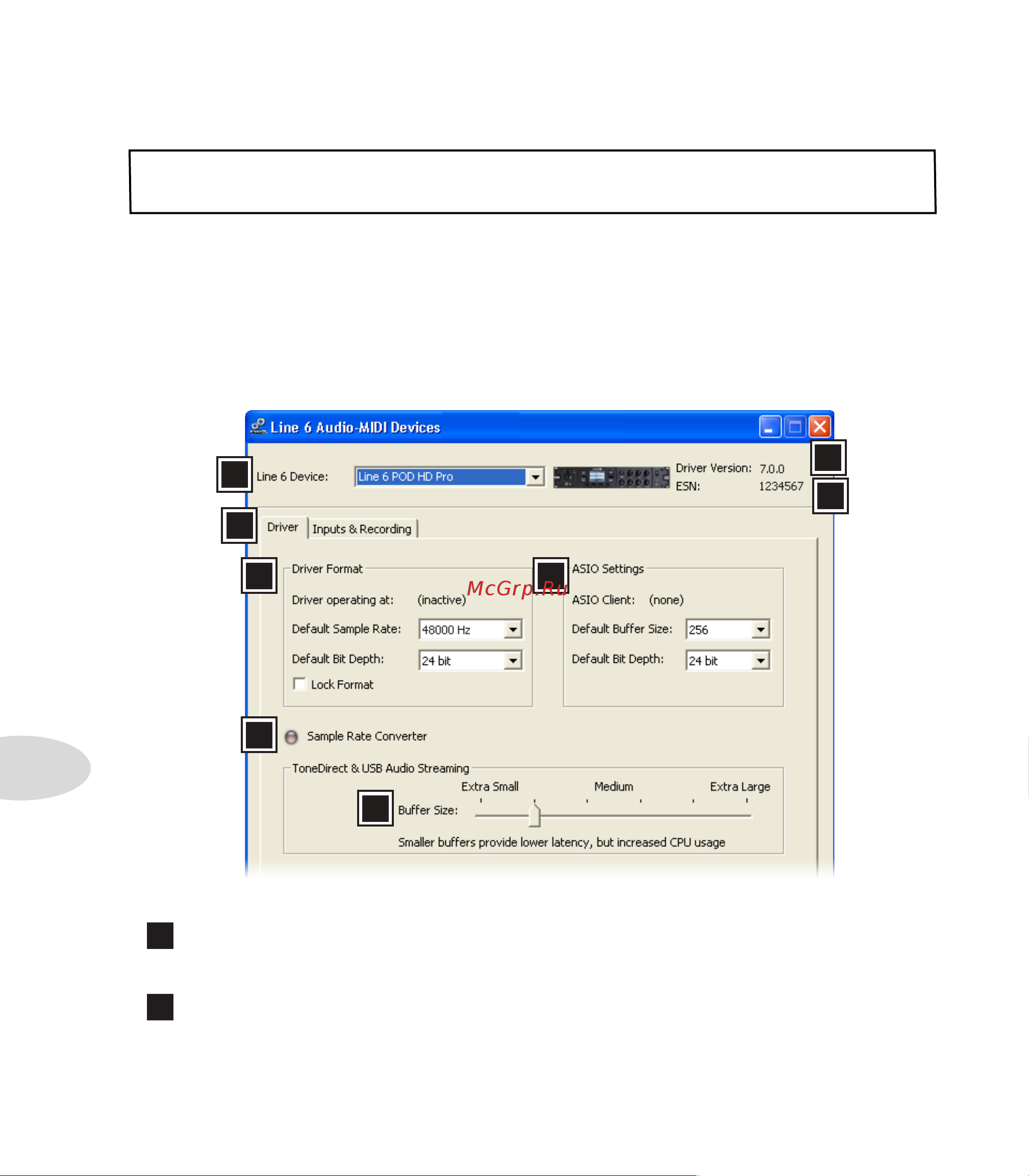

The Line 6 Audio MIDI Devices - Driver tab (Windows® XP)
1
Device Selector - Select your POD HD Pro here. If you have more than one supported
Line 6 audio device connected, each will be selectable in this list.
2
Driver Version - Displays the current device’s installed driver version number.
