System Setup
2•15
Variax Bass 700 & 705

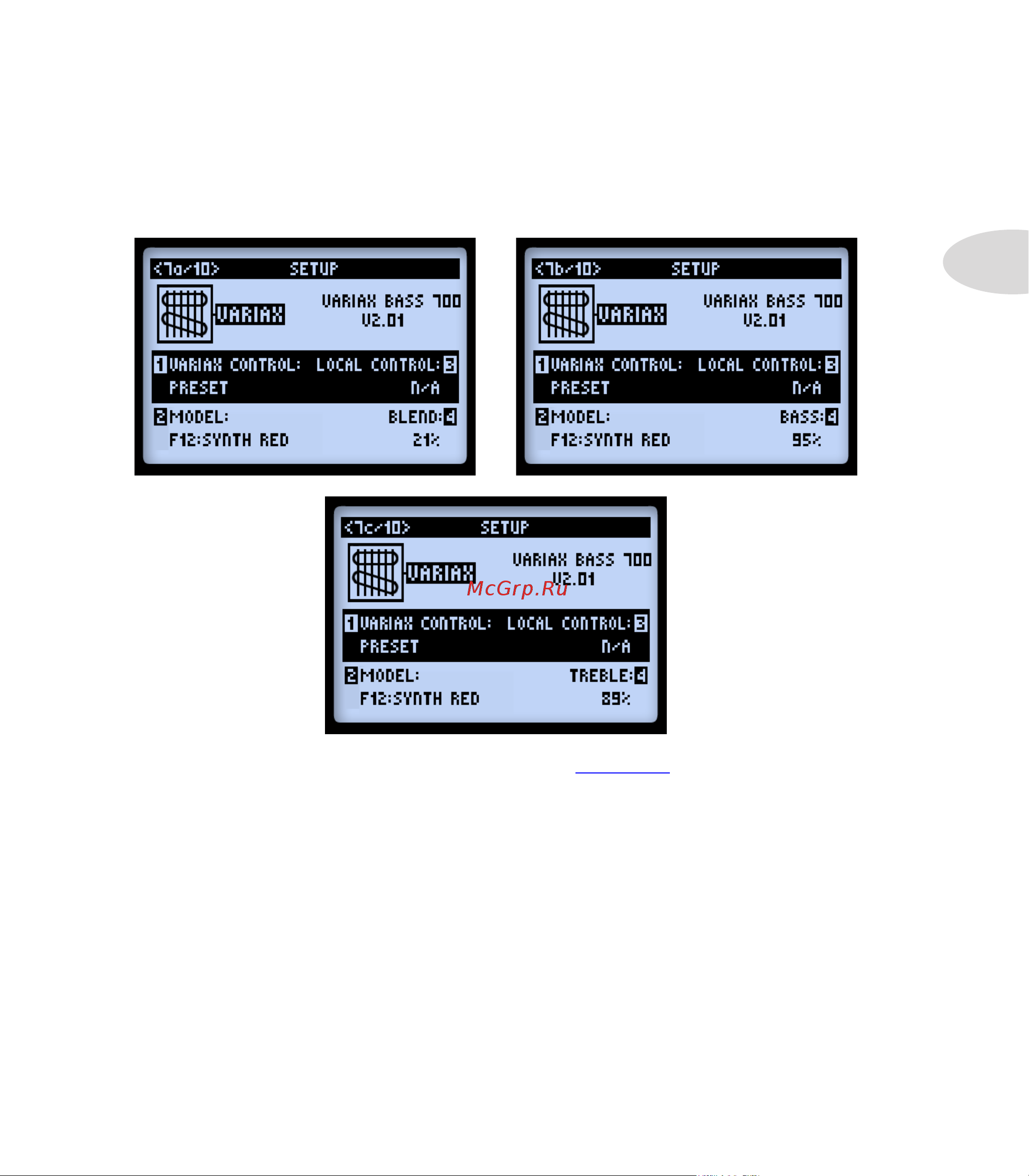

ForaVariaxBass,you’llseethreeSetuppages,7a,7b&7ctoaccommodateallthecontrols
ontheBass.MultifunctionKnobs1,2&3onallpagesarecommoncontrols.Knob4on
each page is unique.
• Variax Control (Knob 1 - pgs. 7a, b & c): See page 2•11.
• Model (Knob 2 - pgs. 7a, b & c): Selects the Variax Bass Guitar Model. Choose the
“Don’t Force” option if you prefer to not have the Variax Bass Model changed by the
Model value saved within any POD HD Pro preset.
• Blend (Knob 4 - pg. 7a): Adjust this controls the balance between a neck and bridge
pickup tone on the Bass.
• Bass (Knob 4 - pg. 7b): Adjusts the amount of bass frequencies.
• Treble (Knob 4 - pg. 7c): Adjusts the amount of treble frequencies.
