FX Models
7•9
Preamp & EQ Models

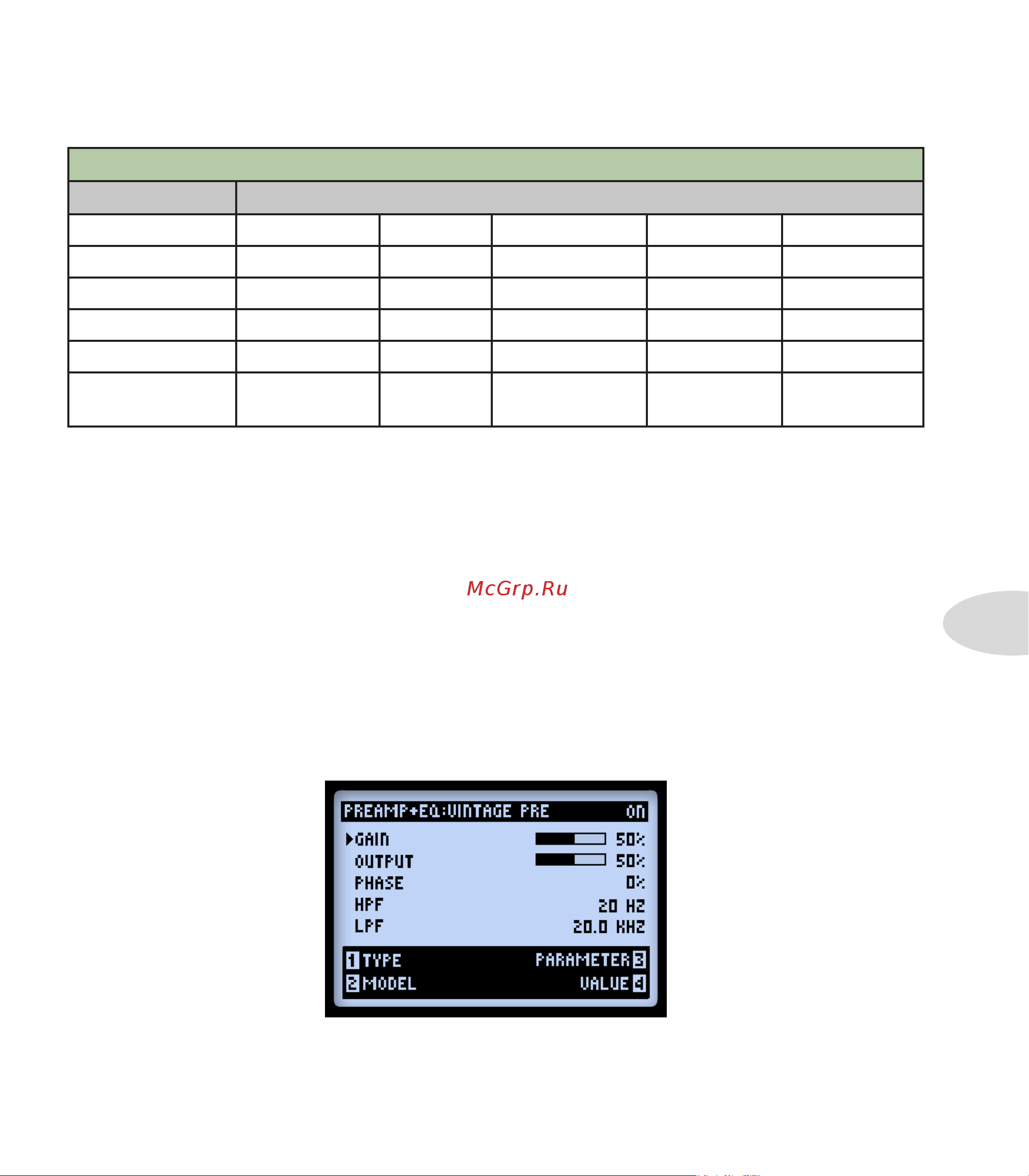

Preamp+EQ Models - Parameter Reference Table
Model Parameters
Graphic EQ 80Hz 220Hz 480Hz 1.1kHz 2.2kHz
Parametric EQ Lows Highs Freq Q Gain
Studio EQ Low Freq Low Gain Hi Freq Hi Gain Gain
4 Band Shift EQ Low Low Mid Hi Mid Hi Shift
Mid Focus EQ Hi Pass Freq Hi Pass Q Low Pass Freq Low Pass Q Gain
Vintage Pre Gain Output Phase Hi Pass
Filter
Lo Pass Filter
Common Parameters
The following parameters are common to EQ Models.
• Frequency (as well as Low, Mid, High): Selects the center frequency or range for the
particular EQ Band. (The Graphic EQ model includes “fixed” Bands where the gain
is adjustable for each.)
• Q: Adjusts the frequency width or shape of the frequency band filter.
• Gain: Adjust the output level of the particular Band. (The Gain parameters accessed
by Multi-function Knob #4 adjust the overall output level.)
Vintage Pre
