System Setup
2•14
• Variax Control (Knob 1): See page 2•11.
• Model (Knob 2): Selects the Variax Model & pickup position setting. Choose the
“Don’t Force” option if you prefer to not have the Variax guitar’s model changed by
the Model value saved within the POD HD Pro presets.
• Local Control (Knob 3): This feature is not applicable for first generation Variax
instruments, therefore, no options are available.
• Tone (Knob 4): Allows the Variax guitar’s Tone knob value to be saved with the
current preset, if desired.

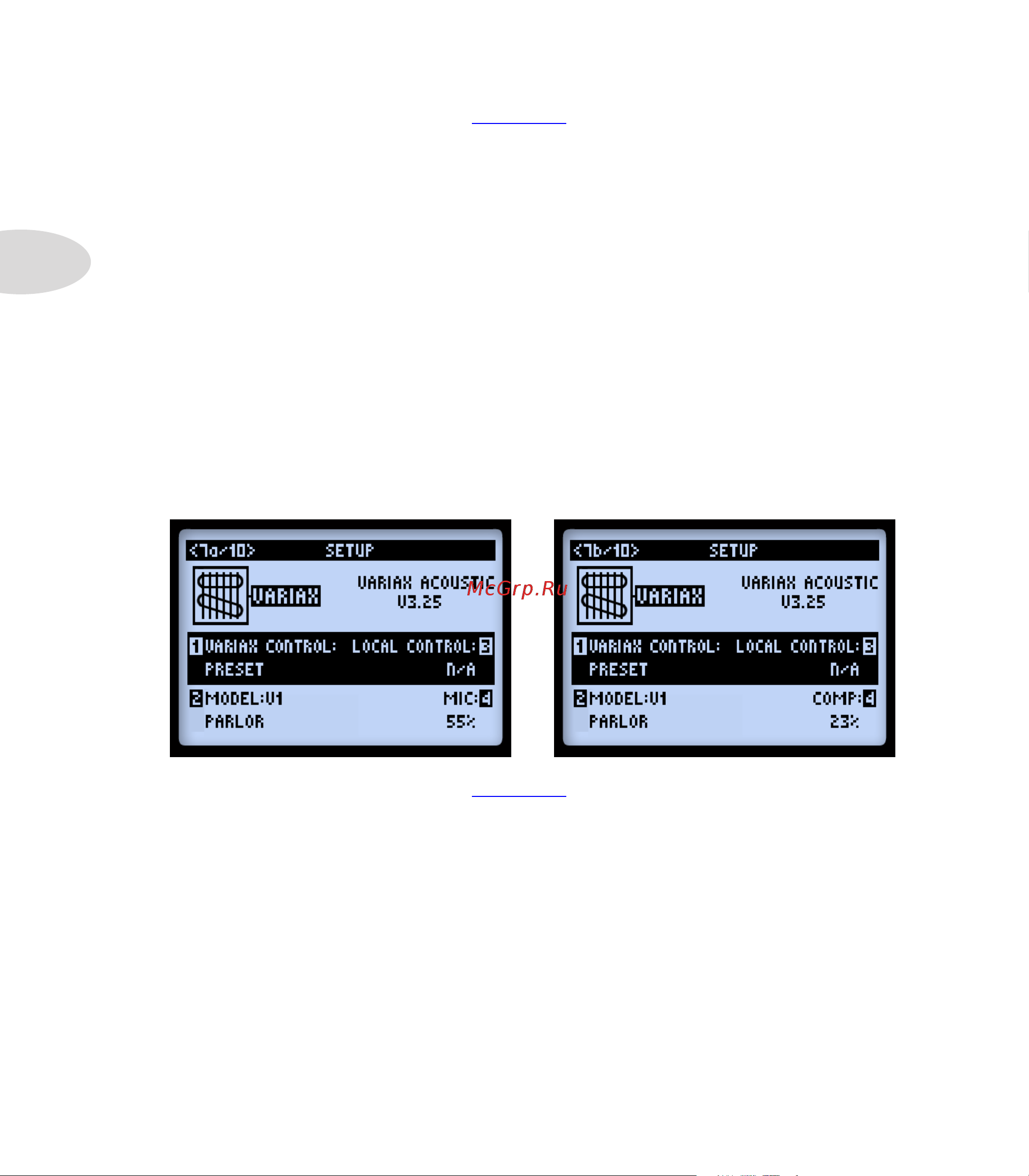

Variax Acoustic 700
ForaVariaxAcousticGuitar,you’llseetwoSetuppages,7aand7b,toaccommodatethe
additionalcontrols.MultifunctionKnobs1,2&3arecommoncontrols,shownonboth
Setup pages. Knob 4 is unique on each page.
• Variax Control (Knob 1): See page 2•11.
• Model (Knob 2 - pgs. 7a & b): Selects the Variax Acoustic Model. Choose the “Don’t
Force” option if you prefer to not have the JTV local Model changed by the Model
value saved within the POD HD Pro presets.
• Local Control (Knob 3 - pgs. 7a & b): This feature is not applicable for Variax
Acoustic, therefore, no options are available.
• Mic Position (Knob 4 - pg 7a): Changing this value simulates changing the mic
position on the acoustic from closer to further from the soundhole.
• Comp (Knob 4 on pg 7b): Selects the amount of compression effect applied to the
Variax Acoustic tone.
