LINE 6 POD HD Pro [131/135] Using pod hd pro fbv as a midi controller
![LINE 6 POD HD Pro [131/135] Using pod hd pro fbv as a midi controller](/views2/2009077/page131/bg83.png)
Appendix C: MIDI
C•5
Using POD HD Pro/FBV as a MIDI Controller
Note: Please refer to “FBV Controller Devices - Footswitch & Pedal Mapping” on page
B•5
the see how your specific FBV device’s switches & pedals are mapped to the various
POD HD Pro assignable controllers (FS 1-8, EXP 1, EXP 2, TOE SWITCH, etc.)
You can configure any number of your POD HD Pro Presets to include customized MIDI
Control assignments for most FBV footswitches and Pedal controls. This allows you to
use POD HD Pro and FBV to remotely control other hardware or software, such as Line 6
M13,M9,POD®Farm2Plug-In,anotherPODHDProorHD500device,oranyother
Line 6 or 3rd party products that respond to external MIDI control!
Note: Footswitches FS5 - FS8 will only transmit your configured MIDI assignments when
their Setup option is set to the FS5 - FS8 “Pedalboard Mode” - see ““Page1,Setup:Utilities
Options” on page 2•2
. Also, when POD HD Pro is actively in Looper Mode, fixed MIDI
CCs are transmitted from some footswitches - see “Looper Mode Footswitch Behaviors”
on page C•8
.
The MIDI ASSIGN Screen
The MIDI ASSIGN screen is where you configure custom MIDI commands. To access
the MIDI ASSIGN screen, start on the Home View page and press and hold the MOVE
button. All settings in this screen are saved per Preset.
ENTER
DBL PRESS TO ASSIGN CTL
MOVE
AMP & FX ON / OFF

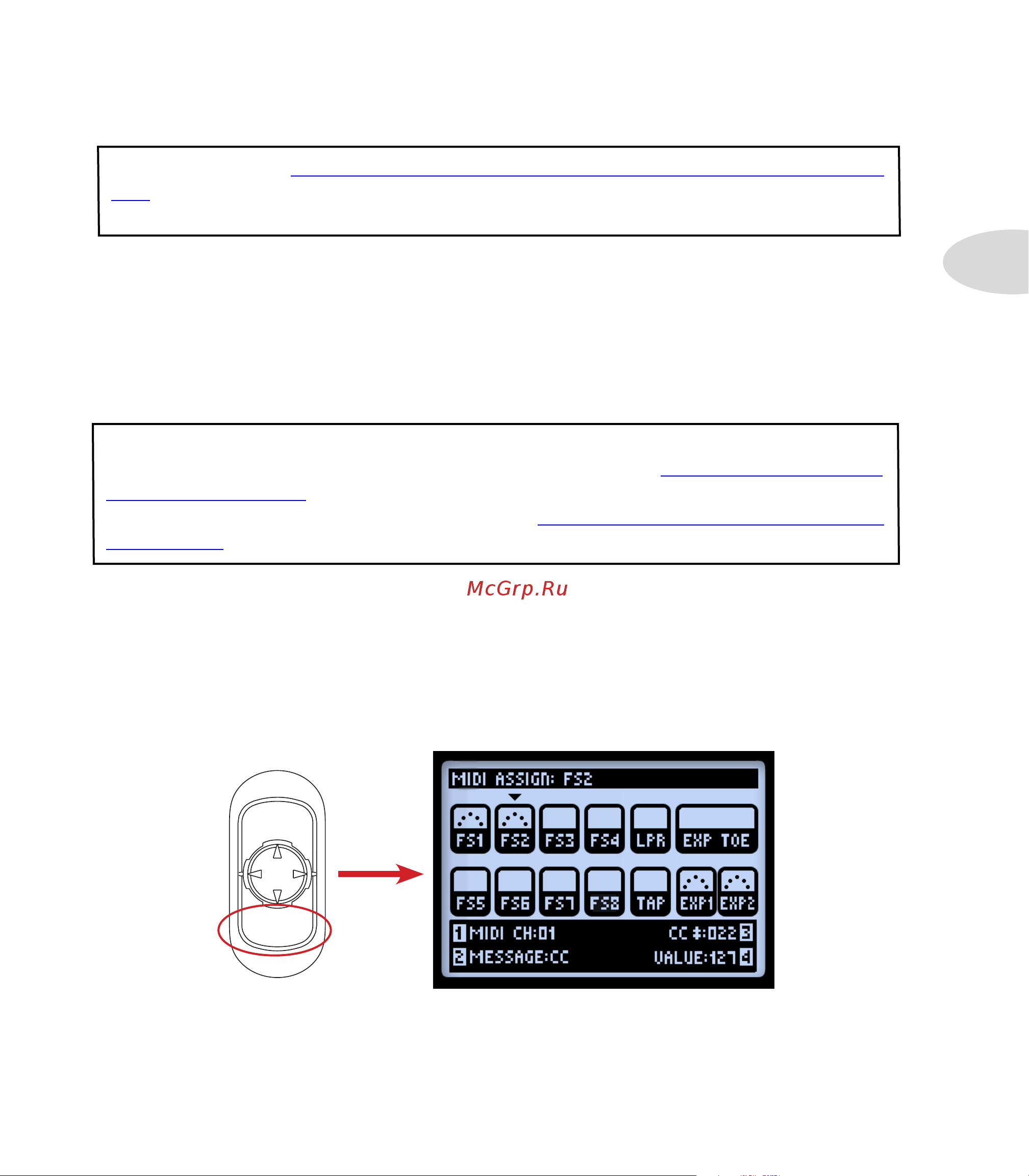

Press and hold the MOVE button to display the MIDI ASSIGN screen
