Appendix C: MIDI
C•4
The following describes the automatic MIDI messages sent when these POD HD Pro/FBV
controls are accessed when using specific gestures.
SAVE
HOLD FOR SYSTEM & I/O
VIEW
P
R
E
S
E
T
S
ENTER
DBL PRESS TO ASSIGN CTL
MOVE
AMP & FX ON / OFF
PRESETS Knob
ENTER Button
4-Way Nav. Disc
Arrow Buttons

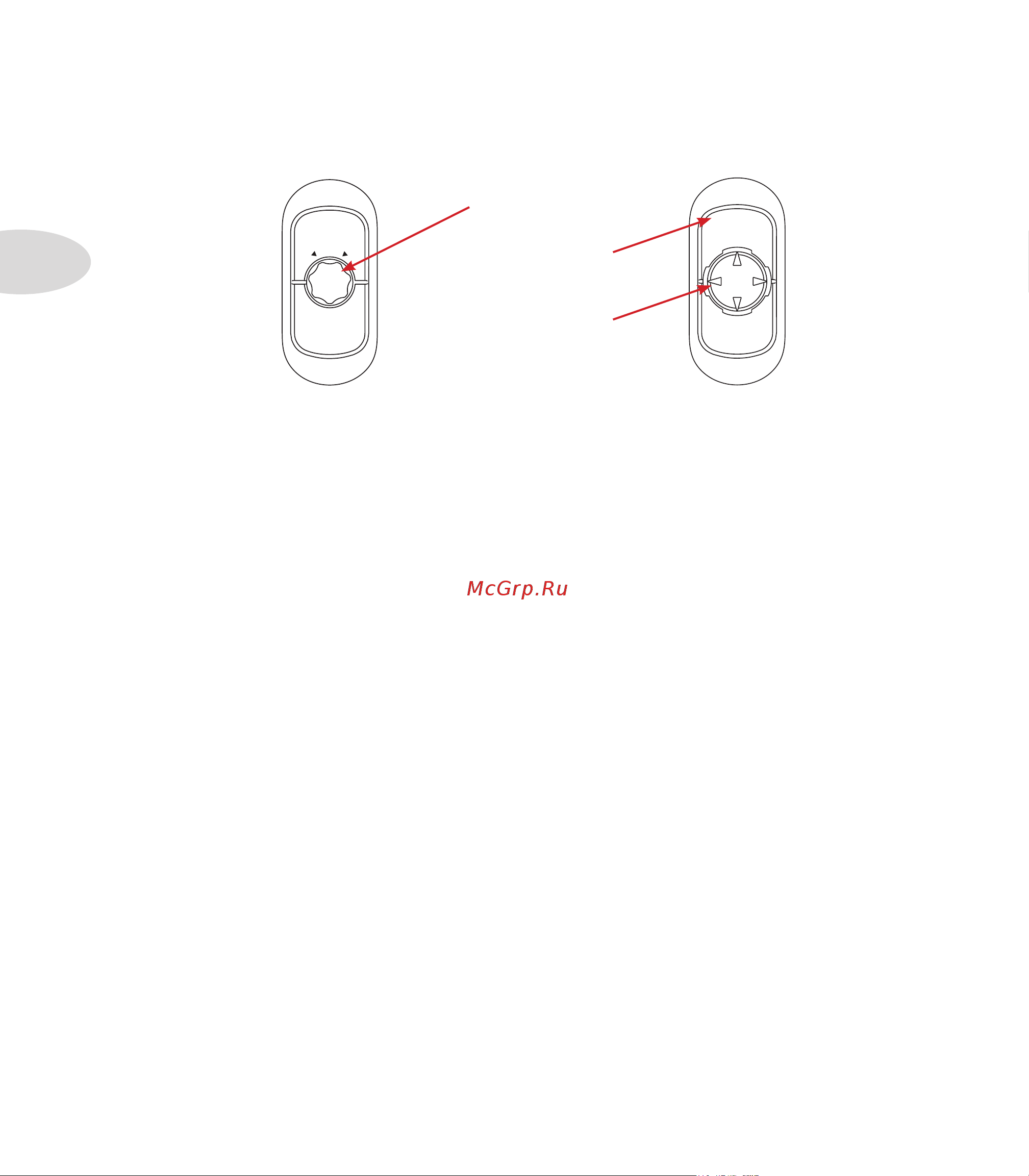

POD HD Pro Controls that transmit Bank & Program Changes
• Turning the PRESETS Knob: Internally on POD HD Pro, turning clockwise and
counter-clockwise increments & decrements through Presets in the current Set List.
These actions also send the following MIDI messages:
• Clockwise turn: Transmits a Program Change - Increment message.
• Counter - clockwise turn: Transmits a Program Change - Decrement message.
• Press FBV Footswitches A, B, C & D: Internally this selects the respective Preset
within the current Bank. These switches also transmit MIDI Program Change -
Fixedmessages,withValuesfrom0to64.Thespecicvalueisdeterminedbythe
currentBank(e.g.-forBank1thesefourfootswitchessendValues0-3,forBank2
theysendValues4-7,etc.)
• Press PRESETS Knob > Press Nav. Disc Arrow Button > Press Enter Button:
Internally, this sequence calls up the Set Lists screen, selects a Set List (1 - 8)
and loads the Set List. This sequence also transmits a MIDI Bank Change - Fixed
message,withaValueof0through7,respectively,whenselectingSetList1-8.
