System Setup
2•10
• Digital Output (Knob 1): Selects the type of output mode signal.
• Match Outputs: Uses the setting as configured on the Setup:Outputs screen - see
page 2•8.
• Dry Input: Your Source Input signal with no Amp, Cab, Mic, “E.R.” or FX
processing applied. (Handy for recording a dry signal in your DAW, to which you
can add a Plug-In or “re-amp” later!)
• Sample Rate (Knob 2):Selectsthesamplerate:44.1kHz,48kHz,88.2kHzor96kHz.
When connecting to another device’s S/PDIF or AES/EBU input, always be sure to
set both units to utilize the same sample rate.
• Digital Level (Knob 3): Increases the amplitude of the S/PDIF or AES/EBU signal:
0dBto+12dB.
• Digital Format (Knob 4): Choose between settings for the S/PDIF or AES/EBU
digital outputs.

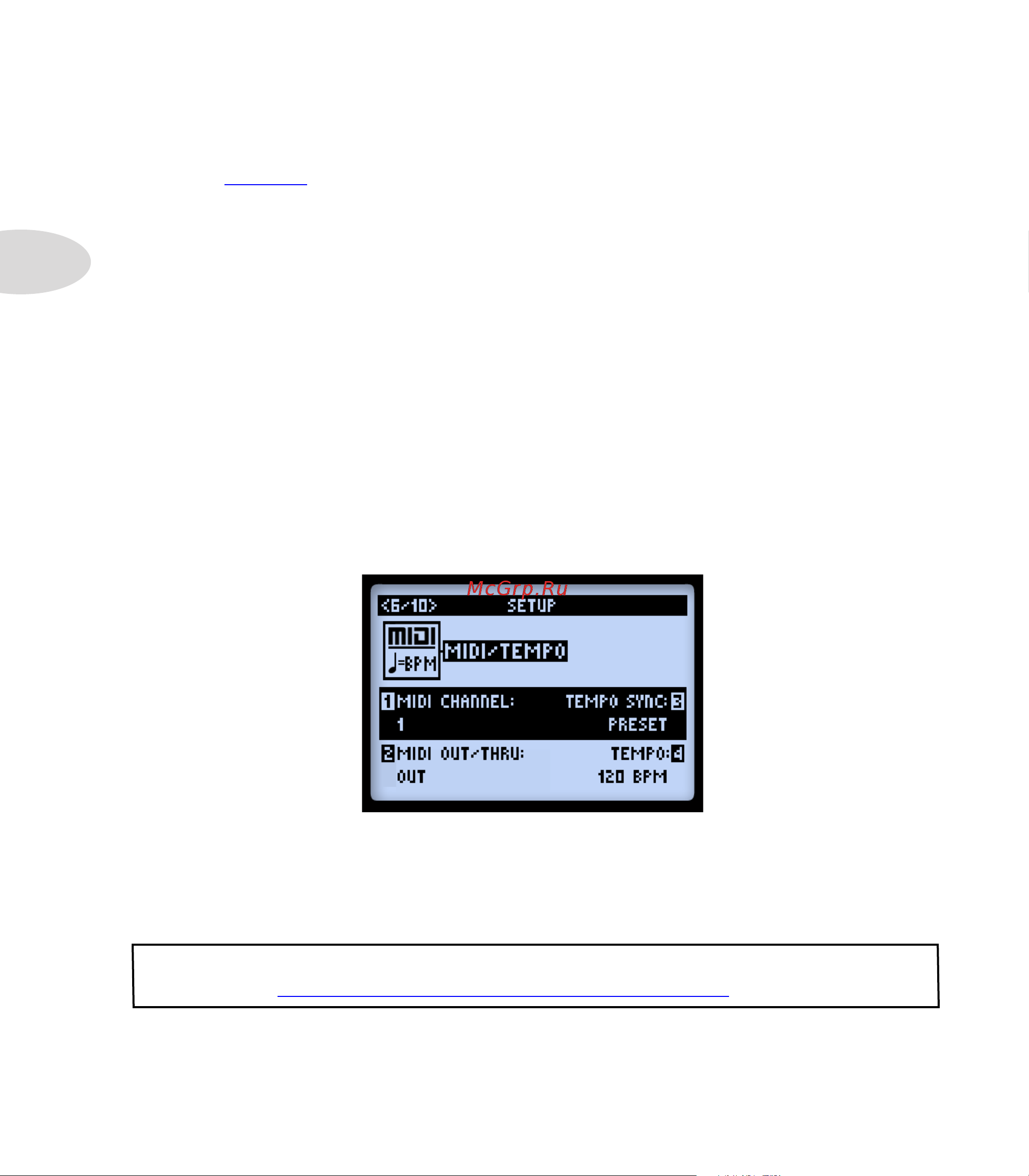

Page 6, MIDI/Tempo Options
• MIDI Channel (Knob 1): Sets the “System” MIDI Channel that POD HD Pro
utilizes for both receiving and sending MIDI communication via the MIDI DIN
Input/Output. Choose any individual Channel 1 - 16, or “Omni” for all Channels.*
This is a global setting.
*Note: The MIDI Channel selected here also affects the MIDI Channel settings utilized by
L6 LINK - see “Page 10, Setup: L6 LINK Control” on page 2•17.
• MIDI Out/Thru (Knob 2): Allows the MIDI Out DIN to be switched between a
MIDI Output versus MIDI Output + Thru.
