System Setup
2•2

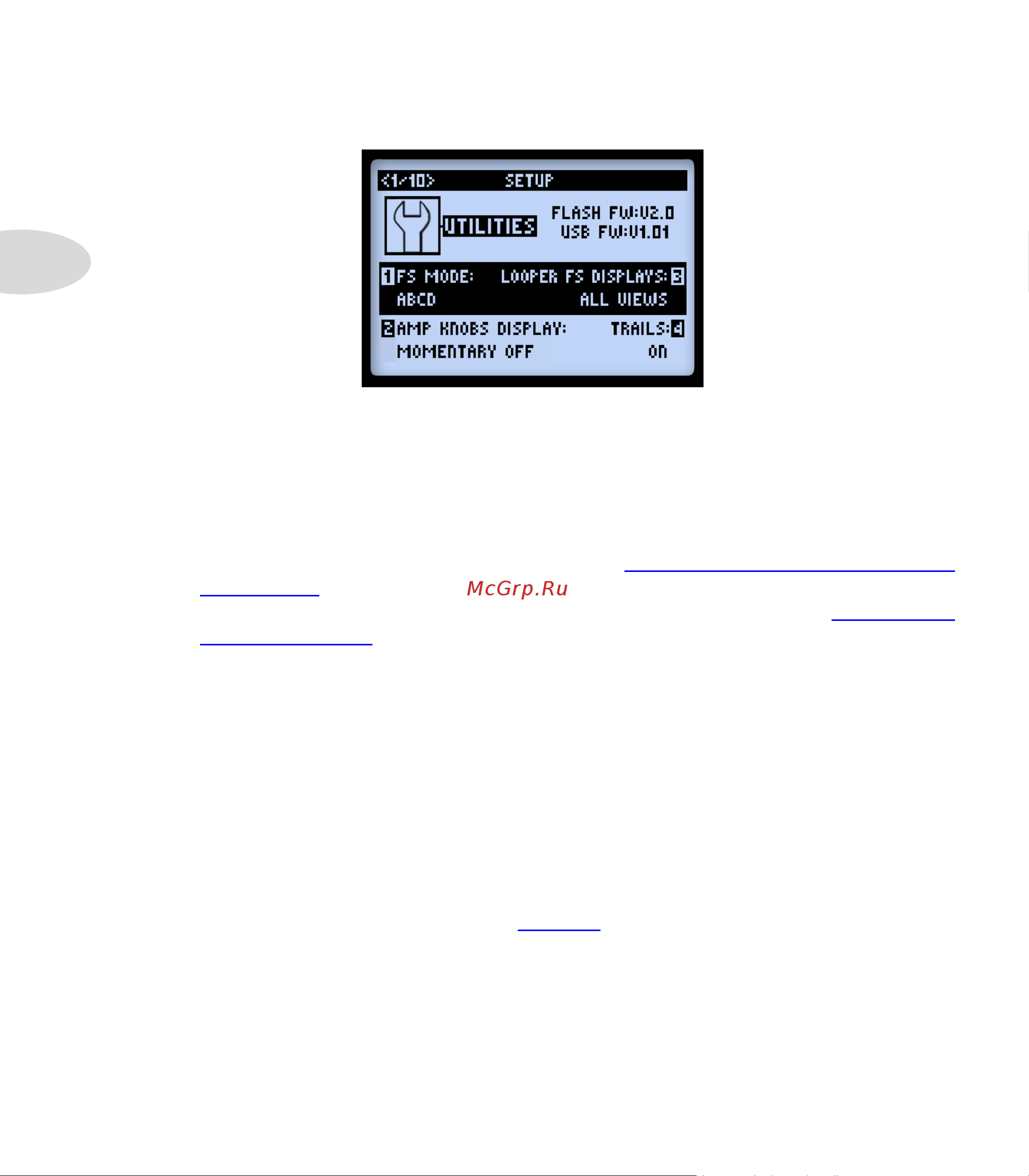

Page 1, Setup:Utilities Options
The top portion of the screen lists the Flash Memory and USB Firmware versions currently
installed on your POD HD Pro device. The lower portion of the screen offers four options,
adjustable using the Multi-function Knobs 1 - 4.
• Footswitch Mode (Knob 1): This option applies to a connected Line 6 FBV
Controller’s A, B, C & D footswitches (also see “Appendix B: FBV Foot Controllers”
on page B•1). You’ll see your POD HD Pro Performance View screen reflect the
functions of these buttons according to the mode selected here (see “Performance
View” on page 1•3). This setting is global.
• In “ABCD” Mode: The A, B, C & D FBV footswitches recall the current Bank’s
Presets A-D.
• In “FS 5-8” Mode: The A, B, C & D FBV footswitches toggle the FS 5-8 assigned
Models On/Off.
• Amp Knobs Display (Knob 2): When set to “On,” allows the LCD screen to
momentarily display the actual Amp Tone Knob values whenever adjusting any
physical amp knob. This setting is global.
• Looper FS Display (Knob 3): When Looper Mode is active (Looper Mode can be
accessed when an FBV device is connected), this option determines how and when
the Looper screen is displayed (see page 8•1). This setting is global.
• All Views: When Looper Mode is On, the Looper screen is always displayed.
• Performance View: When Looper Mode is On, displays the Looper screen, or the
other Performance View (Signal Flow or Big User) screens, by toggling the VIEW
button. This option can be useful for referencing your Presets or adjusting Models
while Looping.
