◊ Only use the -20 dB switches if you are sure the ULTRA-DI is clipping (overloading)

and not your mic pre-amp. Always use as little attenuation as possible to get the

best possible signal-to-noise ratio.

(6) OUTPUT. This is the balanced microphone level output of the ULTRA-DI. Connection to

the microphone input should be made with a standard high quality balanced cable.

◊ Never connect pin 2 or 3 to pin 1 and never disconnect the shield from pin 1,

or the unit will not work on phantom power.

(7) Use the GROUND LIFT switch to either connect the ground of input and output or

keep them completely separate. Depending on the grounding of the connected devices

linking or disconnecting will reduce hum or prevent ground loops. GROUND LIFT ON

means no interconnection.

(8) BATTERY COMPARTMENT. Loosen the screw to open the compartment and to replace

the 9V battery. When the ULTRA-DI is switched on battery power the LED blinks, when it

stops blinking it is time to change the battery.

2. DI100 Congurations

The next section will show several dierent ways the ULTRA-DI can be hooked up.

2.1 Tapping signal from the (Bass) guitar

Microphone Input

Out

DI100

Link

Out

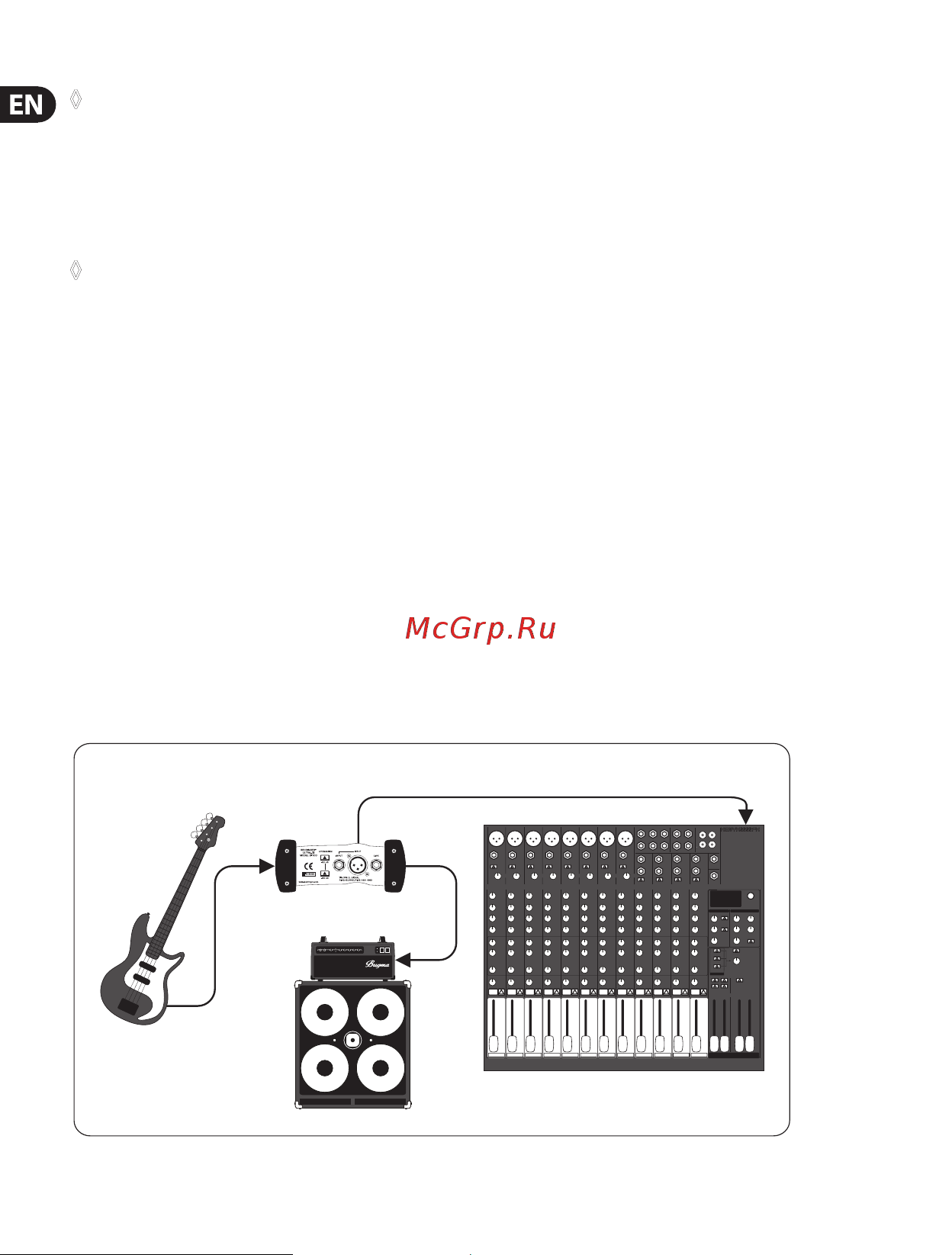

Fig 2.1: Guitar

➟

Guitar Amp/Mixerv
