9 ULTRA-DI DI100 User Manual
This gure shows the standard application of any direct injection box. The signal to the
amplier is unaected, it is just tapped o to be routed to the microphone input of the mixer.
Especially bass guitars benet from this application. It is dicult to nd a microphone which
handles high level low frequencies well and with a linear frequency response. Using the
ULTRA-DI will give you clean and crisp sound. Connect the ULTRA-DI after any eects devices
so that their eect will be heard over the P.A.-system or on the recording. If the mixer provides
phantom power between 20 V and 52 V, the internal battery of the DI100 will automatically be
detached. You should chose this possibility whenever possible to save battery power.
2.2 Converting the output of a Keyboard / DJ-mixer /
Headphone plug
Microphone
Inputs panned
Left & Right
To Monitor
In
R
L
Out
In Out

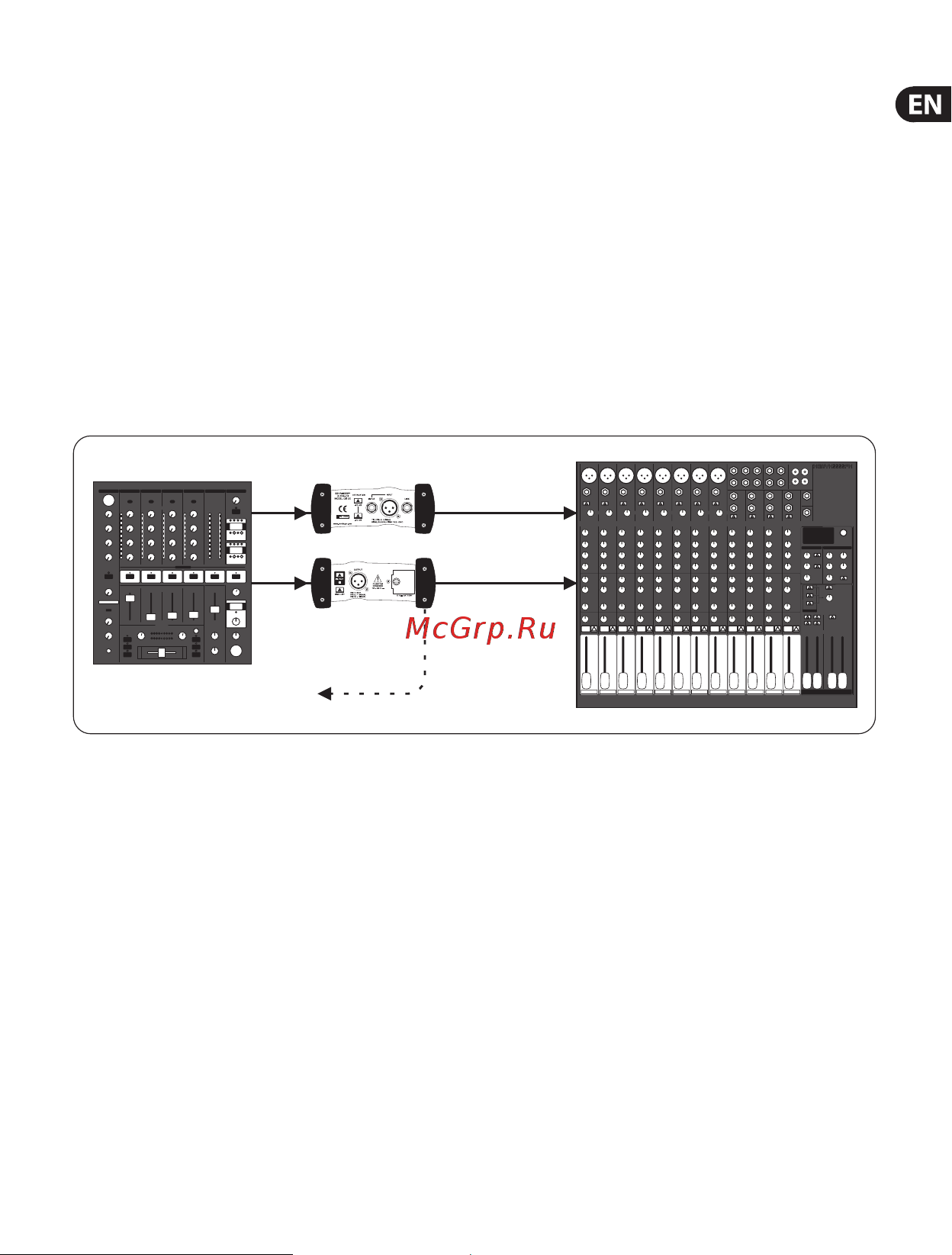

Fig 2.2: DJ-mixer
➟
2 x DI
➟
mixer
This conguration can be used with a keyboard, DJ-mixer, headphone output, drum kit or
any (stereo or mono) line source. In all cases where you want to run long lines, for instance
to the FOH (Front Of House) desk. In most cases the best setting is achieved by depressing
one of the -20 dB pad buttons to avoid overloading the FOH desk input. The signal can be
linked through to another amplier, if the keyboard player / DJ / etc. wants to have a monitor
connected independent of the foldback mix. The ULTRA-DI acts as both a ground isolator and
an unbalanced to balanced converter.
