ASUS Xonar D1

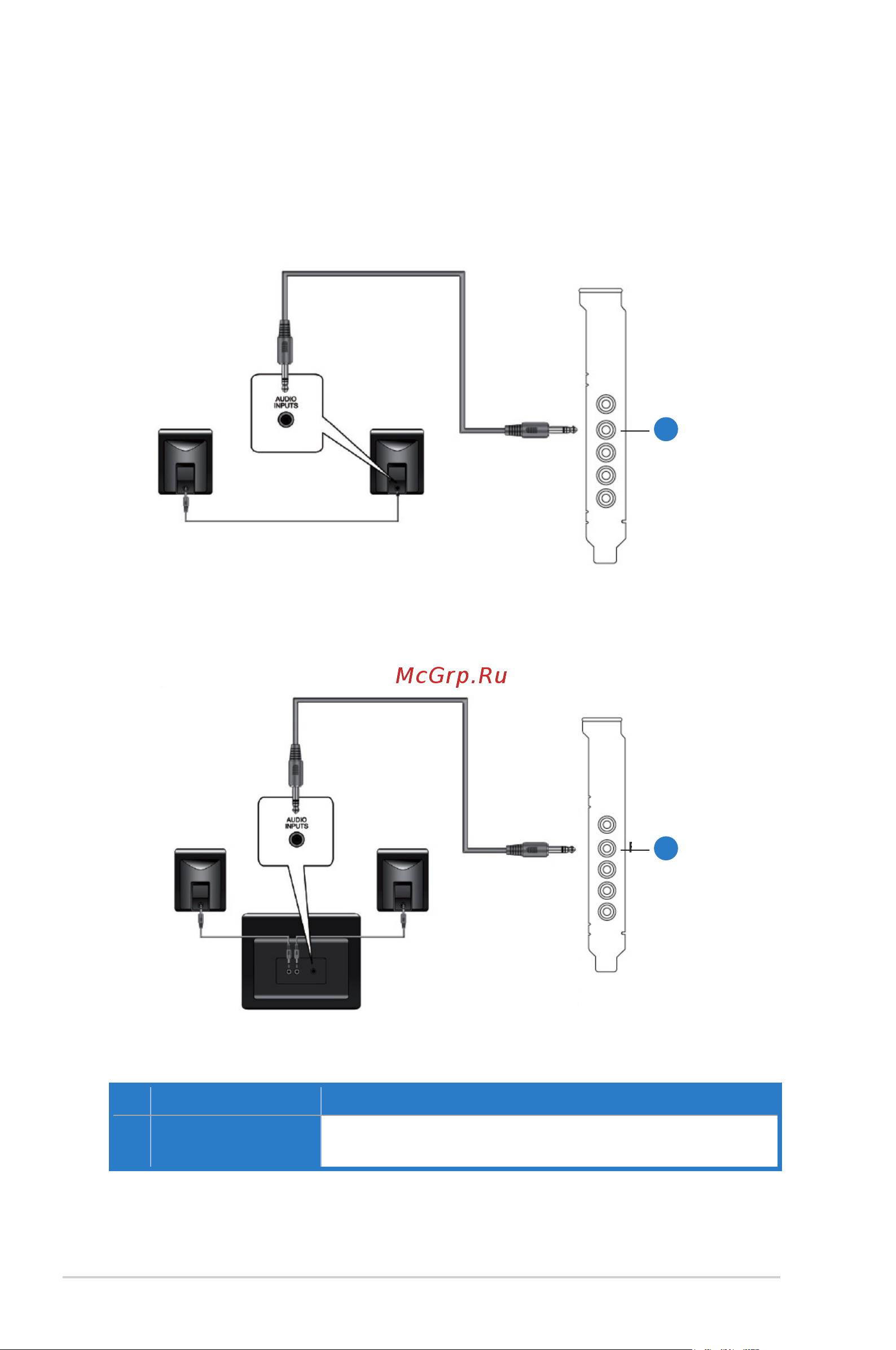

5.3.2 Connecting 2/2.1 Channel Speakers
No Item Description
1 Front Out/Headphone
Jack
Connect the 2/2.1 speaker set’s 3.5mm plug into this Front
Out jack.
1
2 Speakers
2.1 Speakers
1
