21
ASUS Xonar D1

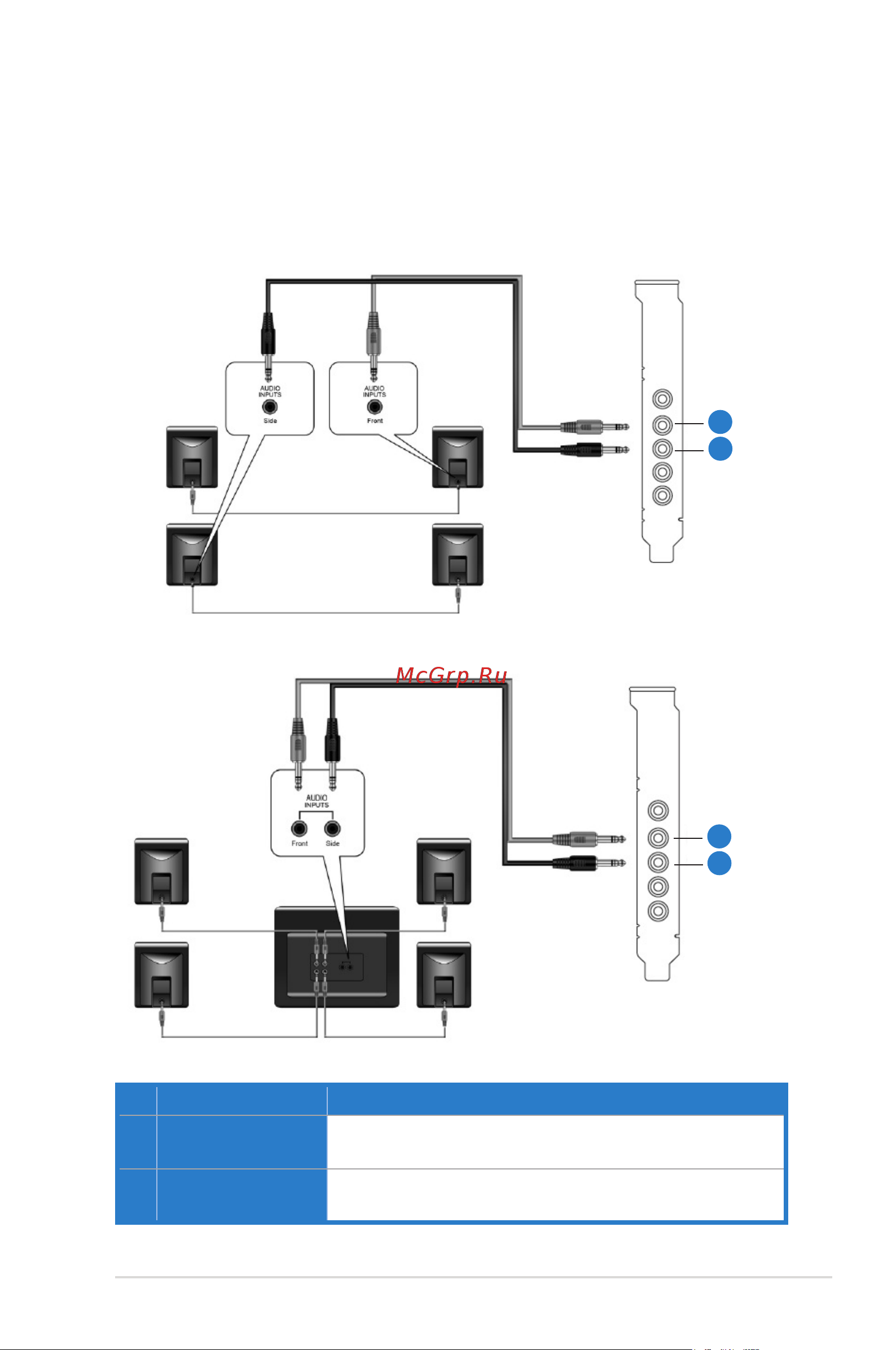

5.3.3 Connecting 4/4.1 Channel Speakers
No Item Description
1 Front Out
Connects to the Front input port of the 4/4.1 speakers with
the mini-jack cable.
2 Side Surround Out
Connects to the Surround input port of the 4/4.1 speakers
with the mini-jack cable.
1
2
1
2
4 Speakers
4.1 Speakers
