56
ASUS Xonar D1

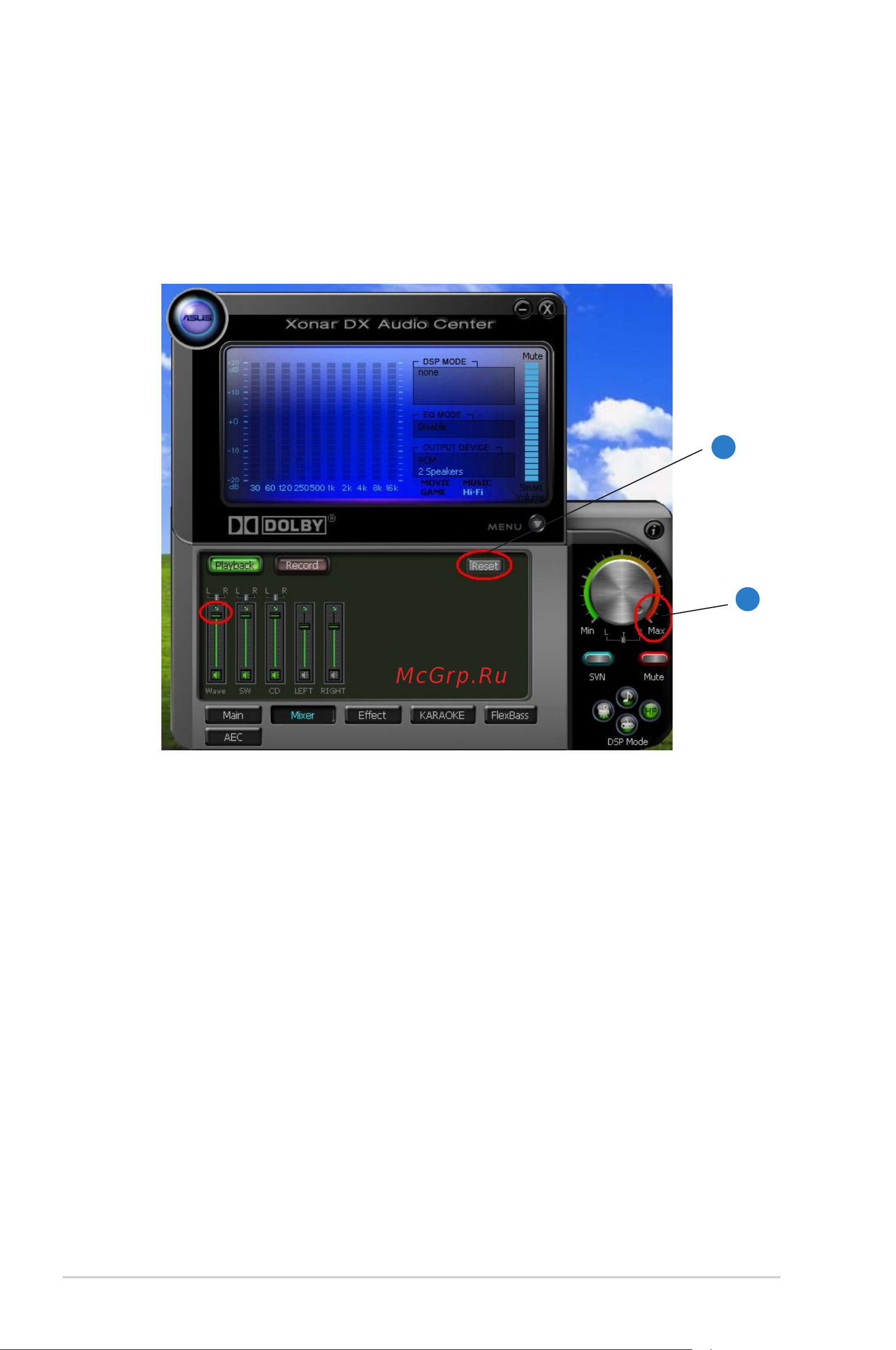

5. Click “Reset” on the playback volume mixer page to keep the volume setting
on default.
6. Turn the master volume to the MAX level (0dB)
5
6
