61
ASUS Xonar D1

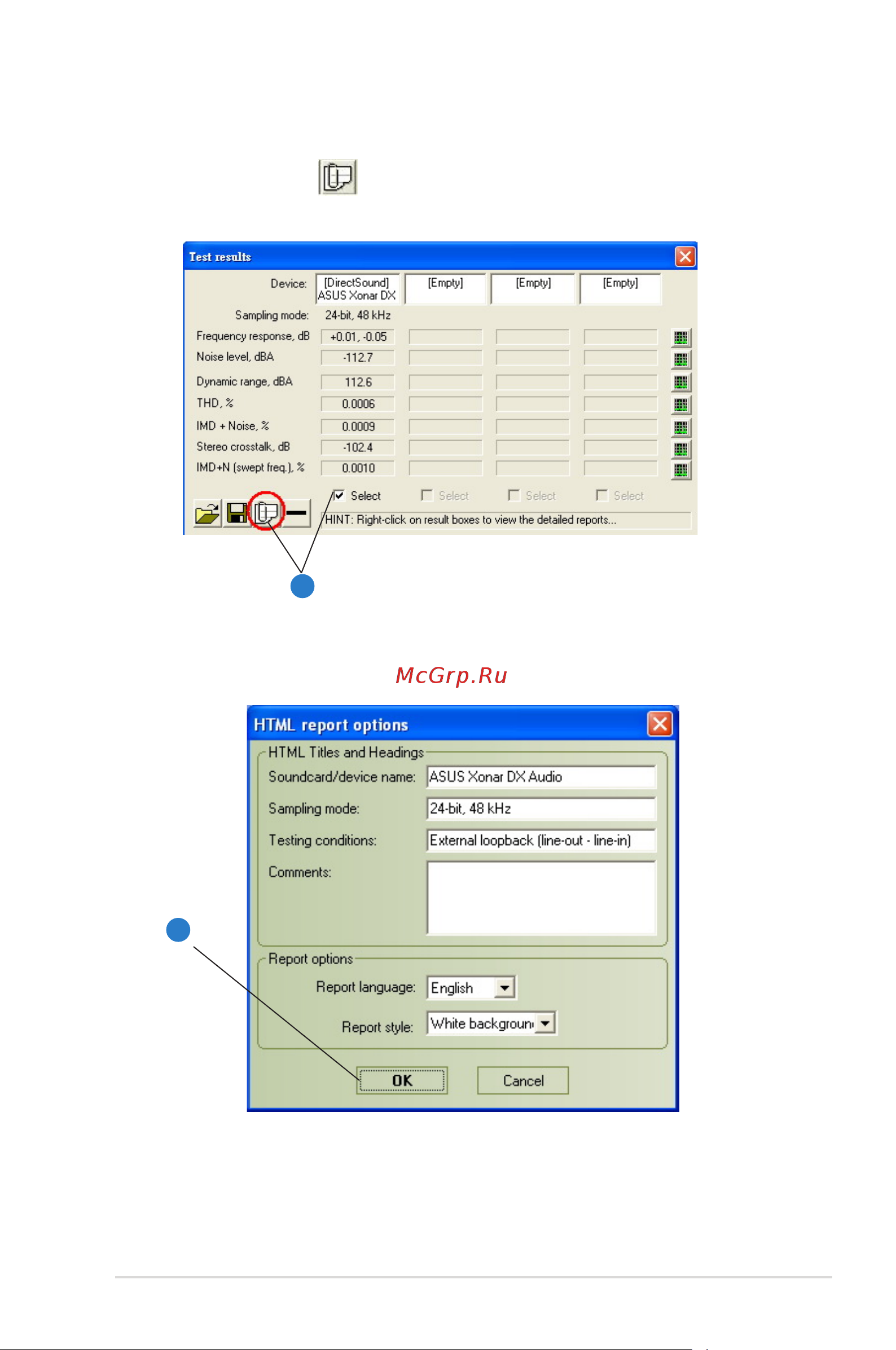

10. RMAA will pop up the Test results window. You can click the “Select”
checkbox and click to “Make html report”.
11. Check and key in the report name/options as follows and then click “OK”.
10
11
