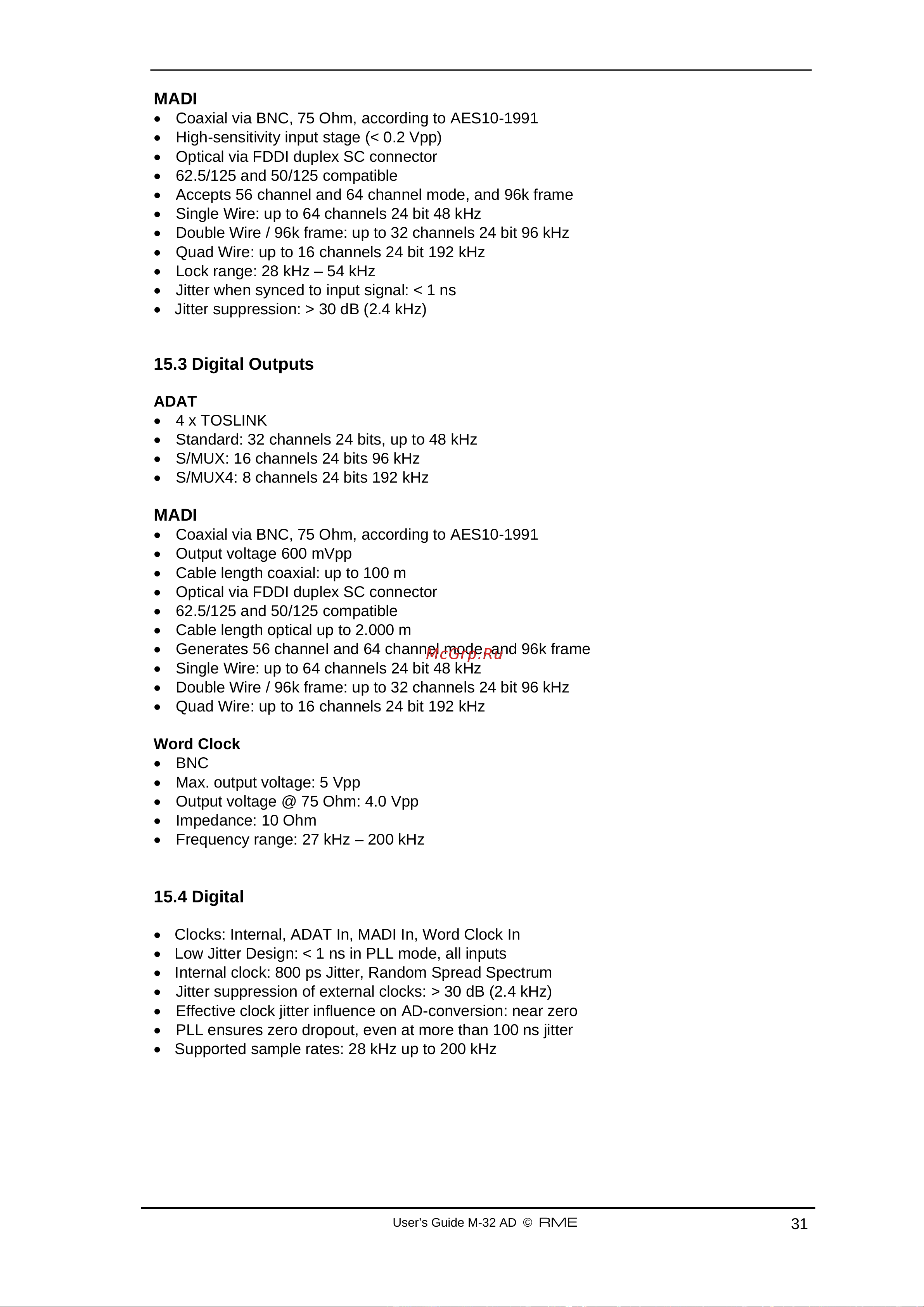

MADI

• Coaxial via BNC, 75 Ohm, according to AES10-1991

• High-sensitivity input stage (< 0.2 Vpp)

• Optical via FDDI duplex SC connector

• 62.5/125 and 50/125 compatible

• Accepts 56 channel and 64 channel mode, and 96k frame

• Single Wire: up to 64 channels 24 bit 48 kHz

• Double Wire / 96k frame: up to 32 channels 24 bit 96 kHz

• Quad Wire: up to 16 channels 24 bit 192 kHz

• Lock range: 28 kHz – 54 kHz

• Jitter when synced to input signal: < 1 ns

• Jitter suppression: > 30 dB (2.4 kHz)

15.3 Digital Outputs

ADAT

• 4 x TOSLINK

• Standard: 32 channels 24 bits, up to 48 kHz

• S/MUX: 16 channels 24 bits 96 kHz

• S/MUX4: 8 channels 24 bits 192 kHz

MADI

• Coaxial via BNC, 75 Ohm, according to AES10-1991

• Output voltage 600 mVpp

• Cable length coaxial: up to 100 m

• Optical via FDDI duplex SC connector

• 62.5/125 and 50/125 compatible

• Cable length optical up to 2.000 m

• Generates 56 channel and 64 channel mode, and 96k frame

• Single Wire: up to 64 channels 24 bit 48 kHz

• Double Wire / 96k frame: up to 32 channels 24 bit 96 kHz

• Quad Wire: up to 16 channels 24 bit 192 kHz

Word Clock

• BNC

• Max. output voltage: 5 Vpp

• Output voltage @ 75 Ohm: 4.0 Vpp

• Impedance: 10 Ohm

• Frequency range: 27 kHz – 200 kHz

15.4 Digital

• Clocks: Internal, ADAT In, MADI In, Word Clock In

• Low Jitter Design: < 1 ns in PLL mode, all inputs

• Internal clock: 800 ps Jitter, Random Spread Spectrum

• Jitter suppression of external clocks: > 30 dB (2.4 kHz)

• Effective clock jitter influence on AD-conversion: near zero

• PLL ensures zero dropout, even at more than 100 ns jitter

• Supported sample rates: 28 kHz up to 200 kHz
