K-ARRAY KJ50vb [11/16] Vertical dsp setting

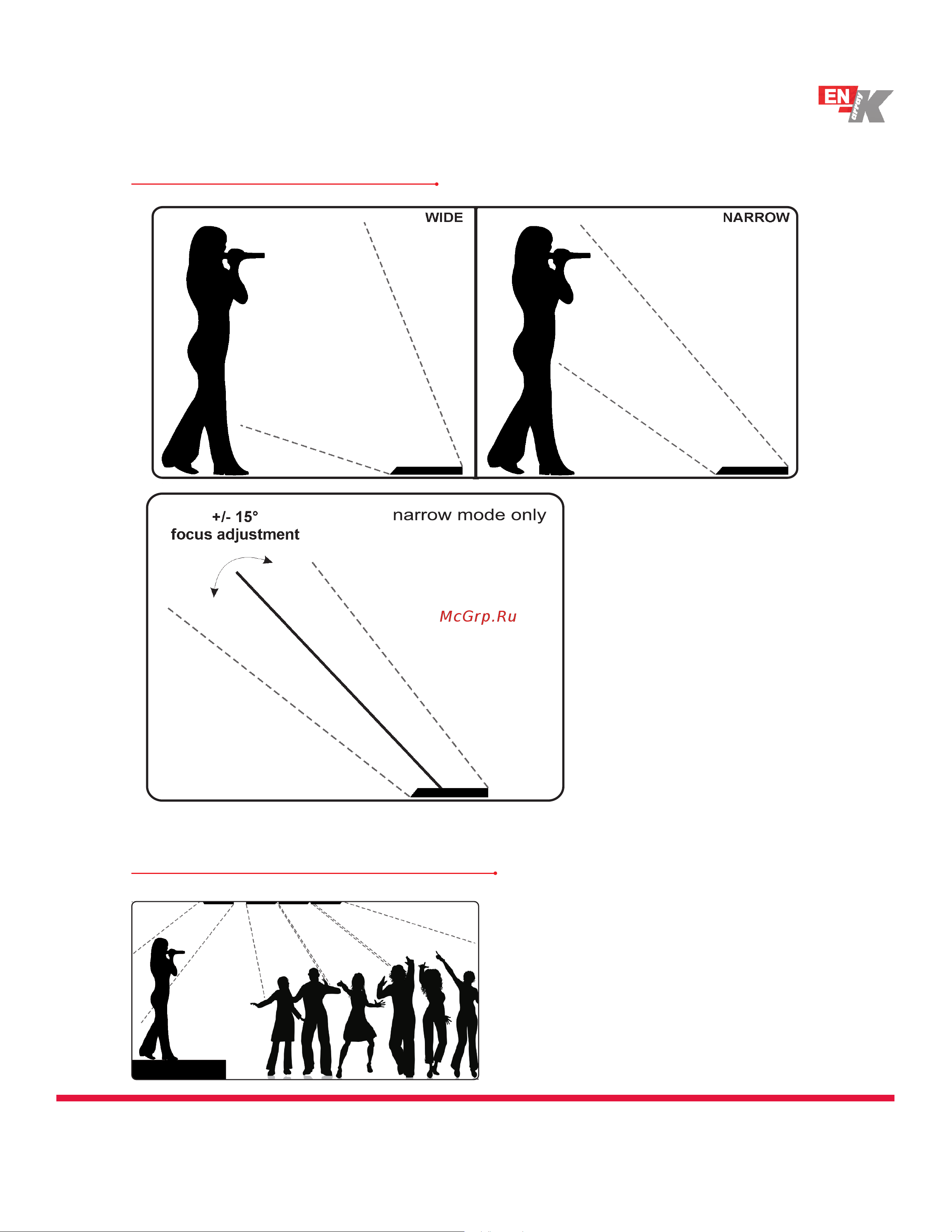

Vertical coverage is controlled

by DSP settings in the KA7-7

amplifier from 70° ‘ ’ to 10°

In ‘ ’ Mode the Vertical

focus can be adjusted by +/- 15°

8.2. VERTICAL DSP SETTING

A Ceiling Line Array Configuration is a unique

application of the KJ50vb.

Because of its very thin profile the KJ50vb is

perfectly suited for low-ceiling venues.

The vertical steering capability means that the

speakers do not need to be located directly

overhead but can be positioned off the stage or

dance floor.

8.3. CEILING LINE ARRAY CONFIGURATION
