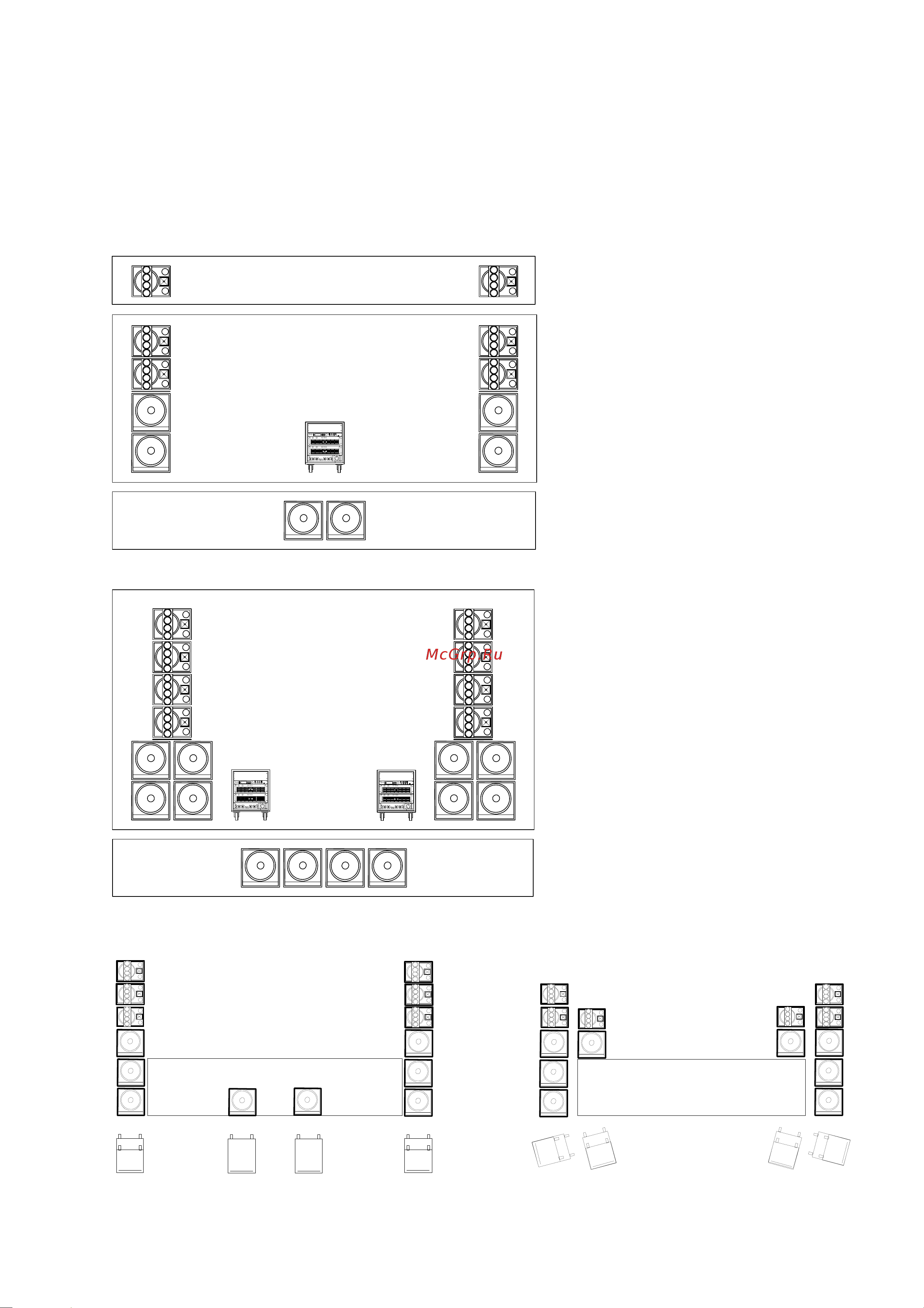

6. CONFIGURATIONS COBRA-2 SYSTEM ( SUB / TOP )
The following illustrations show the basic set of an active 2-way COBRA-2 SYSTEM comprising COBRA
TOP and COBRA SUB enclosures along with various expansion possibilities. The basic set comprising 4
COBRA TOPs and 4 COBRA SUBs is designed for high quality sound reinforcement for events in
smallish marquees and halls and for projection over distances of up to 40 metres providing coverage for
around 1000 square metres. The COBRA SYSTEM generates a maximum SPL of 137 dB L + 137 dB R in
the mid/high frequency range and up to 141 dB in the low frequency range.
DSP244
L 2400
L 2400
INPUT B
CP-44
RS-485
IN OUT
TOP/SUB N.C. TOP/SUB
B
N.C.
B
A
A
INPUT A
COBRA-2 SYSTEM
( BASIC-SET - 1 )
4x COBRA-TOP
4x COBRA-SUB
1x CSW 25 2,5°
1x CSR-12
EXTENSION : 2x COBRA-TOP
EXTENSION 2x COBRA-SUB
COBRA-2 SYSTEM Basic set and expansion variations
DSP244
L 2400
L 2400
INPUT B
CP-44
RS-485
IN OUT
TOP/SUB N.C. TOP/SUB
B
N.C.
B
A
A
INPUT A
COBRA-2 SYSTEM
EXTENSION - 1
( 2x BASIC-SET 1 )
8x COBRA-TOP
8x COBRA-SUB
2x CSW 25 2,5°
2x CSR-12
DSP244
L 2400
L 2400
INPUT B
CP-44
RS-485
IN OUT
TOP/SUB N.C. TOP/SUB
B
N.C.
B
A
A
INPUT A
EXTENSION 4x COBRA-SUB
COBRA-2 SYSTEM maximum sensible expansion variations
COBRA-2 SYSTEM
"long throw"
configuration
SUBs and TOPs straight
SUBs in front of stage
STAGE
COBRA-2 SYSTEM
"wide"
configuration
SUB und TOP as
front fill 15° inward
SUBs und TOPs
75° outward
STAGE
Arrangement for projection over long distances Arrangement for wide coverage
COBRA-2 SYSTEM
The COBRA-2 SYSTEM basic set
consists of 4 x COBRA TOPs, 4 x
COBRA SUBs, 1 X CSW 25 (2.5°
wedge set), a ready-wired amp rack
CSR-12 and the appropriate 4-wire
system cables for the loudspeaker
enclosures.
The integrated DSP 244 controller
(stereo 2-way mode) provides the two
integrated L2400 power amplifiers with
sub and mid/high frequency signals.
The signal from the power amplifiers is
available on the Speakon connectors
of the integrated CP-44 connector
panel. Each stack (L and R) is then
powered via a 4-wire system cable,
with the signal being looped through
from enclosure to enclosure.
A
lso to be found on the front panel are
the XLR sockets for LF control of the
rack, the 16A CEE plug for the 3-phase
power supply and the XLR In/Out
sockets for the RS-485 connection of
the DSP 244 (retrofittable).
For maximum expandability, the Cobra
Rack CSR-12 offers the possibility of
integrating a further power amplifier
with 3U (sub-extension or monitor) and
their power supply via the CP-44
connector panel
