6.3 Application as a matching amplier

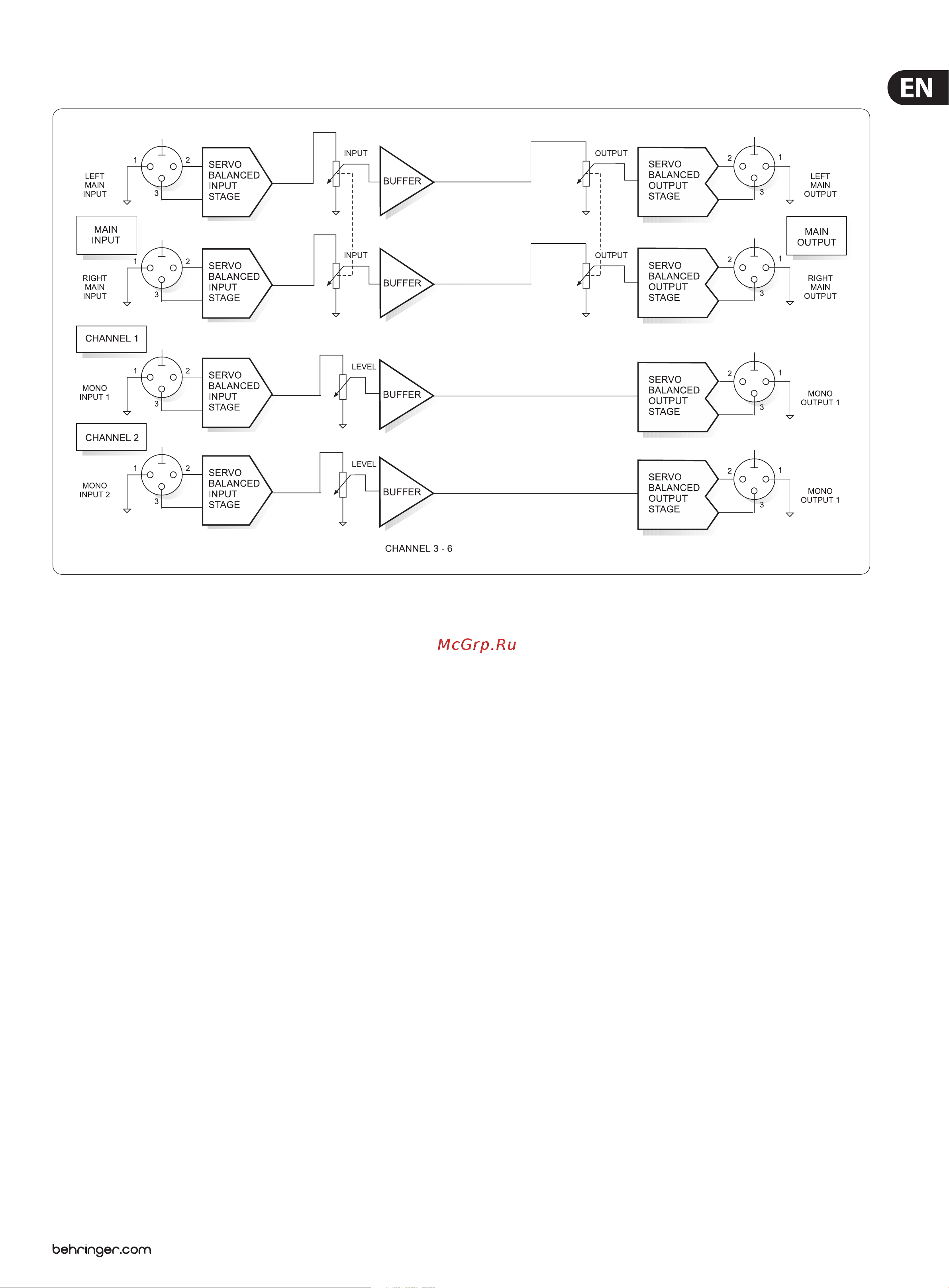

Fig. 6.3: Block diagram of the MATCHING AMPLIFIER function

The BEHRINGER ULTRALINK PRO can also be used as a multiple matching

amplier. The task of a matching amplier is to convert the level of a signal

source into another level. For instance, a cassette recorder with home recording

level (-10 dBV) can be raised to studio level (+4 dBu). Of course, this process can

also be reversed (level attenuation).

In this application, the ULTRALINK PRO is operated in MIX mode. The output

of the signal source is connected to the mono input of the ULTRALINK PRO.

Thecorresponding mono output provides the resulting output signal which can

be raised or lowered in level. Each of the six mono channels is equipped with a

LEVEL control. The control range is from -oo (full attenuation) to a maximum gain

of +15 dB.
