6. Applications

6.1 Application as a mixer

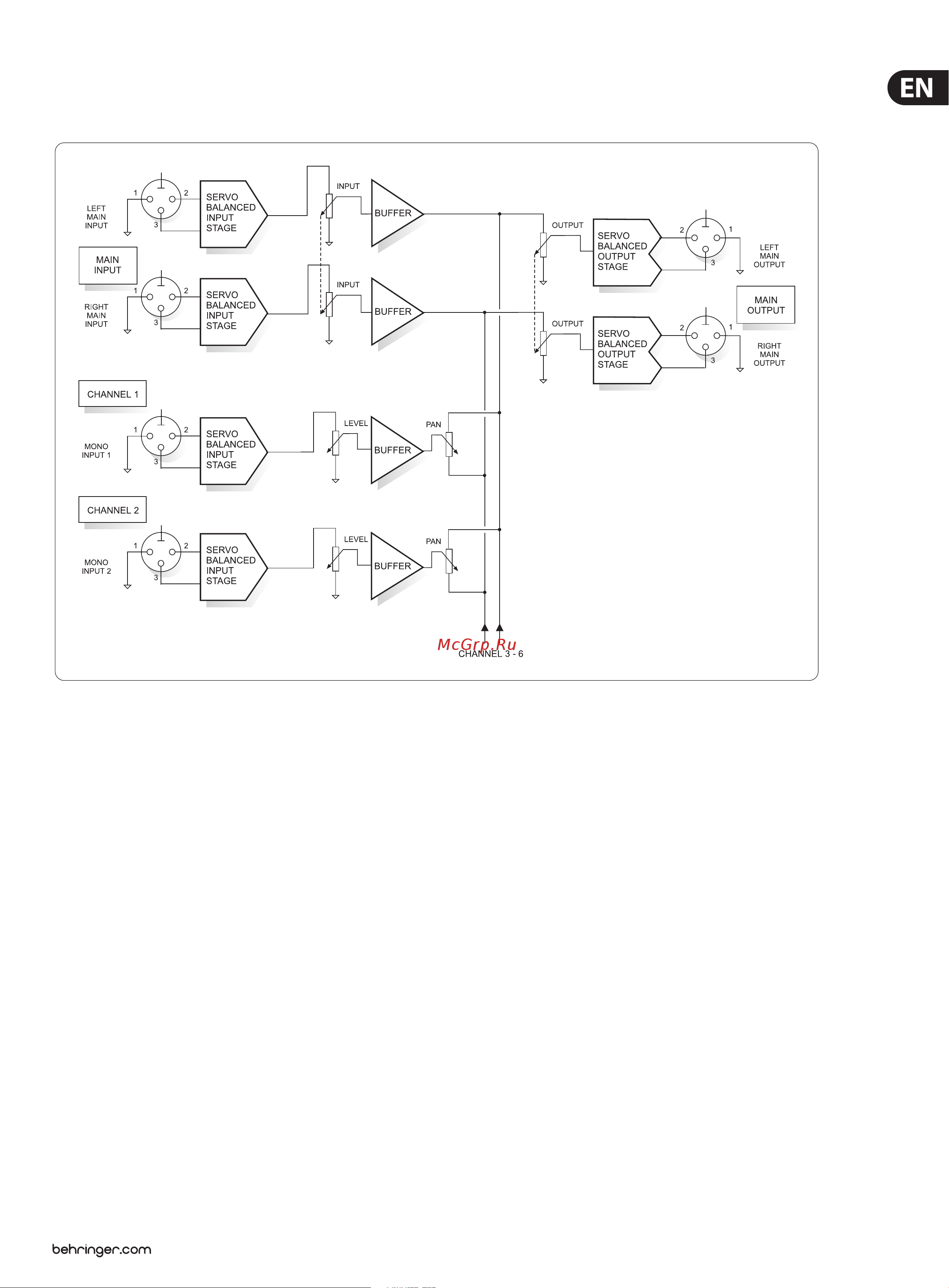

Fig. 6.1: Block diagram of the MIXER function

When the mono channels are operated in MIX mode, a maximum of 8 (6+2)

mono input signals can be summed and routed to the main outputs. In this mode,

the individual signal sources are connected to the mono inputs on the BEHRINGER

ULTRALINK PRO. Each channel has a LEVEL knob to control the amount of its

signal relative to others in the main section. Via the corresponding PAN control,

each mono input signal can be routed either to the left or right main output.

Ofcourse, any intermediate pan settings can be achieved as well. The MAIN

OUTPUT LEVEL control determines the overall level of the main output signal.

Since the two main inputs are alternatively routeable to the main outputs,

twoadditional input signals can be added using the main inputs. For this you

have to depress the MAIN LINK switch. However, as these inputs do not feature

a PAN control, the left main input will always be routed to the left main output;

similarly, the right main input can only be sent to the right main output. A total

of 8 mono channels can thus be routed to two main outputs.
