8 ULTRALINK PRO MX882 User Manual

5. Block Diagram

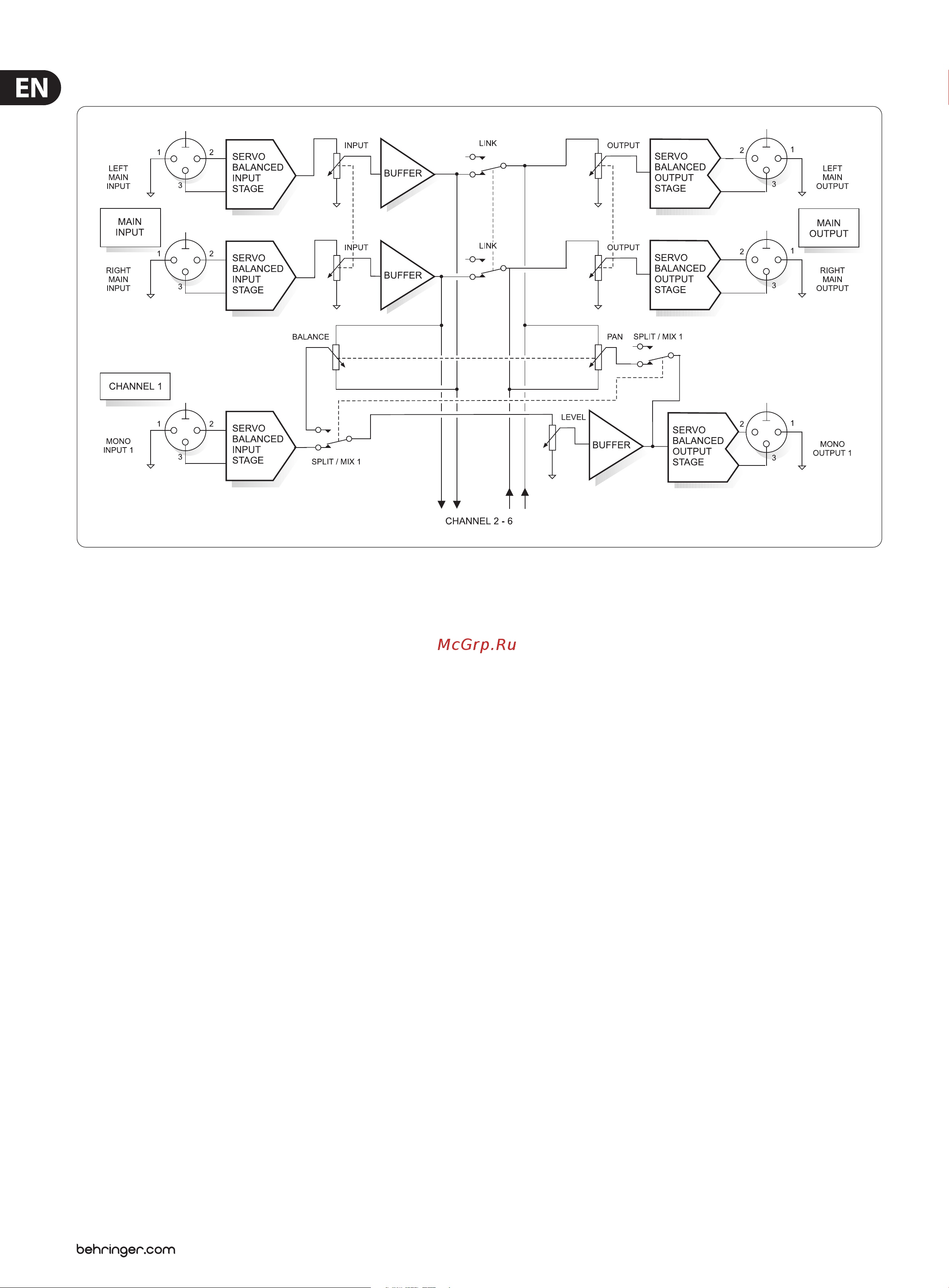

Fig. 5.1: Block diagram of the BEHRINGER ULTRALINK PRO MX882

MAIN Section

Both main inputs interface via the MAIN INPUT LEVEL control with the input

bus as well as with the main outputs. The MAIN OUTPUT LEVEL control

determines the output level of the signals which are summed by the second bus

(i.e., the output bus) and are subsequently routed to the main outputs.

SPLIT Mode

In SPLIT mode, the main input signal is sent via the BALANCE control to

the output buer ampliers of the mono channels, with the LEVEL control

determining the output level of the respective channel. The maximum gain

is+15 dB.

MIX Mode

In MIX mode, the input signals of the mono channels are “collected” via the

LEVEL and PAN controls and are routed to the output bus. In this mode, the LEVEL

control determines the amount of each channel at the output bus, while the PAN

control is responsible for the allocation of the input signal to the left and right

main outputs.

Additionally, the input signal is routed to the respective mono outputs,

i.e., the circuit acts as a matching amplier. The LEVEL control allows for level

compensation of up to +15 dB.
