Art USBMix [11/12] Specifications

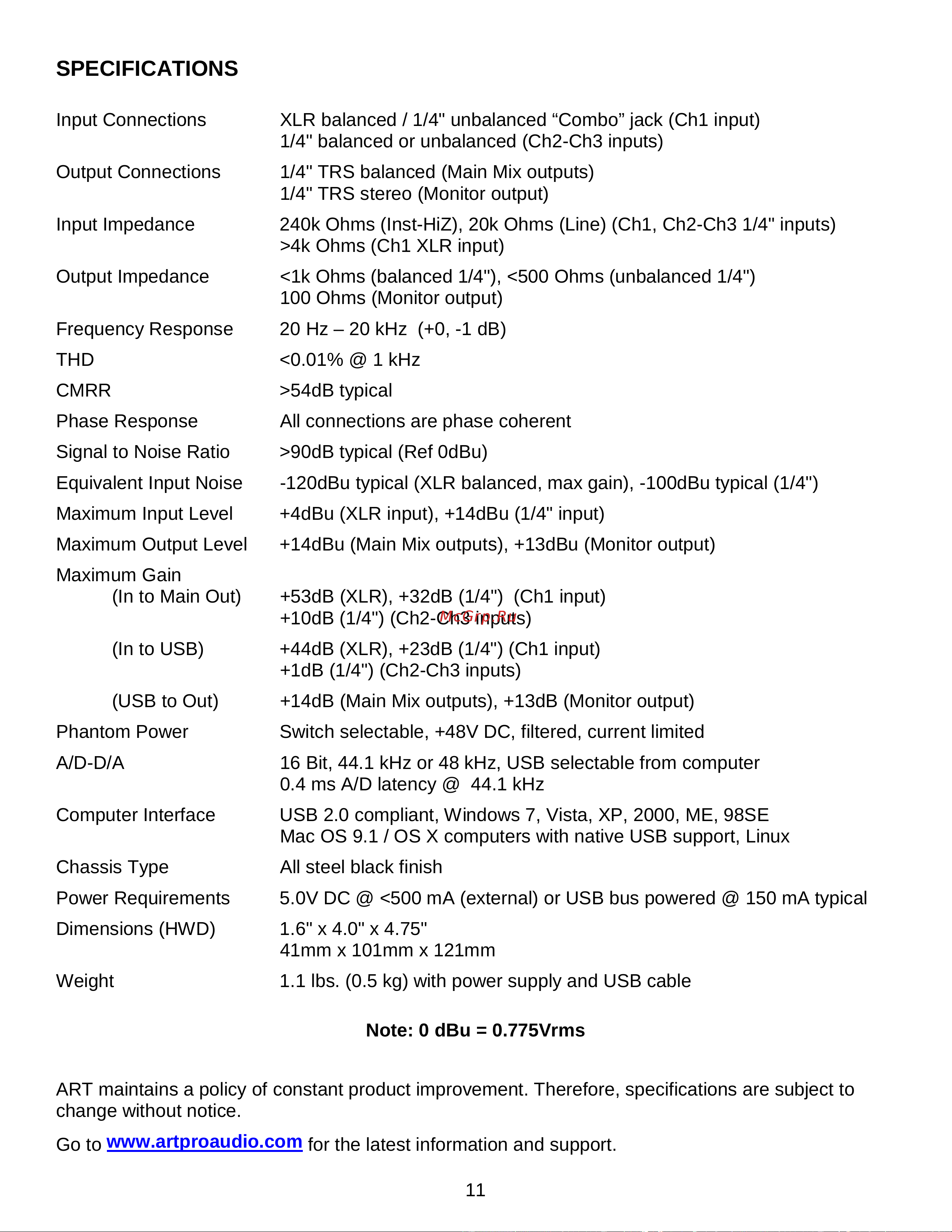

SPECIFICATIONS

Input Connections XLR balanced / 1/4" unbalanced “Combo” jack (Ch1 input)

1/4" balanced or unbalanced (Ch2-Ch3 inputs)

Output Connections 1/4" TRS balanced (Main Mix outputs)

1/4" TRS stereo (Monitor output)

Input Impedance 240k Ohms (Inst-HiZ), 20k Ohms (Line) (Ch1, Ch2-Ch3 1/4" inputs)

>4k Ohms (Ch1 XLR input)

Output Impedance <1k Ohms (balanced 1/4"), <500 Ohms (unbalanced 1/4")

100 Ohms (Monitor output)

Frequency Response 20 Hz – 20 kHz (+0, -1 dB)

THD <0.01% @ 1 kHz

CMRR >54dB typical

Phase Response All connections are phase coherent

Signal to Noise Ratio >90dB typical (Ref 0dBu)

Equivalent Input Noise -120dBu typical (XLR balanced, max gain), -100dBu typical (1/4")

Maximum Input Level +4dBu (XLR input), +14dBu (1/4" input)

Maximum Output Level +14dBu (Main Mix outputs), +13dBu (Monitor output)

Maximum Gain

(In to Main Out) +53dB (XLR), +32dB (1/4") (Ch1 input)

+10dB (1/4") (Ch2-Ch3 inputs)

(In to USB) +44dB (XLR), +23dB (1/4") (Ch1 input)

+1dB (1/4") (Ch2-Ch3 inputs)

(USB to Out) +14dB (Main Mix outputs), +13dB (Monitor output)

Phantom Power Switch selectable, +48V DC, filtered, current limited

A/D-D/A 16 Bit, 44.1 kHz or 48 kHz, USB selectable from computer

0.4 ms A/D latency @ 44.1 kHz

Computer Interface USB 2.0 compliant, Windows 7, Vista, XP, 2000, ME, 98SE

Mac OS 9.1 / OS X computers with native USB support, Linux

Chassis Type All steel black finish

Power Requirements 5.0V DC @ <500 mA (external) or USB bus powered @ 150 mA typical

Dimensions (HWD) 1.6" x 4.0" x 4.75"

41mm x 101mm x 121mm

Weight 1.1 lbs. (0.5 kg) with power supply and USB cable

Note: 0 dBu = 0.775Vrms

ART maintains a policy of constant product improvement. Therefore, specifications are subject to

change without notice.

Go to

www.artproaudio.com

for the latest information and support.
