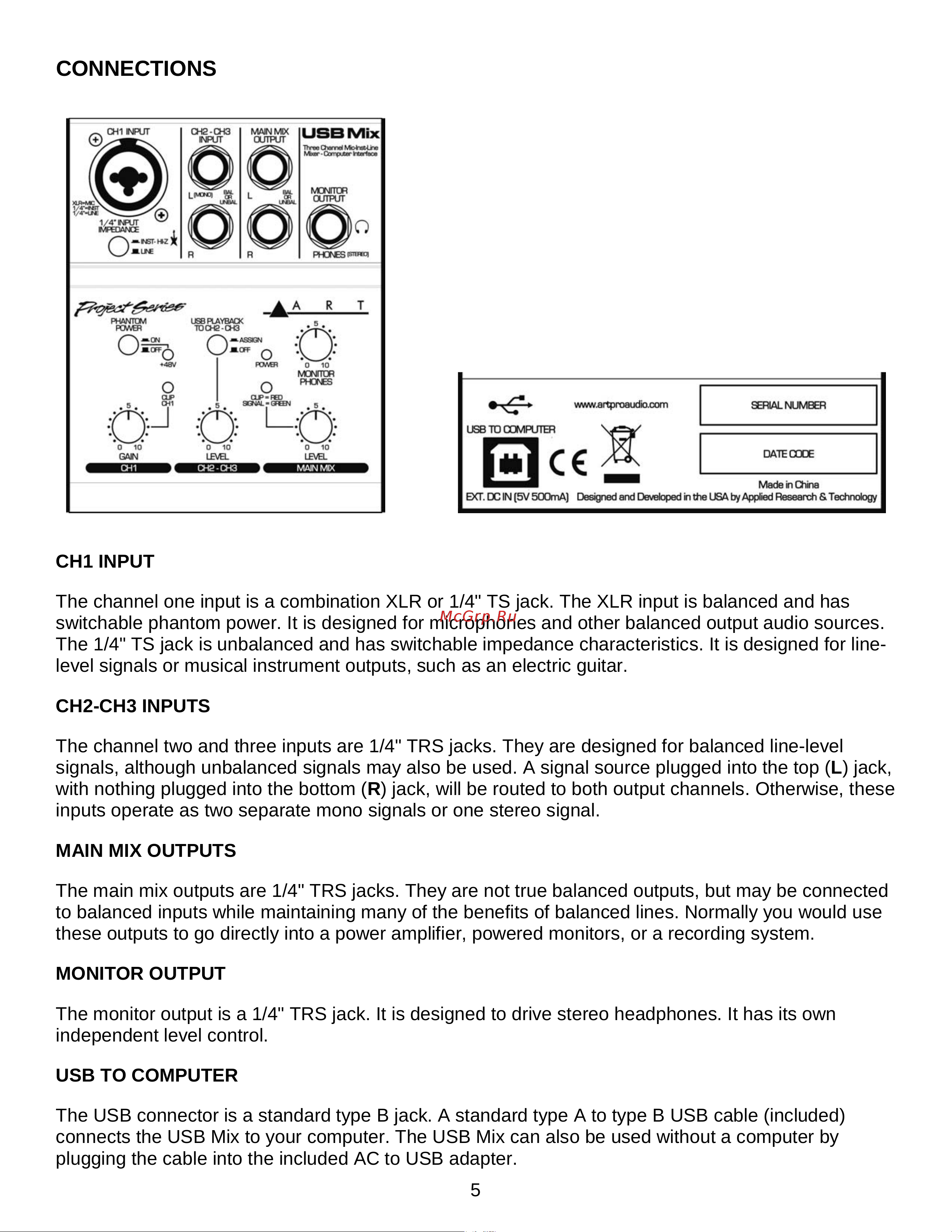

CONNECTIONS

CH1 INPUT

The channel one input is a combination XLR or 1/4" TS jack. The XLR input is balanced and has

switchable phantom power. It is designed for microphones and other balanced output audio sources.

The 1/4" TS jack is unbalanced and has switchable impedance characteristics. It is designed for line-

level signals or musical instrument outputs, such as an electric guitar.

CH2-CH3 INPUTS

The channel two and three inputs are 1/4" TRS jacks. They are designed for balanced line-level

signals, although unbalanced signals may also be used. A signal source plugged into the top (L) jack,

with nothing plugged into the bottom (R) jack, will be routed to both output channels. Otherwise, these

inputs operate as two separate mono signals or one stereo signal.

MAIN MIX OUTPUTS

The main mix outputs are 1/4" TRS jacks. They are not true balanced outputs, but may be connected

to balanced inputs while maintaining many of the benefits of balanced lines. Normally you would use

these outputs to go directly into a power amplifier, powered monitors, or a recording system.

MONITOR OUTPUT

The monitor output is a 1/4" TRS jack. It is designed to drive stereo headphones. It has its own

independent level control.

USB TO COMPUTER

The USB connector is a standard type B jack. A standard type A to type B USB cable (included)

connects the USB Mix to your computer. The USB Mix can also be used without a computer by

plugging the cable into the included AC to USB adapter.
