CHAUVET COLORado Solo Batten [4/220] Quick reference guide

QUICK REFERENCE GUIDE

COLORado Solo Batten QRG Rev. 1

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally

along existing DMX cabling. Check the DMX controller’s User Manual or with the manufacturer as not all DMX controllers

have this capability. The COLORado Solo Batten supports RDM protocol that allows feedback to make changes to menu

map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the

mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to

http://trusst.com/productcategory/truss-clamps/

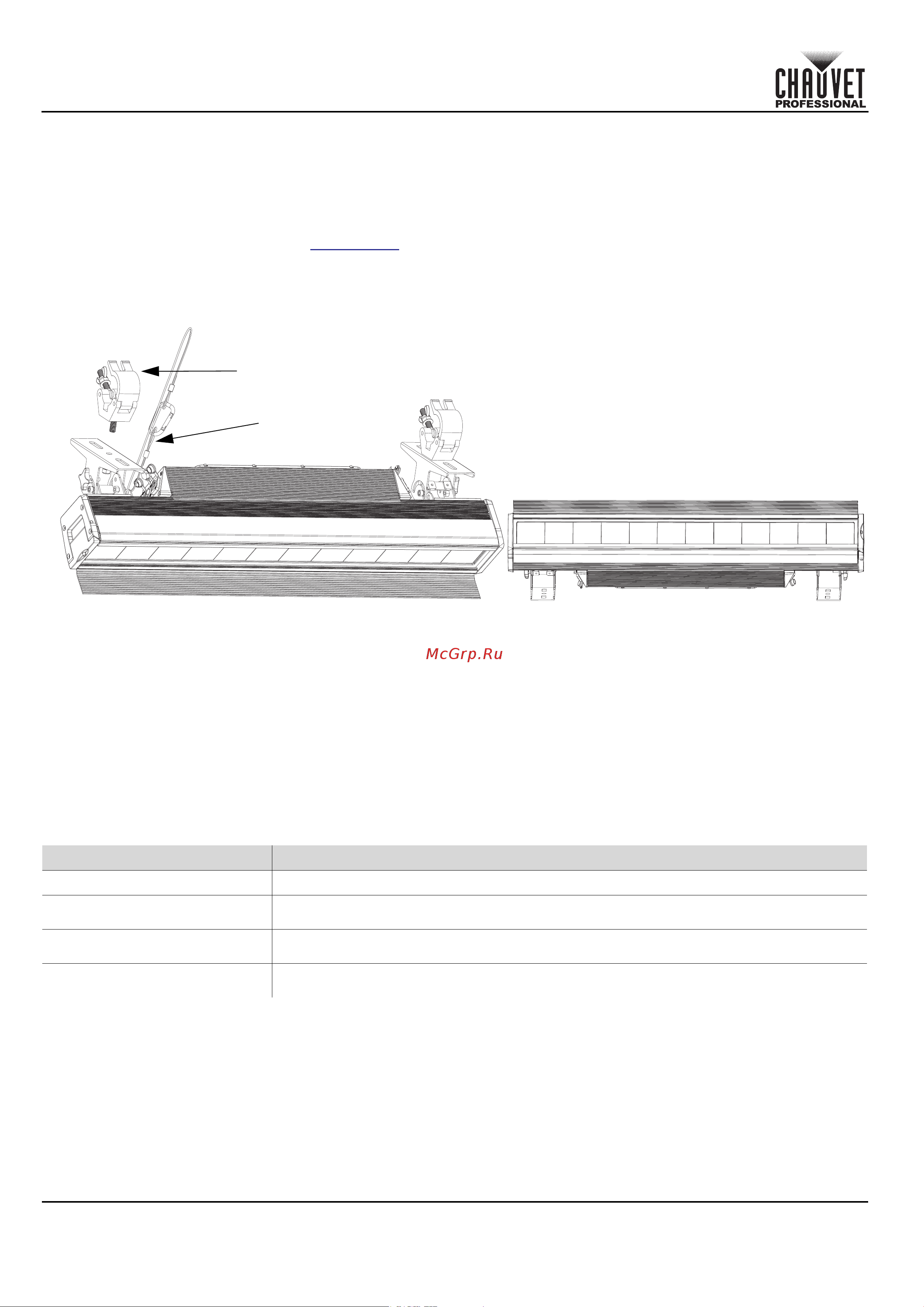

Product Mounting Diagram

Safety Cable

Mounting Clamp

Overhead Mounting

Floor Mounting

Web Server

The COLORado Solo Batten Web Server can be accessed by any computer on the same network as the product. It

allows network access to system information, settings such as control protocol and starting address, color output testing,

and the ability to change the Web Server password.

To access the Web Server:

1. Set the IP address of the network to have the same first digit as the IP address of the product.

2. Enter the IP address of the product into the URL bar of a web browser application.

3. Enter both the user name and password as admin to log in.

Control Panel Description

Button Function

<MENU> Exits from the current menu or function

<ENTER>

Enables the currently displayed menu or sets the currently selected value into the

selected function

<UP>

Navigates upwards through the menu list or increases the numeric value when in a

function

<DOWN>

Navigates downwards through the menu list or decreases the numeric value when in

a function

Passcode

After being prompted, enter the following passcode by pressing:

This passcode cannot be changed and must be used whenever prompted.
