American DJ® - www.americandj.com - TripleFlex Instruction Manual Page 6American DJ® - www.americandj.com - TripleFlex Instruction Manual Page 5

Power Supply: The American DJ® TripleFlex contains an electronic

ballast, which will auto sense the voltage when it is plugged into the

power source. With the electronic ballast you do not need to worry

about wall voltage, this unit can be plugged in anywhere. Also be sure

to only use the included I.E.C. power cable supplied with the unit.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used by most lighting and controller manufactures as a form of

communication between intelligent fixtures and controllers. A DMX

single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using

several DMX fixtures try to use the shortest cable path possible. The

order in which fixtures are connected in a DMX line does not influence

the DMX addressing. For example; a fixture assigned a DMX address

of 1 may be placed anywhere in a DMX line, at the beginning, at the

end, or anywhere in the middle. Therefore, the first fixture controlled

by the controller could be the last fixture in the chain. When a fixture

is assigned a DMX address of 1, the DMX controller knows to send

DATA assigned to address 1 to that unit, no matter where it is located

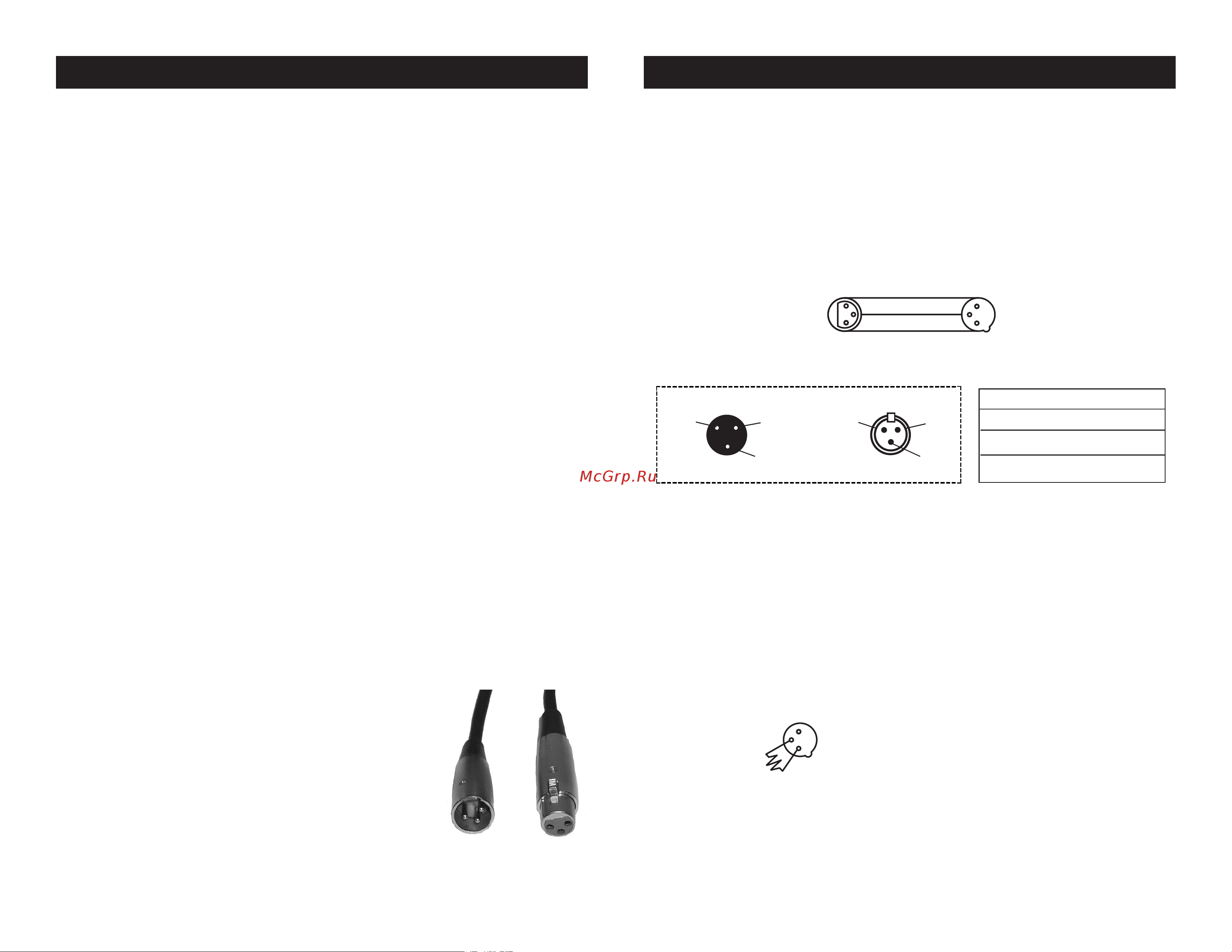

ler require a approved DMX-512 110 Ohm Data

cable for data input and data output (Figure 1). We

recommend Accu-Cable DMX cables. If you are

making your own cables, be sure to use standard

110-120 Ohm shielded cable (This cable may be

purchased at almost all professional sound and

lighting stores). Your cables should be made with a male and female

TripleFlex Set Up

Figure 1

XLR connector on either end of the cable. Also remember that DMX

TripleFlex Set Up

behavior.
