American DJ® - www.americandj.com - TripleFlex Instruction Manual Page 7 American DJ® - www.americandj.com - TripleFlex Instruction Manual Page 8

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin DMX-

512 data cables for DATA transmission in place of 3-pin. 5-pin DMX

xtures may be implemented in a 3-pin DMX line. When inserting stan-

dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,

these adaptors are readily available at most electric stores. The chart

below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Pin 5 - Do Not Use

Pin 4 - Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion

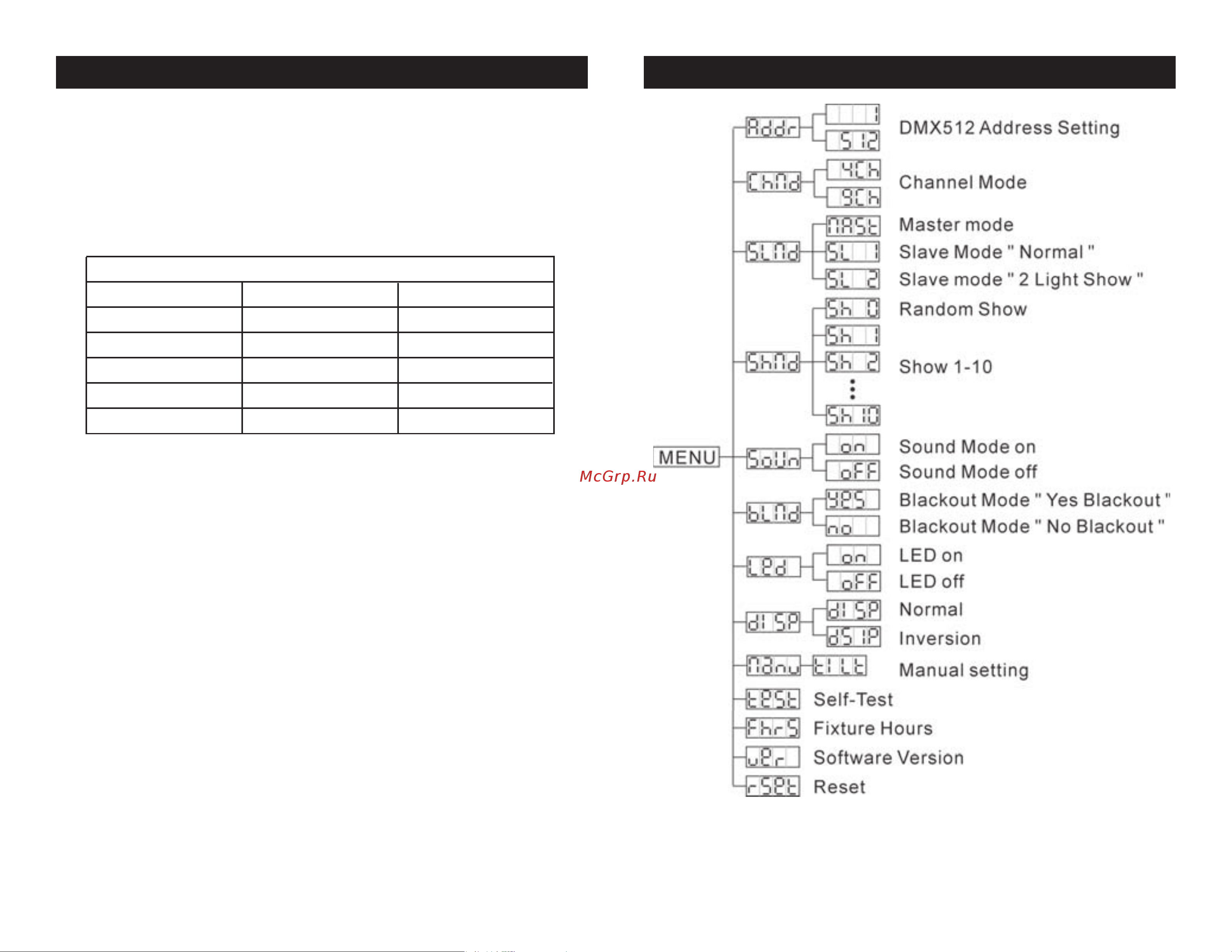

TripleFlex Set Up TripleFlex System Menu Chart
